Corning CCH-CP12-A9-P03RH Pigtailed Fiber Panel with 6 LC Duplex OS2 SM Singlemode Adapters, New Open BoxDescription:
Corning Closet Connector Housing (CCH) Panel, pigtailed, LC Connectors, Duplex, UPC, 12 F, Single-mode (OS2)
Part Number: CCH-CP12-A9-P03RHCorning closet connector housing (CCH) pigtail panels are CCH panels (CCH-CP) with factory-terminated and -tested pigtails installed. They accommodate all industry-standard connector adapter types including the LC, ST® compatible, SC, SC duplex, FC and MT-RJ, as well as the keyed LC. Depending on connector type, they are available in 6-, 8-, 12-, 16- and 24-fiber capacities. Pigtail panels provide easier routing than pigtail modules when the pigtails will be routed and spliced within the same housing. Available with both ribbon and 900 µm tight-buffered MIC® cable types, each CCH pigtail panel is factory terminated and tested. Each module is shipped assembled with adapters and connectorized pigtails installed to the customer's Number CCH-CP12-A9-P03RH
EAN Code 4056418194554
Product Type Panels and Modules
Fiber Category Single-mode (OS2)
Cable type stubbed MIC® Cable subunit
Application Data Center, Enterprise Networks
RoHS Free of hazardous substances according to RoHS 2011/65/EU
Number of Adapters per Panel 6
Fiber Count 12
Pigtail Length 3 m (9.84 ft)
Design - Adapter
Housing Color Blue
Housing Material Composite
Adapter Style Standard
Adapter Type LC duplex
Insert Ceramic
Housing Color Blue
Specifications - Connector A
Polish UPC
Ordering Information

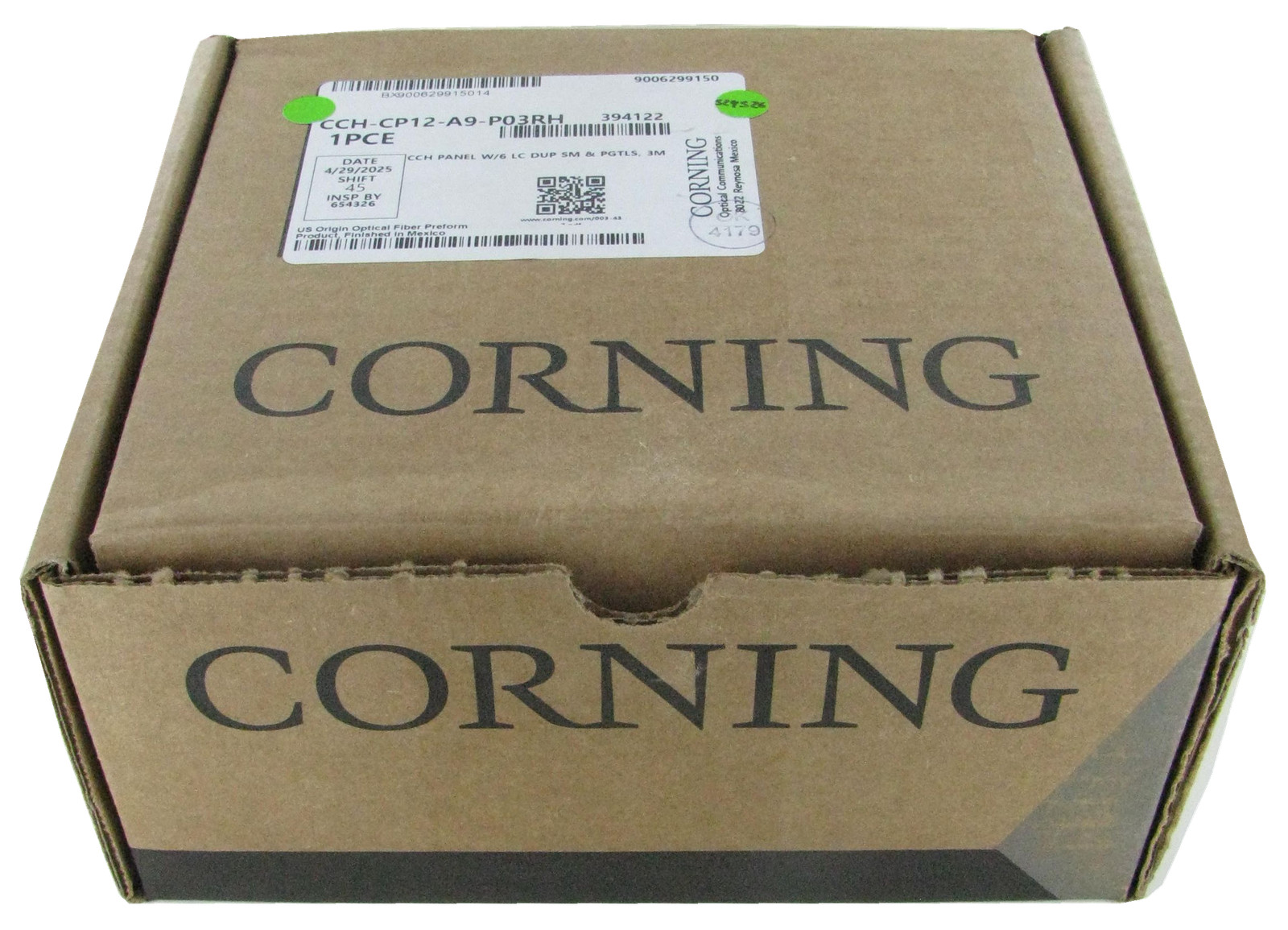

Package Contents CCH Adapter Panel with 3 m pigtail; installation guide
Units per Delivery 1/1
