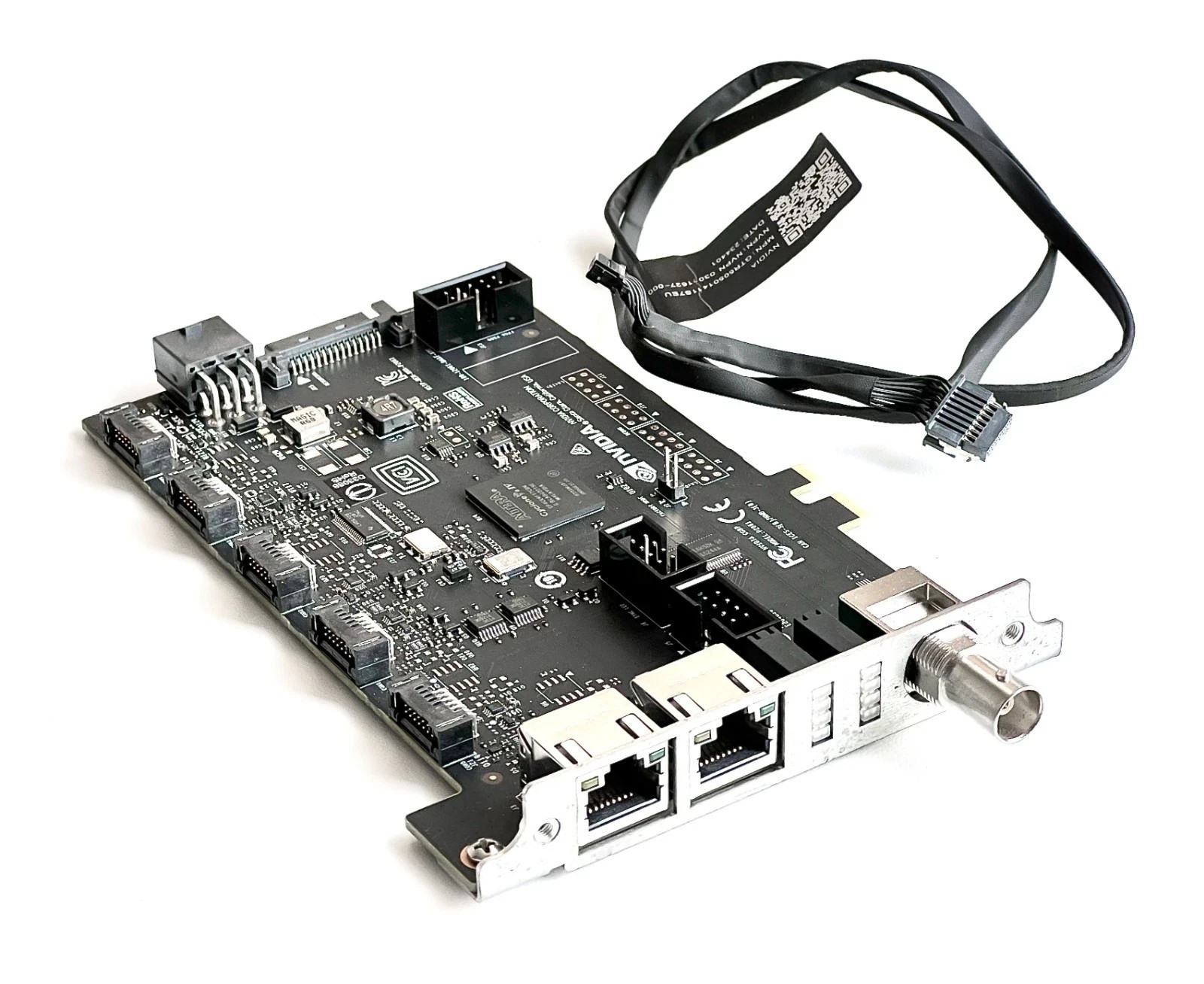

NVIDIA Quadro Sync II Framelock Add-On Card VCQPSYNC2-KIT With one connector Cable.
NVIDIA Quadro Sync II Card - Compatibility with Quadro Pascal series graphics boards and later (The board is not compatible with older GPU generation series graphics boards).
- Five on-board connections. The 5th connection is to be used as the connector to a 2nd Quadro Sync II card in a common chassis.
- Synchronization of up to 8 GPUs in a common chassis when used with a 2nd Quadro Sync II card.
- TTL Sync Generation output via the BNC connector.
- Support for up to four sync “chains” in a single system when 2 Quadro Sync II cards are used in a single system.
The NVIDIA Quadro Sync II card is designed as a daughter card for Nvidia Professional GPUs; NVIDIA Quadro Sync II card fits into a free PCI Express slot within the system. The card does not use any electrical or data connection through the PCIe bus. SYSTEM REQUIREMENTS - NVIDIA Quadro Pascal series graphics boards and later.
- The Quadro Sync II card supports up to four matching Quadro graphics processing units (GPUs). Each GPU is connected to the Quadro Sync II card via an internal flexible cable.
- Two Quadro Sync II cards are supported in a single workstation syncing up to eight Quadro GPUs. Two Quadro Sync II cards require an internal flexible cable connection between the boards.
Compatible with: - Pascal: Quadro GP100, P6000, P5000, P4000 (models with Sync connector).
- Volta: Quadro GV100.
- Turing: Quadro RTX 8000, RTX 6000, RTX 5000, RTX 4000.
- Ampere:RTX A6000, A5500, A5000, A4500, A4000;
- ADA: RTX 6000 ADA, 5000 ADA, 4500 ADA, 4000 ADA/ 4000 SFF ADA; A40, L40, etc. (where supported)
Model: Quadro Sync II HP Spare No: 920629-001 Connectors - 6 x SLI-style, internal sync
- 2 x RJ45, external sync via Cat 5
- 1 x BNC, external sync
- 1 x 6-pin, PCI power
- 1 x SATA power
Maximum number of GPUs per Sync Card 4
Maximum number of Sync Cards per System 2
Maximum number of GPUs per Sync Card 8
Maximum number of Displays or Projectors per System 32
Maximum number of Displays or Projectors with NVIDIA Quadro Mosaic 32
Stereoscopic Display Support
Projector Overlap Support
Windows Management Instrumentation (WMI) Support
Please ensure compatibility before buying.  |
|
