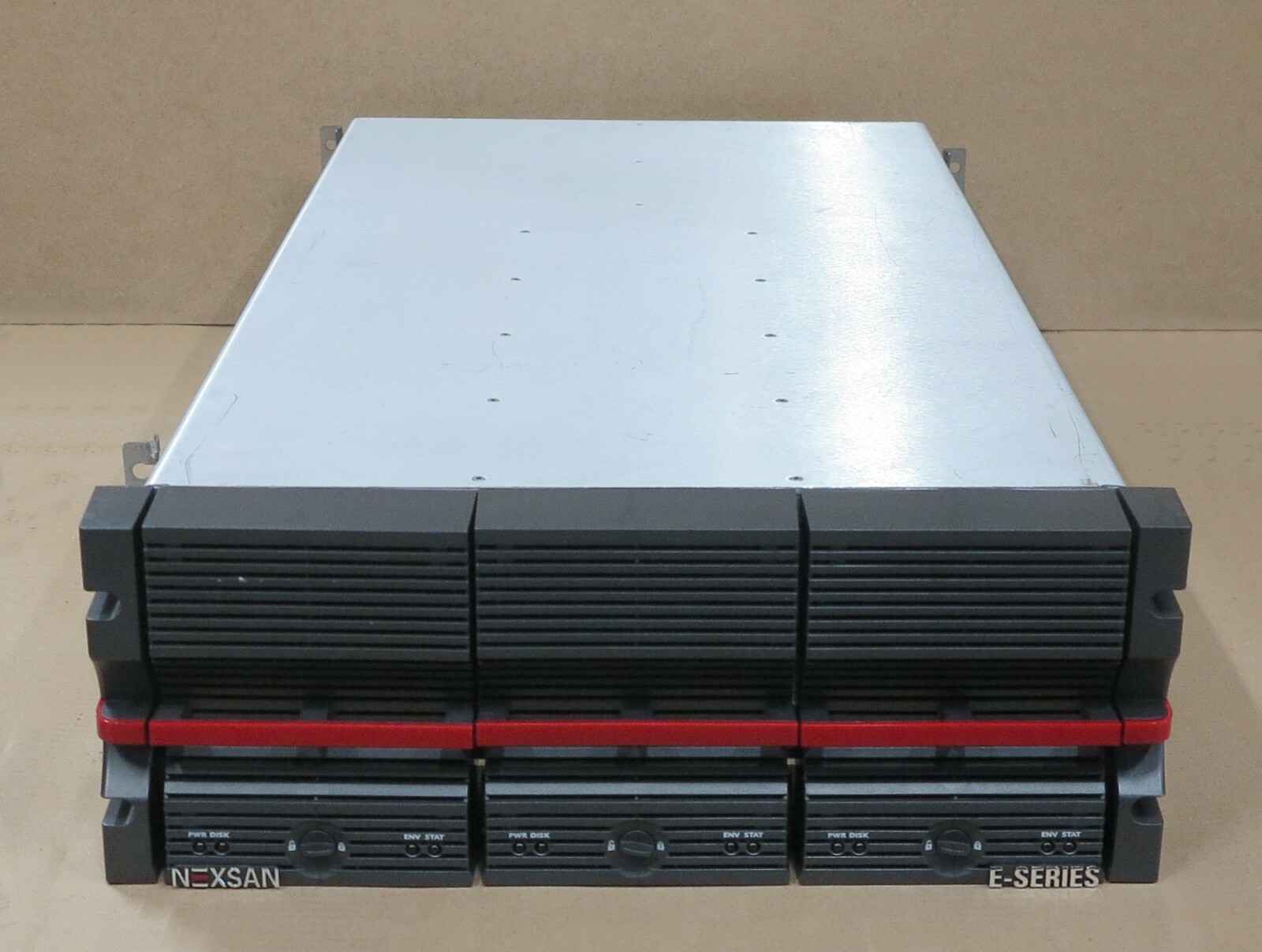

Nexsan E48VT Unified Hybrid Storage RAID Array 48-Bay 2xController E48VTNS192N/4Model: E48VTP/N:E48VTNS192N/4
In Good ConditionIn Full Working OrderTestedSupplied With Rackmount RailsSupplied With 2 Years WarrantyIncluded

• 1 xNexsan E48VT Unified Hybrid Storage RAID Array 48-Bay 2xController E48VTNS192N/4
• 48 x 3.5" Hard Drive Bays
• 2 x Nexsan E48VT RAID Controllers - P3500507
• 2 x 1600W Power Supply - BPA-R1600-120NX

OverviewThe Nexsan E-Series V is an ultra-reliable, high-density, high performance, efficient storage system that enables organizations to lower their content storage costs, maximize storage uptime, and boost data storage ROI.
The E-Series V storage arrays and expansion units offer mid-size organizations affordable enterprise-level Fibre Channel, SAS and/or iSCSI SAN storage used for a variety of capacity-optimized and performance-driven applications. For larger organizations, E-Series V is a versatile SAN or DAS solution to stay ahead of the enormous data growth, demanding workloads, and high resiliency requirements in media & entertainment, government, healthcare, HPC, financial, surveillance and service provider sectors.
The Nexsan E48VT is an ultra-reliable, high-density, high performance, efficient storage array that enables lower storage costs, maximum storage uptime, and data storage ROI boosts for your organization.

• Reliability: featuring Anti-vibration design and Cool Drive Technology.
• Availability: using Active Drawer Technology and redundant hot swappable active components.
• Density: up to 48 drives in 4U.

The Nexsan E48VT system consumes less than one-third of the power in one-third of the rack space of typical arrays, with up to 192 terabytes of capacity in just 4U and now offers 400% more memory and 50% increased CPU speed over the E-Series.
HIGHLY RESILIENT, CONTINUOUSLY AVAILABLEThe E-Series system features high-availability architecture, with multipathing support and dual redundant, hot-swappable active components. SNMP alerts or email notifications are sent to the administrator in the event of a component failure and upon a drive failure a spare drive is automatically rebuilt into the RAID set. With up to 16GB of battery-backed and flash-protected cache per controller, the E-Series solution mirrors cache between controllers in a dual controller configuration. Active Drawer Technology overcomes the challenges of competitive arrays by allowing a single drawer of drives to be pulled out and serviced easily while keeping your data – featuring Anti-vibration design and Cool Drive Technology

Availability – using Active Drawer Technology and redundant hot swappable active components

Density – up to 60 drives in 4U

High Performance – utilizes Imation’s latest multi RAID engine controller technology

Energy Efficient – delivering up to 87% reduction in power while lowering your cooling needs through the use of AutoMAID

Flexible Connectivity – connecting via SAS, Fibre Channel or iSCSI

Easy to Manage – remotely managing one or many systems within a single, intuitive GUI.

Specification

• Hard Drive Firmware: A280
• System Form Factor: 4U
• Max Number of Drives: 48
• Max Storage: 192TB
• Controllers (Max): 2
• Cache/Controller (Max): 16GB
• Drive Types: 7.2K SAS, 10K SAS, 15K SAS, SSD
• RAID Levels: 0, 1, 1+0, 4, 5, 6
• Network Protocols:
• 1GbE/10GbE iSCSI
• 8Gb/16Gb FC
• 6Gb SAS
• 16Gb FC
• Dimensions – Height: 6.93 in 17.6 cm
• Dimensions – Depth: 33.46 in 85.0 cm
• Dimensions – Depth w/Front Bezel: 35.63 in 90.5 cm
• Dimensions – Depth w/ Front Bezel and rear handles: 36.06 in 91.6 cm
• Maximum Weight w/drives & rails: 201.1 lbs 91.2 kg
• Operating Temperature Range: 5°C to 35°C 41°F to 95°F
• Operating Humidity Range: 20% to 80% non-condensing
• Operating Altitude: 0 to 2,133 m 0 to 7,000 ft
• Non-Operational Altitude: 0 to 12,192 m 0 to 40,000 ft

VAT @ 20% INCLUDED IN PRICE - VAT INVOICE PROVIDED£4000 excluding VAT
VAT IS NOT PAYABLE BY PURCHASERS OUTSIDE OF THE UKTH 257959 dup drvs / cntrl / array
