Product description

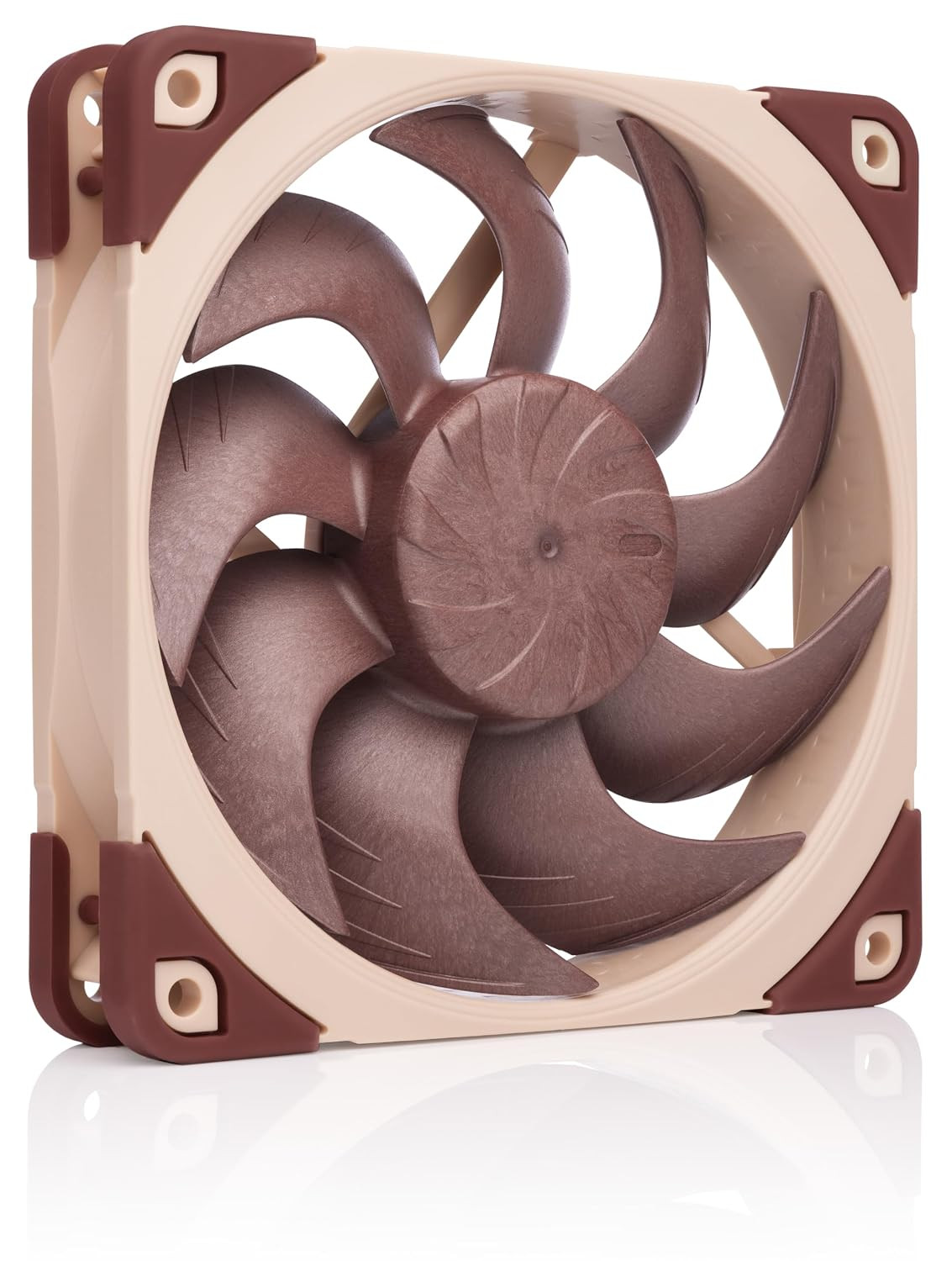

The NF-A12x25 G2 is the second-generation, further improved successor to the groundbreaking NF-A12x25 and 120mm sister model to the award-winning 140mm NF-A14x25 G2: Like its much-acclaimed predecessor, it is made from Sterrox LCP and features an extremely tight tip-clearance of only 0.5mm. At the same time, its further optimised Progressive Bend impeller with winglets, Flow Acceleration Channels and the new Centrifugal Turbulator Hub enable the G2 version to surpass the original NF-A12x25’s performance, making it Noctua’s undisputed new flagship in the 120mm range.
Just like its predecessor and the 140mm version, the NF-A12x25 G2 is a true all-rounder that yields superb results in all types of usage, regardless of whether it’s in low-impedance, airflow-oriented applications such as case cooling, or high-impedance, static pressure demanding scenarios such as on heatsinks and water cooling radiators.
For application-specific optimisation, the NF-A12x25 G2’s AAO (Advanced Acoustic Optimisation) frame can be combined with the included NA-AVG1 anti-vibration gasket for a tighter seal on radiators or the optional NA-IS1-12 inlet side spacer frame, which can help to achieve superior suction acoustics and flow rates in challenging “pull" configurations.
The 4-pin PWM version supports fully automatic speed control via PWM fan headers and comes with a Low-Noise Adaptor to reduce the maximum speed from 1800 to 1500rpm. Its ultra-low-loss etaPERF motor with Smooth Commutation Drive 2 technology doesn’t only provide unprecedented energy efficiency and running smoothness, but thanks to the new SupraTorque feature, it can also leverage extra torque headroom to keep the fan at its desired speed when working against back pressure, thereby ensuring even better performance on heatsinks and radiators.
Topped off with Noctua’s reference-class SSO2 bearing, a rich bundle of accessories, the NF-A12x25 G2 is a premium-quality product through and through. Its superior performance, comprehensive feature set, cutting-edge construction and state-of-the-art materials set a new standard within Noctua’s portfolio and make it an elite choice for the most discerning demands.
Progressive-Bend impeller
The NF-A12x25 G2 features a unique Progressive-Bend impeller with Flow Acceleration Channels and winglets. Its nine blades are swept backwards close to the hub and progressively bent forward further out. Working in tandem with the Centrifugal Turbulator hub, this design not only helps to push more air towards the outer blade areas where efficiency is higher but also assures maximum lift and near uniform loading across the entire blade span.
Centrifugal Turbulator hub
Acting as a turbulator, the new Centrifugal Turbulator hub design improves flow attachment in the hub region. At the same time, its centrifugal driving motion pushes air outwards from the hub area where efficiency is low due to the slow rotational speed towards the outer, high-efficiency zones of the blades, thereby increasing overall efficiency by optimising fluid distribution across the impeller area.
SSO2 Bearing
The NF-A12x25 G2 features the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.
Ultra-tight tip clearance
The NF-A12x25 G2 has an extremely tight tip clearance (distance between the blade tips and the inside of the frame) of only 0.5mm. This highly ambitious design helps the NF-A12x25 G2 to work more efficiently against back pressure, such as on heatsinks or radiators, by reducing leak flows through the gap between impeller and frame.
Scope of delivery
- NA-RC7 Low-Noise Adaptor (L.N.A.)
- NA-YC1 4-pin PWM splitter cable
- NA-EC1 30cm extension cable
- 4x NA-AV2 anti-vibration mounts
- NA-AVG1 anti-vibration gasket for water cooling radiators
- Fan screws
Highly optimised P/Q curve for all applications
The NF-A12x25 G2’s sophisticated aerodynamic design allows for a pressure to airflow curve that is extremely strong in the critical mid-section. This means that the NF-A12x25 G2 is a true jack-of-all-trades with excellent performance in static pressure demanding & airflow demanding applications.
Add to Cart Add to Cart Add to Cart Customer Reviews 4.9 out of 5 stars 444 4.8 out of 5 stars 53 4.8 out of 5 stars 404 Price $34.95$34.95 $34.95$34.95 $64.95$64.95 Connector 4-pin PWM 4-pin PWM 4-pin PWM Voltage 12 V 12 V 12 V RPM 1800 RPM 1100 RPM 1800 RPM RPM with L.N.A. 1500 RPM 850 RPM 1500 RPM Acoustical Noise 22.5 dB(A) 11.8 dB(A) 22.5 dB(A) Acoustical Noise with L.N.A. 18.1 dB(A) 7.8 dB(A) 18.1 dB(A) Size 120x120x25 120x120x25 120x120x25 Colour Brown & Beige Brown & Beige Brown & Beige Quantity x1 x1 x2
- Next-gen 120x25mm design for unprecedented quiet cooling performance in both high airflow and high static pressure applications: ideal as a PC case fan, on CPU coolers and water cooling radiators!
- State-of-the-art engineering (Progressive Bend impeller with winglets and Centrifugal Turbulator, Flow Acceleration Channels, AAO frame) and construction (Sterrox LCP, ultra-tight tip clearance)
- 4-pin PWM version for automatic speed control via 4-pin PWM motherboard fan headers, 360-1800rpm speed range (near-silent at idle, powerful under load), fan stops at 0% PWM (semi-passive option)
- Includes anti-vibration mounts, 12cm anti-vibration gasket for tighter seal on radiators, fan screws, Low-Noise Adaptor, extension cable and splitter cable for running two PWM fans on one Header
- Trusted Noctua quality with premium-grade SSO2 bearing (MTTF > 150,000 h), safety certifications from UL and TÜV, protected against reverse polarity, over voltage and over current (short-circuits)
