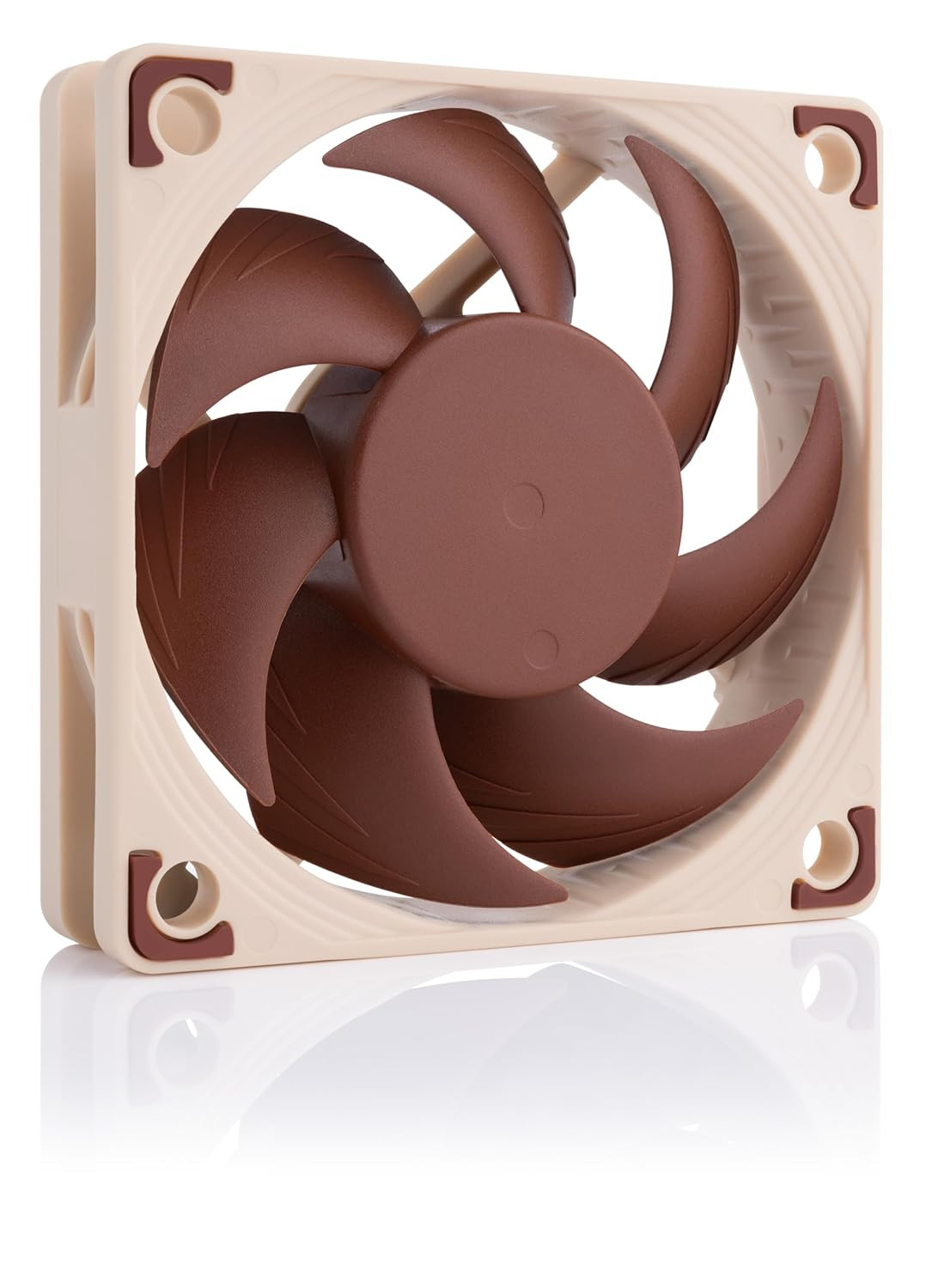

Nf-A6X15 5V PWM, High-Performance Quiet Fan 60Mm | High Airflow Low Noise 5V 15Mm Slim Fan, for Ventilation and Electronics Cooling, USB-A Power Adaptor, 3500Rpm 4-Pin PWMDescription Power Connector Type 4-Pin Voltage 5 volts Cooling Method Air Compatible Devices Desktop Noise Level 19.8 db Maximum Rotational Speed 3500 rpm Item Dimensions L x W x H 2.36"L x 2.36"W x 0.59"H Material Type Fibre-glass reinforced PBT Global Trade Identification Number 09010018100174 Number of Items 1 Unit Count 1 Count Item Weight 0.11 kg Model NF-A6x15 5V PWM Part Number NF-A6x15 5V PWM Product Dimensions 2.36"L x 2.36"W x 0.59"H Material Fibre-glass reinforced PBT

Product description

Featuring advanced aerodynamic design measures such as Flow Acceleration Channels and an AAO frame, the NF-A6x15 5V PWM is a PWM-enabled 5V variant of Noctua’s highly optimised, premium-quality quiet 60x15mm fan. The custom-designed NE-FD3 5V PWM IC that integrates Smooth Commutation Drive technology and Noctua’s reference-class SSO2 bearing ensure superb running smoothness and excellent long-term stability. Topped off with modular cabling and the OmniJoin Adaptor Set, the NF-A6x15 5V PWM is a premium choice for demanding 5V applications that require PWM control. Please note: Being a 5V fan, the NF-A6x15 5V PWM cannot be run at 12V and will be damaged when used with typical 12V power sources such as PC motherboard fan headers.

5V PWM version

Many devices, such as 3D printers and network or storage solutions, use 5 volt 60mm fans with PWM speed control. With the same operating voltage, PWM support and the included OmniJoin adaptor set that makes it compatible with proprietary fan headers, the NF-A6x15 5V PWM is ideal for replacing noisy or broken 5V 60mm fans with PWM.

Integrated anti-vibration pads

Integrated anti-vibration pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard screws and most other mounting mechanisms.

SSO2 bearing

The NF-A6x15 features the further optimised second generation of Noctua’s renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.

Flow Acceleration Channels

The NF-A6x15 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise.

Scope of Delivery

• 4x NA-AV2 anti-vibration mounts
• NA-EC1 30cm extension cable
• USB power adaptor cable
• OmniJoin adaptor set
• Fan screws

Custom-designed PWM IC with SCD

Supporting fully automatic PWM speed control, the NF-A6x15 5V PWM uses Noctua’s custom-designed NE-FD3 5V PWM IC that integrates Smooth Commutation Drive (SCD) technology. By providing smoother torque impulses, SCD suppresses PWM switching noises and thus makes the fan quieter at low speeds.

Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.9 out of 5 stars 277 4.8 out of 5 stars 202 4.8 out of 5 stars 146 4.6 out of 5 stars 58 Price $16.95$16.95 $16.95$16.95 $16.95$16.95 $16.95$16.95 Connector 4-pin PWM 3-pin 4-pin PWM 3-pin Voltage 12V 12V 5V 5V RPM 3500 RPM 3500 RPM 3500 RPM 3500 RPM RPM with L.N.A. 3050 RPM 3050 RPM - no data - no data RPM with U.L.N.A. - no data 2250 RPM - no data - no data Acoustical Noise 19,8 dB(A) 19,8 dB(A) 19,8 dB(A) 19,8 dB(A) Acoustical Noise with L.N.A. 16,5 dB(A) 16,5 dB(A) - no data - no data Acoustical Noise with U.L.N.A. - no data 7,8 dB(A) - no data - no data Size 60x60x15 mm 60x60x15 mm 60x60x15 mm 60x60x15 mm

• Premium quiet fan, 60x60x15 mm, 5V, 4-pin PWM, max. 3500 RPM, max. 19.8 dB(A), >150,000 h MTTF
• Award-winning 60x15mm A-series fan with Flow Acceleration Channels and Advanced Acoustic Optimisation frame for superior quiet cooling performance
• 5V 4-pin PWM version with polarity protection for 5V applications with PWM speed control
• USB power adaptor cable allows the fan to run on devices with USB host ports, power banks or USB power supplies such as those used by smartphones
• Includes anti-vibration mounts, fan screws, extension cable, y-cable and OmniJoin adaptor set for connection to proprietary fan headers
