Product description

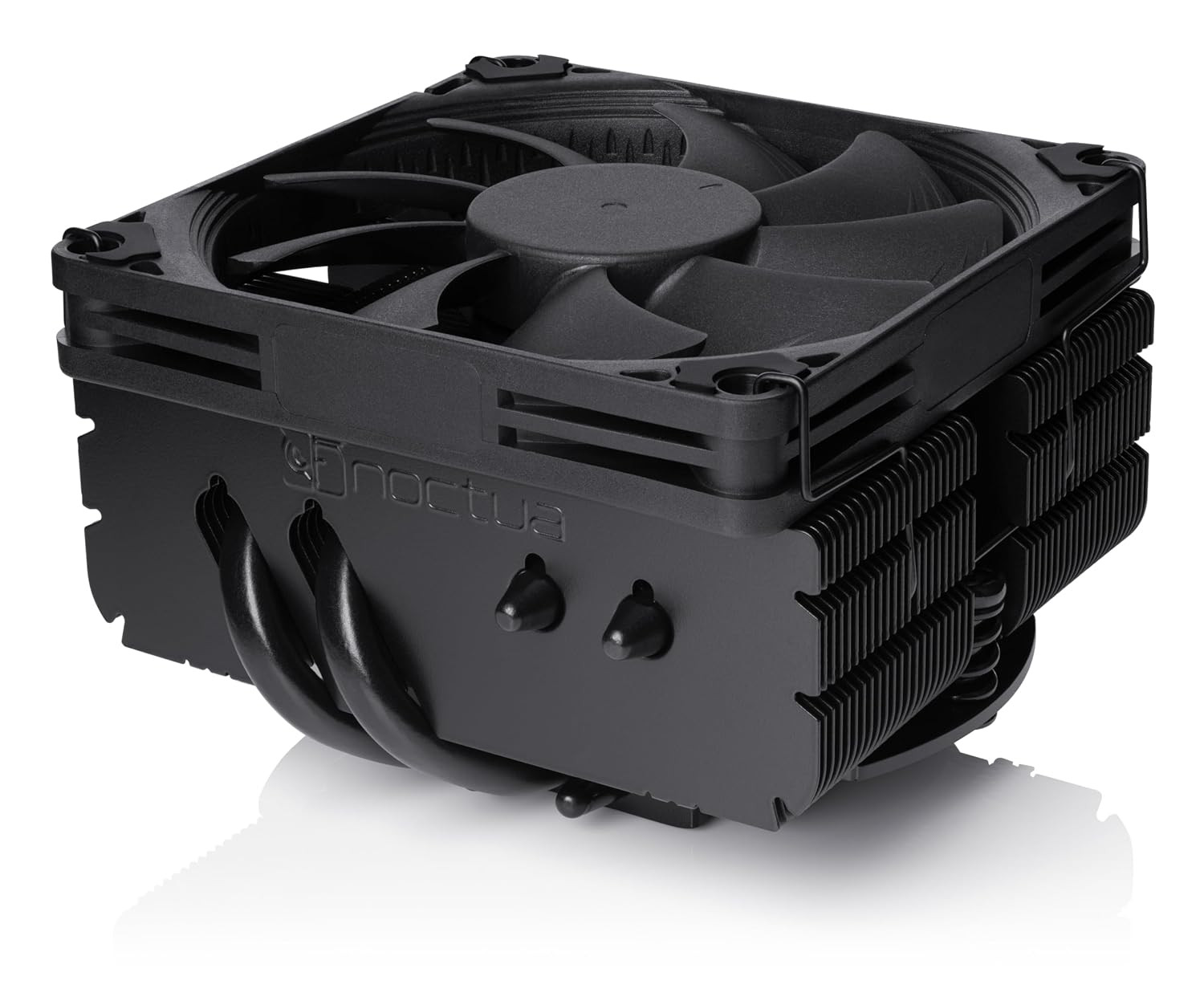

The NH-L9x65 chromax.black is an all-black version of the award-winning NH-L9x65 low-profile cooler, which covers a middle ground between the larger NH-L12 series and the ultra-compact NH-L9i and NH-L9a series. With 65 instead of 37mm height and four instead of two heatpipes, the NH-L9x65 is more powerful than its smaller siblings yet retains the NH-L9i’s 95x95mm footprint, which not only ensures 100% RAM and PCIe compatibility on current motherboards but also makes the cooler more convenient to work with as it doesn’t overhang near-socket connectors. Thanks to the highly optimised NF-A9x14 premium fan that supports fully automatic speed control via PWM, the NH-L9x65 runs remarkably quiet. Topped off with the professional SecuFirm2 multi-socket mounting system for Intel and AMD and Noctua’s renowned NT-H1 thermal compound, the NH-L9x65 fuses everything users have come to expect from Noctua’s larger coolers into a compact premium package for space restricted systems.
65mm low profile
Due to its compact heatsink and the 14mm thin NF-A9x14 low profile fan, the NH-L9x65 stands only 65mm tall (the same height as low-profile expansion cards), which makes it ideal for use in compact HTPCs or Small Form Factor cases that offer limited clearance for CPU coolers.
100% RAM compatibility
With its compact 95x95mm footprint, the NH-L9x65 does not overhang the RAM slots on Intel LGA1851/LGA1700/ LGA1200/LGA115x and AMD AM5/AM4 based motherboards, which ensures easy access to the modules and 100% compatibility with DIMMs that feature tall heat-spreaders or RGB lighting.
100% compatibility with PCIe cards on mini-ITX
Many mini-ITX motherboards have the PCIe slot sitting close to the socket zone. While larger coolers that exceed this zone are likely to block the PCIe slot, the 95x95mm sized NH-L9x65 provides full compatibility with PCIe cards, be it on ATX, microATX or ITX.
NT-H1 thermal compound
Noctua’s much-acclaimed NT-H1 is a pro-grade TIM solution that provides minimum thermal resistance, excellent ease of use and outstanding reliability. Chosen again and again by overclockers and enthusiast users worldwide, it has established itself as a benchmark for premium-quality thermal compounds.
Measurements
- Height (without fan): 51mm
- Width (without fan): 95mm
- Depth (without fan): 95mm
- Height (with fan): 65mm
- Width (with fan): 95mm
- Depth (with fan): 95mm
- Weight (without fan): 340g
- Weight (with fan/s): 413g
Materials
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
Cooler Specifications Please Note
The NH-L9x65 is a highly compact, quiet low-profile cooler designed for use in Small Form Factor cases and mini-ITX environments. While it provides first-rate performance in its class, it is not suitable for overclocking and/or CPUs that create high heat loads.
Scope of delivery
- Black NH-L9x65 heatsink
- NF-A9x14 HS-PWM chromax.black premium fan
- NA-RC7 Low-Noise Adaptor (L.N.A)
- NT-H1 high-grade thermal compound
- Black SecuFirm2 mounting kit
- Noctua metal case-badge
chromax.black design
The NH-L9x65 chromax.black is black from head to toe: featuring a black coated heatsink, a black fan with black anti-vibration pads, black fan clips and black mounting parts, it’s right at home in all-black builds and easy to integrate with other colour schemes.
Add to Cart Add to Cart Customer Reviews 4.7 out of 5 stars 2,957 4.6 out of 5 stars 402 Price $69.95$69.95 $79.95$79.95 LGA1851, LGA1700 ✓ ✓ LGA1200, LGA115x (LGA1150, LGA1151, LGA1155, LGA1156) ✓ ✓ LGA20xx Square ILM with NM-i20xx with NM-i20xx LGA20xx Narrow ILM X X LGA4189 X X LGA4677 X X AM5 ✓ ✓ AM4 ✓ ✓ TR4, SP3, sTRX4, sWRX8 X X sTR5, SP6 X X
- Award-winning, compact low-profile cooler with only 65mm total height – ideal for HTPCs, ITX and Small Form Factor (SFF) builds, now available in an all-black design!
- 95x95mm footprint lets the cooler stay clear of the RAM or PCIe slots on current motherboards and guarantees easy access to near-socket connectors for hassle-free assembly and maintenance
- Highly optimised NF-A9x14 slim 92mm fan with PWM support and Low-Noise Adaptor for automatic speed control and ultra-quiet operation
- Includes high-end NT-H1 thermal paste and SecuFirm2 mounting system for easy installation on Intel LGA1851, LGA1700, LGA1200, LGA115x and AMD AM5 & AM4 (offset mounting option for best efficiency)
- Recommended for CPUs with low to moderate heat dissipation (see CPU compatibility list), e.g. Intel 285K, 265K, 245K or AMD Ryzen 7950X3D, 7900X3D, 7800X3D, 7700 etc.
