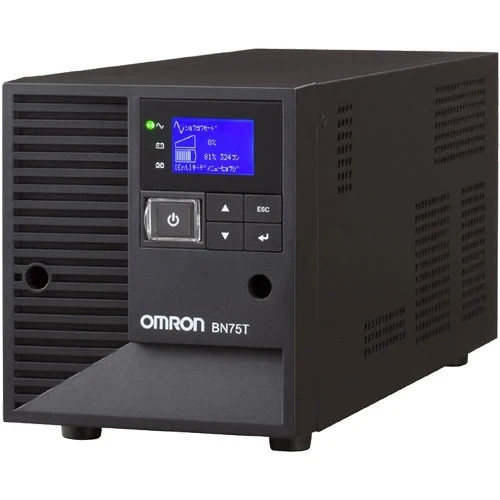

OMRON BN75T — Line-Interactive UPS

• Model: BN75T
• Type: Tower, Line-Interactive UPS
• Capacity: 750 VA / 680 W
• Input: AC 100 V
• Input frequency: 50/60 Hz ±4 Hz
• Input plug: NEMA 5-15P
• Output: AC 100 V
• Output waveform: Pure sine wave
• Transfer time: ≤10 ms
• Output outlets: 6 × NEMA 5-15R
• Battery: Sealed lead-acid
• Typical backup: approximately 4 minutes at 680 W
• Battery recharge: approximately 4 hours
• Communications: RS-232C (DB9) + USB
• Dimensions: 140 × 359 × 167 mm
• Weight: approximately 11 kg / 24.3 lb
• Form factor: Tower
• AVR: Yes — automatic voltage regulation
• LCD display: Yes

Features

• 750 VA / 680 W rated output capacity
• Line-interactive UPS technology
• Pure sine-wave output during both commercial power and battery operation
• Protects connected equipment from power outages, voltage fluctuations, instantaneous voltage drops, and surge voltage
• Automatic Voltage Regulation (AVR) adjusts the output voltage when input voltage is low or high
• Transfers to battery operation in 10 ms or less when abnormal power conditions are detected
• Built-in LCD display for UPS operating status and information
• 6 × NEMA 5-15R backup power outlets
• NEMA 5-15P input plug
• Built-in 24 VDC sealed lead-acid battery system
• USB and RS-232C communication interfaces
• Remote ON/OFF function
• Optional SNMP/Web card support for network monitoring
• Built-in input overcurrent protection
• Tower-style design for desktop/server-room installation
• Compatible with UPS monitoring and automatic shutdown software
• No external battery expansion required/supported for this model

Driving methodLine interactive methodhousingStationary typeRated input voltageAC100VRated input frequency50/60Hz±4HzNumber of input phasesSingle-phase 2-wireInput outlet shape3P (NO 5-15P)Rated output voltageAC90±3 to 114V±3V (input voltage sensitivity standard setting) / AC84±3 to 114V±3V (input voltage sensitivity low sensitivity setting) / AC90±3 to 110V±3V (input voltage sensitivity high sensitivity setting)Rated output frequencySynchronized to input frequencyNumber of output phasesSingle-phase 2-wireOutput outlet shapeNO 5-15RNumber of output outlets (backup)6Number of output outlets (through)0Power consumption (normal/maximum)15W/50WMaximum output capacity (W)680WMaximum output capacity (VA)750VABackup time (at full load)4 pointsOutput voltage during battery operation100VOutput frequency during battery operation50/60Hz±0.1HzOutput waveform during battery operationsine waveSwitch-to-battery timeWithin 10msec.battery typeSealed lead battery (DC12V/9Ah)number of batteries1charging timeFull charge 8 hours, 90% charge 4 hoursPower management software (attached software)Standard attachment (PowerAct Pro, UPS service driver, UPS Power Manager)Power management software compatible OSWindows/Linux/Mac/VMSurge functionYes Power supply noise/lightning surge protectionSafety SpecificationsUL1778/CE/RoHS/VCCI Class ABody size (H×W×D)140(W)×359(D)×167(H)mmbody weight11kgpacking weight13Kgreplacement batteryBNB75T ×1Legal related confirmation date20140613Technical SpecificationsSpecificationOMRON BN75TBrandOMRONModelBN75TSeriesBN SeriesUPS Capacity750 VARated Output Power680 WInput VoltageAC 100 VInput Frequency50/60 Hz ±4 HzInput PlugNEMA 5-15PMaximum Input Current12 AOutput VoltageAC 100 V ±6% in battery modeOutput Frequency50/60 Hz ±0.1 Hz in battery modeOutput WaveformPure Sine WaveOutput Outlets6 × NEMA 5-15RTransfer Time≤10 msBattery TypeSealed Lead-AcidInternal Battery Voltage24 VDCMaximum Load Backup TimeApprox. 4 minutes at 680 WCommunicationUSB / RS-232CRemote ControlRemote ON/OFFNetwork ManagementOptional SNMP/Web cardCoolingNatural air coolingOperating Temperature0–40°COperating Humidity25–85% RH, non-condensingDimensions (W × D × H)Approx. 140 × 359 × 167 mmWeightApprox. 11 kg / 24.3 lbBattery Life ExpectancyApprox. 5 years under specified conditions
