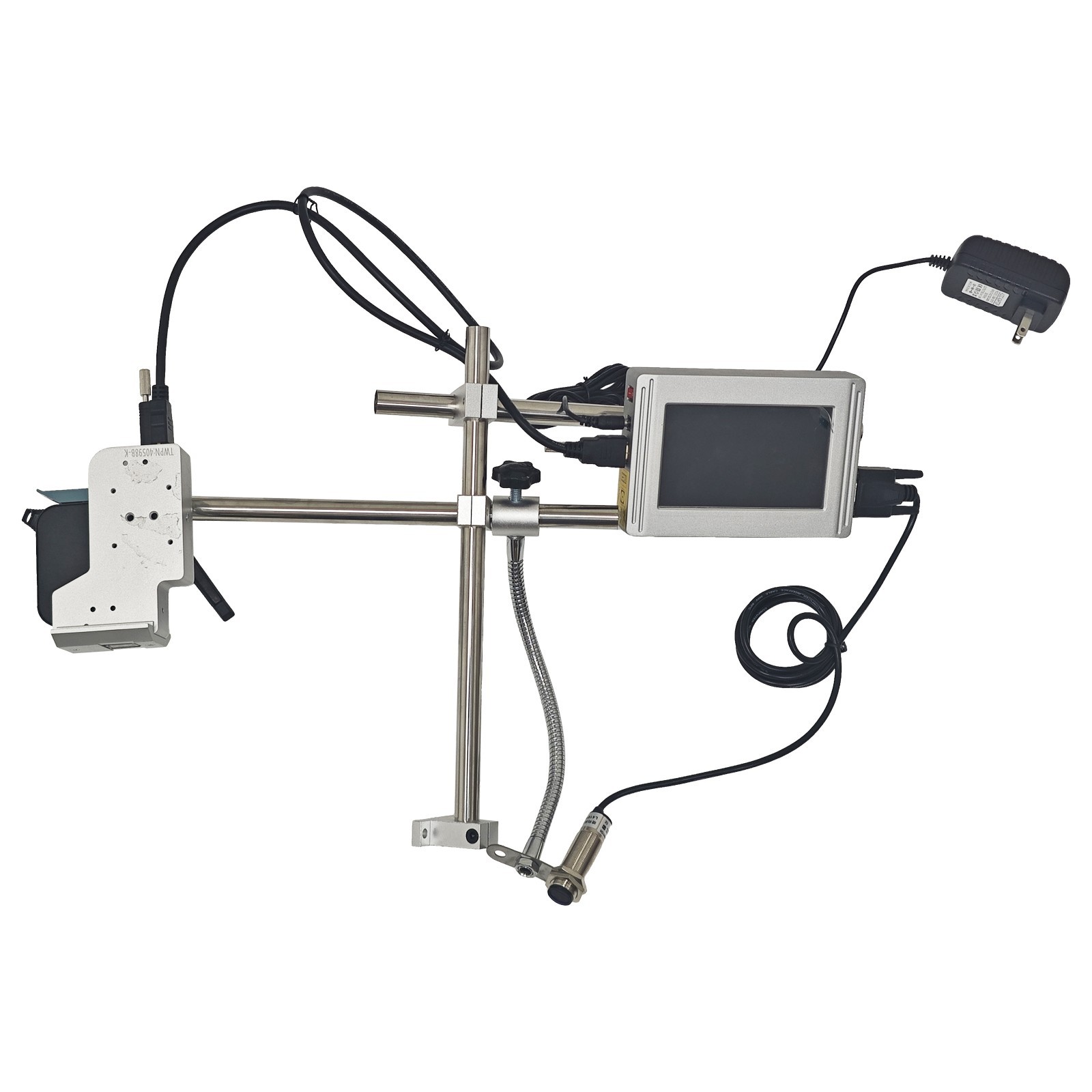

Online TIJ Thermal Foam Inkjet Printer · Technical Specs Online TIJ Thermal Foam Inkjet Printer
Auto Coding Machine 0.5'' Head 16V-1.5A Product Overview
The online thermal foam inkjet printer adopts mature TIJ thermal ink jet printing technology and is equipped with a 0.5 inch print head. It can be directly installed on the production assembly line to realize fully automatic online non contact printing. It is widely applied in industries of food, packaging, hardware, plastic, carton, pipe materials, etc. It can print marks such as production date, batch number, expiry date, serial number, QR code, barcode and LOGO patterns. The machine features a compact overall structure, easy installation and commissioning and solvent free operation, adopts dry fast dry ink cartridges, delivers low maintenance cost and is a cost effective marking solution for small and medium sized production lines.
Product Parameters Power Supply16V-1.5A power adapter Product MaterialAluminum alloy Print head TypeTIJ thermal foam print head Screen Size5-inch resistive touch screen Printing Height2-12.7mm (0.07-0.5 inch) Printing Distance2-5mm (0.07-0.2 inch) Printing Speed70m/min (229.66ft/min) Print head0.5in External InterfacesPower port, USB port Serial Number Range1-15 digits Operating EnvironmentTemperature: 0-40°C · Humidity: 10-80% Precaution
1. Always power off the machine before installing or removing the ink cartridge to prevent static electricity from causing damage to the cartridge.
2. Do not leave the ink cartridge inside the print head for long term idle storage. When the machine is not used, remove the cartridge in time and cover it with the original protective cap to avoid nozzle clogging caused by residual ink.
3. The poor printing effect or insufficient ink output usually results from clogged nozzles caused by residual ink. Moisten lint free cloth or soft tissue with moderate concentration alcohol and gently wipe the cartridge nozzle. Regularly inspect the nozzle for residual ink, and conduct preventive cleaning to avoid irreversible nozzle clogging.
Product Features
1. Online assembly line operation: The machine is equipped with a photoelectric sensor, printing is triggered automatically when products pass by, and it is suitable for continuous assembly line production. Three working modes are available: sensor triggered printing, manual test printing and continuous cyclic printing.
2. Prints with fast drying ink: The machine is compatible with various materials including cartons, plastics, laminated bags, metals and wood without ink bleeding.
3. 5-inch color touch screen: The machine has an intuitive human machine interface, and parameter adjustment and file editing can be completed with one click operation.
4. Flexible mechanical adjustment bracket: The print head can be fine tuned vertically and horizontally at multiple angles to adapt to different working positions and products.
5. Easy maintenance: The plug-and-play ink cartridge is free of complicated pipelines or pump units. The timed micro-spray anti-clogging function reduces nozzle clogging caused by ink drying. The machine has a low failure rate. The ink cartridge replacement is the only regular consumable work required.
6. Compact size and easy integration: The light weight unit can be directly installed onto the existing conveyors without production line modification. The machine is easy to disassemble and relocate.
Touch Screen The touch screen delivers intuitive operation for quick editing of production dates, batch numbers and other marking content. Flexible parameter setting and fast response facilitate on-site commissioning and message editing on production lines. Photoelectric Sensor The photoelectric sensor features strong anti-interference performance and sensitive and stable detection, and allows flexible adjustment of the sensing angle and position for various production lines. It can ensure accurate printing position and preventing missing or incorrect marks. Supporting Frame The supporting frame is constructed with stainless steel round tubes and aluminum alloy cross clamps. The multi-axis assembly enables free adjustment of the position, height and angle for the print head and sensor in horizontal and vertical directions. Ink Cartridge Holder The ink cartridge holder is integrally formed with high rigidity and resists vibration during operation to ensure accurate printing position. The clamping slot firmly holds the TIJ thermal inkjet cartridge for quick cartridge replacement. Combination Effect
The automatic inkjet printer can be combined with various conveyors and production lines to achieve automatic printing operation.
Note: The conveyor in the picture is just as reference and is not included in the packing list.
Operation Method
1. Take out the printer bracket and all accessories, and check for damage of parts.
2. After mounting the bracket, take out the ink cartridge and insert it into the print head slot.
3. After editing the printing content, enter the printing setting to configure the printing position and printing effects.
Item Included (230092) 1 x Online Thermal Foam Inkjet Printer 16V Shipping & Handling Details
