Brand New in a Box

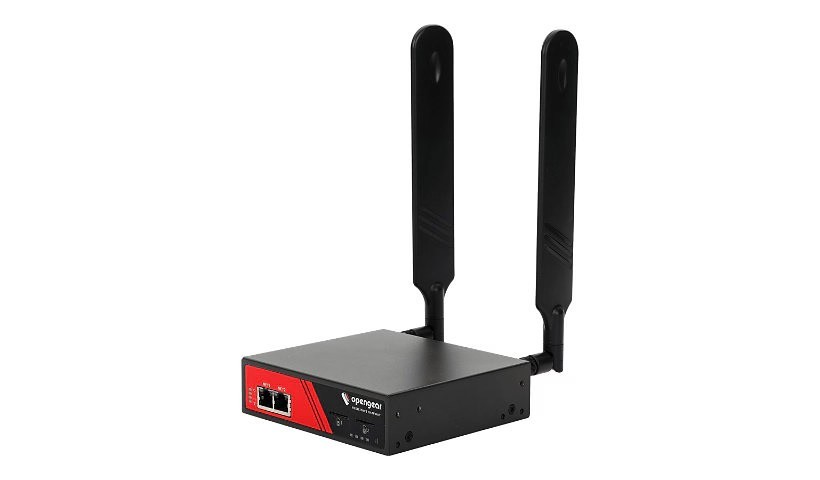

Opengear ACM7004-2-L
Console SpecificationsSerial PortsACM-7004-2:4 x RJ45 RS-232 Cisco straight pinout console ports
ACM-7004-5:4 x RJ45 RS-232 Cisco straight pinout console ports and 4 port embedded Gigabit Switch
ACM-7008-2:8 x RJ45 RS-232 Cisco straight pinout console portsInterfacesEthernet PortsACM7004-2: 2 x 10/100/1000 Ethernet
ACM7004-5: 4 x 10/100/1000 Ethernet Switch and 1 x 10/100/1000 Ethernet/SFP Uplink
ACM7008-2: 2 x 10/100/1000 Ethernet
All Ethernet/SFP Fiber port with 1500V AC Isolation and ESDProtectionSerial PortsCisco straight 50 to 230,400 bpsUSB Ports4 x USB 2.0 Console PortsRemote Access
I/O PortsIntegrated 4G LTE Cellular Card, Dual Ethernet, aggregation & redundancy, Automatic Network Failover, Easy browser UI, IPv6
2 x TTL level Digital I/O ports (DIO) 5V DC max @ 20mA (supports external water /smoke /motion dry contact sensors)
2 High Voltage Digital Outputs (HVDO) 5-30V DC@ 100mA (drives relays, alarms, etc.)Console ManagementBuilt-in web terminal
SSH direct to consoles
Optional console keystroke logging
Alert on cable disconnects, text pattern match and more
Inline power control
Multiple concurrent sessionsPower RequirementsPower Adapter110-240V AC to 12V DC external power adapter
PSEMark, BIS MarkPower ConsumptionLess than 11.5WPhysical DimensionsDimensions and Weight5 1/8 x 4 3/4 x 1 3/8 in - 1.3lbs., 13 x 12 x 3.5 cm - 0.6kgForm FactorCompactMemory and CPUCPU800 MHz Armada 370 ARMv7 SoC (Marvell 88F6W11)Memory256 MB DDR3 SDRAM
32 MB Embedded NOR FlashInternal Storage4 GB NAND FlashEnvironmentalOperating Temperature-25°C to 60°C, -13°F to 140°FStorage Temperature-40°C to +75°C, -40°F to +167°FHumidity5% to 90%Environmental MonitoringInternal temperature sensor and external serial EMD5000 device supports physical, smoke, water leak, vibration sensorsMTBF100,000 Hours (Power Supply)Security, Encryption & AuthenticationSSH
FIPS-140-2 compliant Open SSL Module
Strong ciphers -AESencryption
Cisco-compatible IPsec
OpenVPN
AAA - TACACS+, RADIUS, Active Directory/OpenLDAP, Kerberos, with local fallback
Two-factor authentication via remote AAA
Configurable stateful firewall
Actively developed & support and security notifications-frequent firmware updatesAutomation & Scalability

• ZTP, Lighthouse
• RESTful API, programmable and extensible
• Auto-Response, SNMP, LLDP, NTP

CellularModulesSierra Wireless EM7565
Cat-12 600Mbps/150Mbps (Download/Upload)Cellular CertificationAT&T and Verizon Certified
MIC-R and MIC-T Certified Japanese carriers
PTCRB, 55022:2010, CISPR 22:2008, FCC Part 15 Subpart B:2015,
ICES-003 Issue 5 (2014), AS/NZS CISPR 22:2009+A1:2010,
EN 61000-3-2:2006/A2:2009, EN 61000-3-3:2008ImmunityEN 55024:2010, CISPR 24:2010,
EN 61000-4-2:2009, EN 61000-4-3:2006+A2:2010, EN 61000-4-4:2004+A1:2010,
EN 61000-4-5:2006, EN 61000-4-6:2009, EN 61000-4-8:2010, En 61000-4-11:2004Other Agency ApprovalsCE, UL 1950, TUV, C-Tick, RoHS compliant, Security features to support NERC CIP standards, FIPS 140-2 validated module Certificate #2473Warranty4 years hardware and supportAvailable Models

Every ACM7000 model shares the following features:

• Compact form factor
• CPU: 800 MHZ 1-Core ARMv7
• 256MB Memory
• 4GB Internal Storage

ModelSerial PortsBuilt-in Switch OptionFiber SFPSIM Card SlotsModem LTEACM7004-2-LMP4NoNo04G LTEAPACACM7004-2-M4No20V.92ACM7004-544 x 1GbE10NoneACM7004-5-L44 x 1GbE124G LTEACM7004-5-LMP44 x 1GbE124G LTEACM7008-2-LMP8NoNo04G LTEAPACACM7008-2-M8No20V.92

-L Model utilizes Sierra Wireless EM7565 -LMP model utilizes Sierra Wireless MC7430.

The ‘-GLB’ suffix indicates the unit ships with a 12V global power supply.

Package Checklist

• Resilience Gateway
• External rack mount tab
• Black terminal block
• 2 x Blade antennas
• DB9F-RJ45 adapter
• 4 x Rubber feet
• 12v Global Power Supply
• Antenna Extension Kit

Optional AccessoriesPart NumberDescriptionAdapters319014Adapter - DB9F to RJ45 straight serial - DCE -For X2 Pinout319015Adapter - DB9F to RJ45 crossover serial - DTE -For X2 Pinout319016Adapter - DB9M to RJ45 straight serial - DCE - For X2 Monitoring Device - X2 PinoutEMD5781-10Door contact sensor - 10' Cable lengthEMD5782Vibration sensor - 3' Cable lengthEMD5779-QSmoke detector/alarm (220V AC, IEC C-13)EMD5890-QASmoke Detector/alarm (110V AC, NEMA 5-15)EMD5780Water leak detector - 3' Cable lengthMounting590003Rack Mount Kit - Ears and Screws - ACM7000590012DIN Rail - ACM7000590033Rack Mount Tray - All ACM SeriesPower Supply450037Power Supply - 12VDC Four Chamber Square Connector - ACM7000450039Power Supply - External AC power adapter, input IEC C13/C14, output 4-pin connector for ACM7000 - IEC 62368 (450032 replacement)450041Power Supply - ACM7000 External DC-DC Power ConverterCellular569018Antenna - GPS Active - 6' Cable length - For all 4G LTE Cellular units569028Antenna - 5" Blade 4G LTE with swivel base (-LMx models)449041Antenna Extender - Magnetic Base with 10' Cable590051Antenna Extension Kit569041Antenna - Blade LTE-A with swivel base (-L model)Warranty
