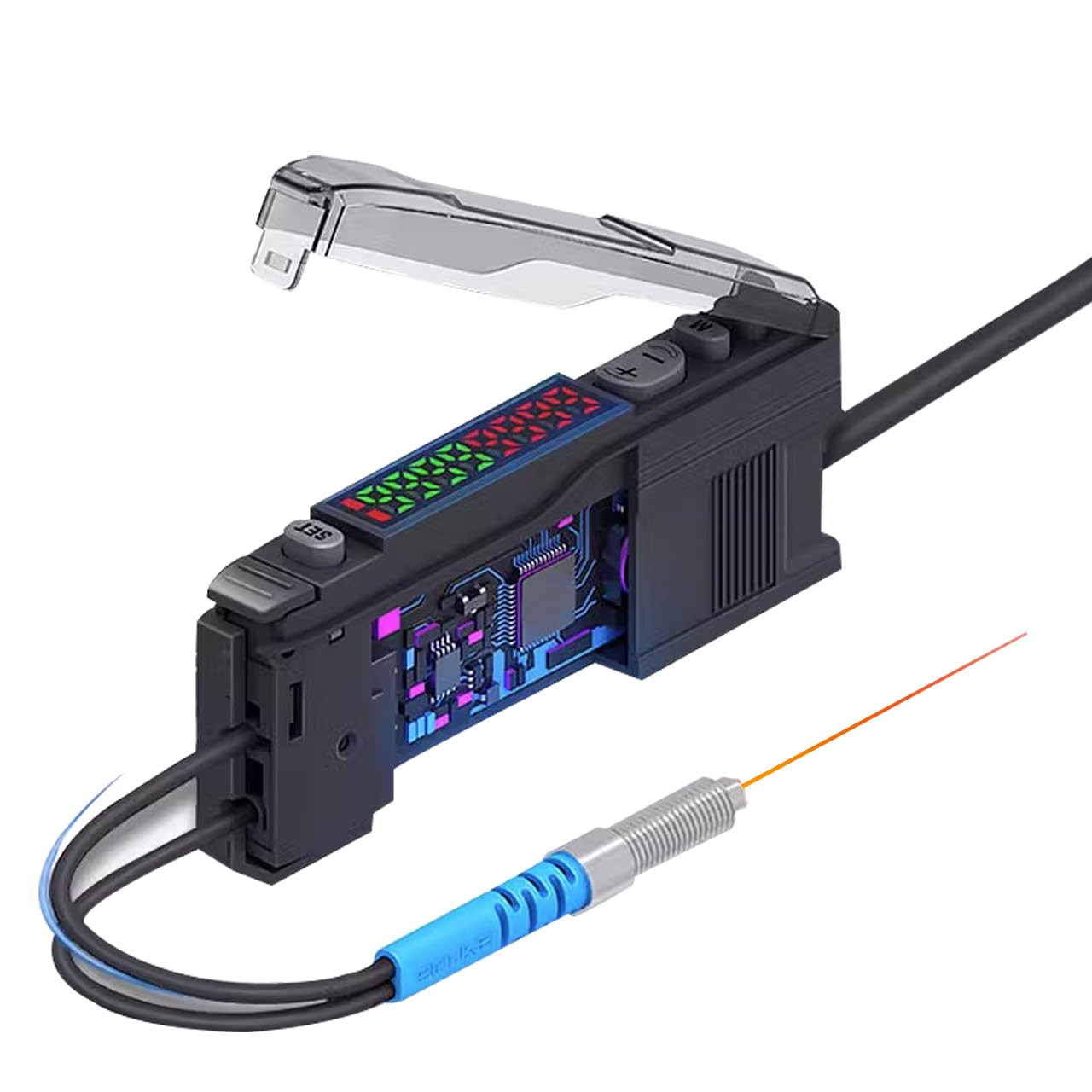

- 【Modle】The FS-N13 fiber-optic amplifier provides ultra-stable performance and smart tuning for high-speed, reliable detection for standard or demanding applications.
- 【Supply Voltage】DC 12-24V (brown-positive pole, blue-negative pole, black-signal output).
- 【Simple Setup】One push setting with the PRESET Button，Laser, fiberoptic, and photoelectric models all sharethe same simple functionality.
- 【Features】 It is a sensor type component with sButton ,adjustment switch, output indicator light and signal strength indicator light, high sensitivity and low delay.
- 【Scope of application】Specially suitable for relay amplification for long-distance optical communications. (Recommended to use with the store's optical fiber).
Product description
Dual screen digital display · Three delays · four frequencies
HD LED dual digital display to master well even subtle changes
Reflection 250mm to beam 2 meters detection distance
[Note: It can be achieved only with the specified fiber]
Color separation, color separation accurate, reliable!
The upper and lower limits can be set to lock a certain position or color sensing
Suitable for the store 350 degree high temperature fiber for tunnel furnace, oven and other equipment
Three delay modes can be set to adapt to different detection scenarios
[Default no delay, support 0-9999 ms Settings]
FS-N13 Dual Digital Fiber Optic Amplifier
- Color separation, color separation accurate, reliable!
- Anti-interference installation in multiple Wells
- Three delay modes can be set to adapt to different detection scenarios
- High performance chip, powerful function and wide adaptability
It needs to be used with the optical fiber of the store to be more stable
For example, FUS310, FUS410, and FU610
FT310/FT410/FT610
FS-N13 Standard Dual Digital Fiber Amplifier
A fiberoptic sensor that uses diverse fiber units to support various applications in virtually any environment. These are reliable and easy-to-use
devices that have high power, can automatically adjust to real-time conditions, and have a straightforward display that eliminates any guesswork.
Remote detection
With the optical fiber sensor, it can be detected at a distance
anti-interference
Multiple amplifiers are installed together without interference
Amplifier installation
Mount the bottom of the amplifier on the 35mm wide DIN rail with the mounting bracket and press the front on the 35mm wide DIN rail with the amplifier mounting bracket.
Fiber connection
Lower the fiber bar.
Slowly insert the optical fiber through the insertion port until it does not move.
Fix the optical fiber back to the original position until it cannot be turned.
FS-N13 Standard Dual Digital Fiber Amplifier Screen display Digital code Response time Less than 50us Detection mode Delay mode/Area mode Detection distance Reflection 280mm versus beam 1200mm brand BOJKEON Output mode NPN+PNP, normally open and normally closed Operating voltage 12-24VDC dimension 72*32*10.5mm Operating ambient temperature 25~+55°C Cord length 2M
