Dear Buyers:
Welcome to our store.
Before shipping, we'll test and examine all the items,ensure there is no defects or DOA.
We'll put the item into an Anti-electrostatic plastic bag, then put it into a safe package to avoid being injured by shipping.Warranty:
Our item warranty 90 days, the following reason we don't accept returns:
A. Wrong order.
B. The item didn't buy from us.
C. Damage the item on purpose.Kindly Tips:
A. If the motherboard can't work correctly, please first check your CPU whether can be compatible with our motherboard, then check your video card or power supply.
B. Please DO NOT use single-sidememory, most motherboards can't support suchmemory.C. We DO use genuine brandmemory, please do not use fakememory or if you're not sure whether yourmemoryfake or not, please do not try it on our motherboard.
Packet Contained:

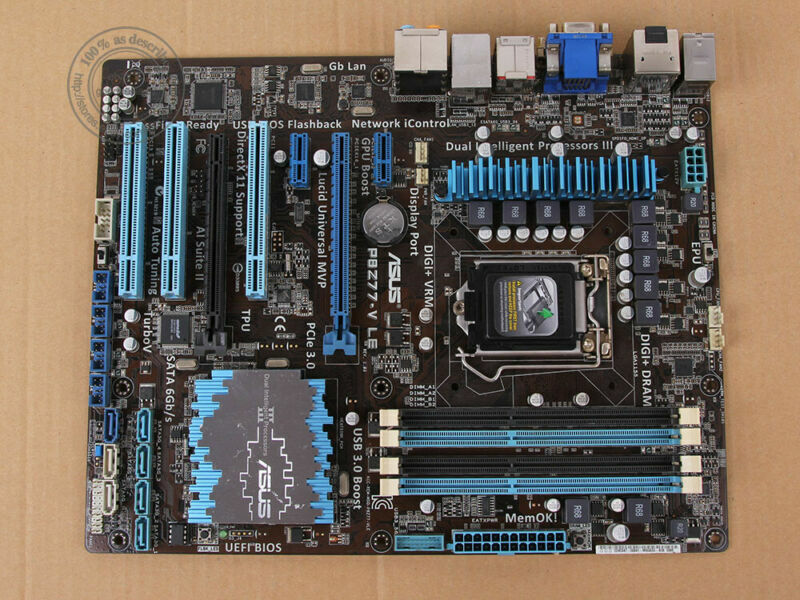

1 x motherboard
2 x SATA II cables
1 x I/O shieldParts Specification:
CPU
Intel® Socket 1155 for 3rd/2nd Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 22 nm CPU
Supports Intel® 32 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to ASUS official website for CPU support list
Chipset
Intel® Z77
Memory
4 x DIMM, Max. 32GB, DDR3 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to ASUS official website for the Memory QVL (Qualified Vendors Lists).
Graphic
Integrated Graphics Processor
Multi-VGA output support : HDMI/DVI/RGB/DisplayPort ports
- Supports HDMI with max. resolution 1920 x 1200 at 60 Hz
- Supports DVI with max. resolution 1920 x1200 at 60 Hz
- Supports RGB with max. resolution 2048 x 1536 at 75 Hz
- Supports DisplayPort with max. resolution 2560 x 1600 at 60 Hz
Maximum shared memory of 1024 MB
Supports Intel® HD Graphics, InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Multi-GPU Support
Supports NVIDIA® Quad-GPU SLI™ Technology
Supports AMD Quad-GPU CrossFireX™ Technology *1
Supports AMD 3-Way CrossFireX™ Technology
Supports LucidLogix® Virtu™ MVP Technology *2
Expansion Slots
2 x PCIe 3.0/2.0 x16 (x16 or dual x8, blue) *3
1 x PCIe 2.0 x16 (x4 mode, black) *4
2 x PCIe 2.0 x1
2 x PCI
Storage
Intel® Z77 chipset :
2 x SATA 6Gb/s port(s), gray
4 x SATA 3Gb/s port(s), blue
Support Raid 0, 1, 5, 10
Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology
Marvell® PCIe SATA 6Gb/s controller : *6
1 x eSATA 6Gb/s port(s), red
1 x SATA 6Gb/s port(s), navy blue
LAN
Audio
Realtek® ALC889 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
- Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound
- Blu-ray audio layer Content Protection
- Optical S/PDIF out port(s) at back panel
USB Ports
Intel® Z77 chipset : *7
4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board)
Intel® Z77 chipset :
10 x USB 2.0 port(s) (2 at back panel, black, 8 at mid-board)
ASMedia® USB 3.0 controller : *7
2 x USB 3.0 port(s) (2 at back panel, blue)
ROG Exclusive Features
Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)
Special Features
ASUS Dual Intelligent Processors 3 with New DIGI+ Power Control :
SMART DIGI+ :
- Smart DIGI+ Key- quickly delivers higher VRM frequency, voltage and current for superior CPU/iGPU/DRAM overclocking performance with one switch.
- Smart CPU Power Level (Intel® VRD 12.5 Future Power Design)- provides the best digital power saving conditions.
ASUS Hybrid Processor - TPU :
- Auto Tuning
- TurboV
- GPU Boost
- TPU switch
ASUS EPU :
- EPU
- EPU switch
ASUS Digital Power Design :
- Industry leading Digital 8 Phase Power Design
(6 -phase for CPU, 2 -phase for iGPU)
- Industry leading Digital 2 Phase DRAM Power Design
- CPU Power Utility
- DRAM Power Utility
ASUS Exclusive Features :
- USB BIOS Flashback
- MemOK!
- AI Suite II
- Ai Charger+
- USB Charger+
- Anti-Surge
- Low EMI Solution
- ESD Guards
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Network iControl
- USB 3.0 Boost
- Disk Unlocker
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution & MOS Heatsink
- ASUS Fan Xpert+
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
ASUS Q-Design :
- ASUS Q-Slot
100% All High-quality Conductive Polymer Capacitors
Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI
1 x D-Sub
1 x DisplayPort
1 x HDMI
1 x eSATA
1 x LAN (RJ45) port(s)
4 x USB 3.0
2 x USB 2.0
1 x Optical S/PDIF out
6 x Audio jack(s)
Internal I/O Ports
1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
4 x USB 2.0 connector(s) support(s) additional 8 USB 2.0 port(s)
1 x COM port(s) connector(s)
3 x SATA 6Gb/s connector(s)
4 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s) (4 -pin)
3 x Chassis Fan connector(s) (4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x MemOK! button(s)
1 x TPU switch(es)
1 x EPU switch(es)
1 x Clear CMOS jumper(s)
1 x USB BIOS Flashback button(s)
BIOS
64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, F12 PrintScreen Function, F3 Shortcut Function and ASUS DRAM SPD (Serial Presence Detect) memory information
WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
Form Factor
ATX Form Factor
12 inch x 9.6 inch (30.5 cmx24.4 cm)
Note
*1: *Disable PCIe x1_1 and PCIe x1_2 slots and manual set the PCIe x16_3 to x4 mode in BIOS when configure CrossFireX™ with dual graphics cards.
*2: LucidLogix Virtu MVP supports Windows 7 operating systems.
*3: PCIe 3.0 speed is supported by Intel® 3rd generation Core™ processors.
*4: The PCIe x16_3 slot shares bandwidth with PCIe x1_1 slot, PCIe x1_2 slot. The default setting is x2 mode. Go to the BIOS setup to change the settings.
*5: Supports on Intel® Core™ processor family with Windows 7 operating systems.
*6: These SATA ports are for data hard drivers only. ATAPI devices are not supported.
*7-1: The USB 3.0 ports only support Windows® 7 or later versions.
*7-2: Supports ASUS USB 3.0 Boost UASP Mode.
*8: Due to Intel® chipset limitation, P8Z77, P8H77 and P8B75 series motherboards do not support Windows®Vistaoperating timeUSAExpedited Shipping3-5 business Shipping3-6 business daysUK,Germany,FranceExpedited Shipping4-6 business daysOther EuropeCountryExpedited Shipping5-8 business daysOther CountryExpedited Shipping6-10 business days Custom Tax:
Please note we're unable to take any responsibility for any custom delay or tax. The fees of import duty/tax are not included in the item price or shipping fee, these are the buyer's responsibility.
Please check with your local custom office to determine what these additional costs would be before payment. And these fees are normally collected by the delivery company, when you pick up item.
Customer Service:
Dear buyer, we sincerely do business with you. If you satisfy with our service and products, please leave us positive response. Your recognition is our power to move forward, especially to a beginner like us. Your great comments will lead us to get more potential customers, and make us more confident to develop business and serve you better.
But if you don't satisfy with the item, or you have any concern about our transaction, please do first contact us, we will response you in 24 hours, and do our best to help you solve any problems.
Thank you for watching
