A. If the motherboard can't work correctly, please first check your CPU whether can be compatible with our motherboard, then check your video card or power supply.
B. Please DO NOT use single-sidememory, most motherboards can't support suchmemory.C. We DO use genuine brandmemory, please do not use fakememory or if you're not sure whether yourmemoryfake or not, please do not try it on our motherboard.Packet Contained:

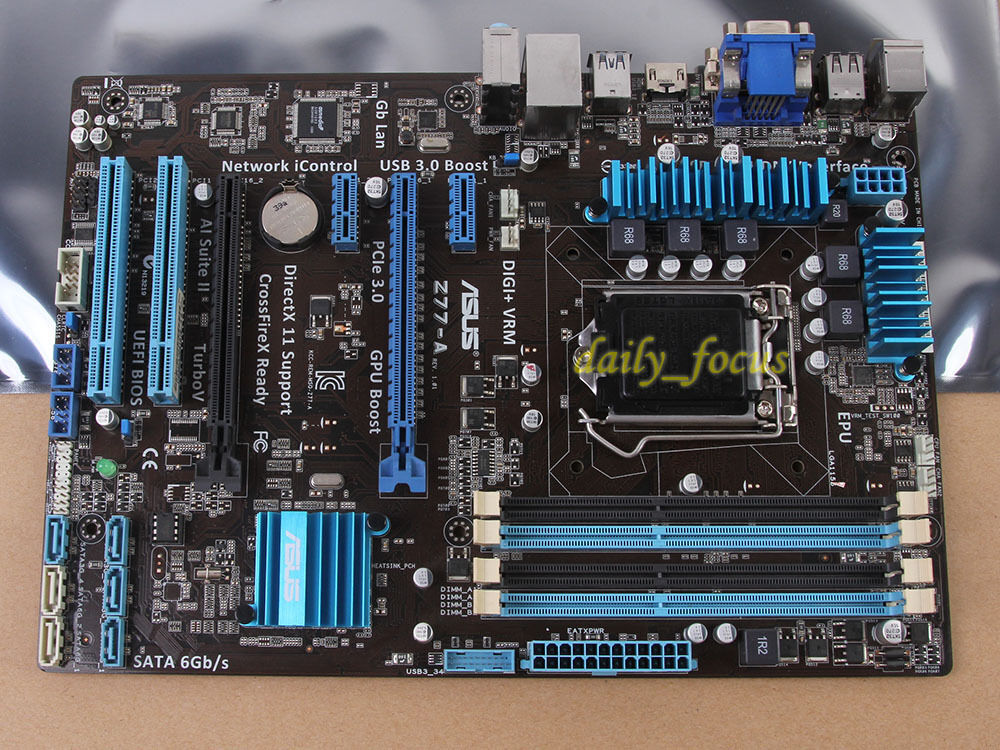

1 x motherboard
2 x SATA II cables
1 x I/O shield
Parts Specification:
CPU
Intel® for 3rd/2nd Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® LGA 1155 Processors
Supports Intel® 22 nm CPU
Supports Intel® 32 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to ASUS official website for CPU support list
Chipset
Intel® Z77
Memory
4 x DIMM, Max. 32GB, DDR3 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to ASUS official website for the Memory QVL (Qualified Vendors Lists).
Graphic
Integrated Graphics Processor
Multi-VGA output support : HDMI/DVI/RGB ports
- Supports HDMI with max. resolution 1920 x 1200 at 60 Hz
- Supports DVI with max. resolution 1920 x 1200 at 60 Hz
- Supports RGB with max. resolution 2048 x 1536 at 75 Hz
Maximum shared memory of 1696 MB
Multi-GPU Support
Supports AMD Quad-GPU CrossFireX™ Technology
Expansion Slots
1 x PCIe 3.0/2.0 x16 (x16 mode, blue) *1
1 x PCIe 2.0 x16 (black)
2 x PCIe 2.0 x1
2 x PCI
Storage
Intel® Z77 chipset :
2 x SATA 6Gb/s port(s), gray
4 x SATA 3Gb/s port(s), blue
Support Raid 0, 1, 5, 10
Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology *2
LAN
Realtek® 8111F, 1 x Gigabit LAN Controller(s)
Audio
Realtek® ALC887 8-Channel High Definition Audio CODEC *3
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
USB Ports
Intel® Z77 chipset : *4
4 x USB 3.1 Gen 1 port(s) (2 at back panel, , 2 at mid-board)
Intel® Z77 chipset :
8 x USB 2.0 port(s) (4 at back panel, , 4 at mid-board)
ROG Exclusive Features
Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)
Special Features
ASUS EPU :
- EPU
ASUS Digital Power Design :
- Industry leading Digital 4 +1 Phase Power Design
- ASUS DIGI+ VRM Utility
TurboV
GPU Boost
ASUS Exclusive Features :
- AI Suite II
- Ai Charger
- Anti-Surge
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Network iControl
- USB 3.0 Boost
- Disk Unlocker
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution & MOS Heatsink
- ASUS Fan Xpert+
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
100% All High-quality Conductive Polymer Capacitors
Back I/O Ports
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 1
4 x USB 2.0
3 x Audio jack(s)
Internal I/O Ports
1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x COM port(s) connector(s)
2 x SATA 6Gb/s connector(s)
4 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x Power Fan connector(s) (1 x 3 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
BIOS
64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 4.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, F12 PrintScreen, F3 Shortcut Function and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability
WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
Form Factor
ATX Form Factor
12 inch x 8.4 inch ( 30.5 cm x 21.3 cm )
Note
*1: PCIe 3.0 speed is supported by Intel® 3rd generation Core™ processors.
*2: Supports on Intel® Core™ processor family with Windows 7 operating systems.
*3: Use a chassis with HD audio module in the front panel to support an 8-channel audio output
*4: The USB 3.0 ports only support Windows® 7 or later versions.
