Dearvalued buyer, thank you for viewing our page. We will provide you bestservice and high quality products.We promised all the Items will betested earnestly before shipping, ensure it 100% working in orders..

Ifyou\'re about our item have any concern, please don\'t hesitate tocontact us. Since the time difference, perhaps we\'ll reply you late forseveral hours, thank your very much for your understanding.

Notes:
A. The battery is not included and Customs don\'t allow.
B.If the motherboard can\'t work correctly, please first check your CPU whether can be compatible with our motherboard, then check your video card or power supply.
C.Please DO NOT use single-side memory, most motherboards can\'t support such memory.
D. We DO use genuine brand memory, please do not use fake memory or if you\'re not sure whether your memory fake or not, please do not try it on our motherboard.

Package include:1* motherboard2* SATA cables1* I/O pannel

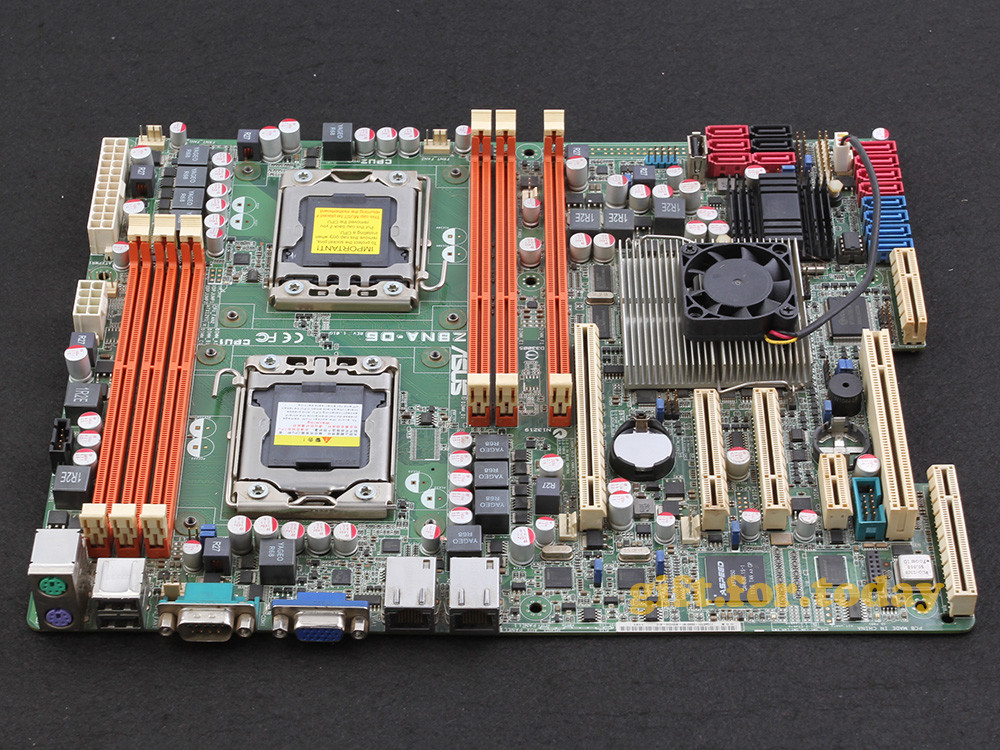

ASUS Z8NA-D6 Server Motherboard Introduction

Processor / System Bus

2 x Socket LGA1366
QPI 4.8 / 5.86 / 6.4 GT/s
Six-Core/Quad-Core Intel® Xeon® X5600/X5500 Series (95W)
Six-Core/Quad-Core/Dual Core Intel® Xeon® E5600/E5500 Series (80W)
Six-Core/Dual Core/Quad-Core Intel® Xeon® L5600/L5500 Series (60W/40W/38W)

Core Logic

Intel® 5500 IOH
Intel® ICH10R I/O Controller

Memory

Memory Size :
8GB, 16GB, 2GB, 1GB, 4GB RDIMM
1GB, 4GB, 2GB UDIMM
Capacity : Maximum up to 24GB UDIMM/Maximum up to 96GB RDIMM
Total Slots : 6 (3-channel per CPU, 3 DIMM per CPU)
Memory Type :
RDIMM DDR3*
DDR3 UDIMM*

Expansion Slots

Slot Location 1 : PCI 32bit/33MHz
Slot Location 2 : MIO Slot for Audio card PCI-E x1 is not supported
Additional Slot 1 : PIKE Slot for Stroage expansion
Total Slot : 5
Slot Location 4 : PCI-E x8 (Gen2 X4 Link)
Slot Location 3 : PCI-E x8 (Gen2 X4 Link)
Slot Location 6 : PCI-E x16 (Gen2 X16 Link)

Storage

SAS/SATA Controller :
ASUS PIKE 2008/IMR 8-port SAS2 6G RAID card(Optional)
ASUS PIKE 9230 4-port SATA 6G RAID card (Optional)
ASUS PIKE 2108-32PD 8-port SAS2 6G RAID card (Optional)
ASUS PIKE 2308 8-port SAS 6G RAID card (Optional)
ASUS PIKE 2208 8-port SAS 6G HW RAID card (Optional)
ASUS PIKE 2008 8-port SAS2 6G RAID card (Optional)
SATA Controller :
Intel® ICH10R
LSI® MegaRAID (For Linux/Windows)
(Support Software RAID 1, 0, 10 )
Intel® Matrix Storage (For Windows Only)
(Support Software RAID 1, 5, 0, 10 )
6 x SATA2 300MB/s

Networking

2 x Intel® 82574L

Graphic

Aspeed AST2050 with 8MB VRAM

Back I/O Ports

1 x External Serial Port
2 x External USB Port
1 x VGA Port
2 x RJ-45
1 x PS/2 KB/Mouse

Internal I/O Ports

1 x USB pin header , Up to 2 Devices
1 x Serial Port Header
2 x SMBus
2 x Front LAN LED
1 x Chassis Intruder
1 x Internal A Type USB Port
1 x Management Connector , Onboard socket for management card
1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)*1
8 x Fan Header , 4pin

Management Solution

Software: ASWM2.0
Optional ASMB4-iKVM for KVM-over-Internet

Regulatory Compliance

CE, FCC(Class B), BSMI, C-Tick

Environment

Operation temperature: 10℃ ~ 35℃ / Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% (Non condensing)

Product SKUs

Standard Bulk Pack
Standard Gift Box Pack with ASMB4-iKVM
Standard Gift Box Pack
Standard Gift Box Pack with MIO
Standard Bulk Pack with ASMB4-iKVM

Monitoring

Fan RPM
CPU Temperature

Form Factor

ATX (12\"x9.6\", 305mm x 244mm)

Note

* Refer to ASUS Server AVL for latest update
*1:
Support Both ATX & SSI Power Supply
Minimum requiremen of ATX Power supply:
1)450W 2)All +12V output ≧18A

ShippingEconomy shipping :Usually To all countries will be shipped via AIR MAIL ,not Expedited shipping.Usually to (USA UK CA AU )need 15-25 days arrive other country 15-35 days.

Expedited shipping:USA,UK,EU, CA ,AUS ,Europe Usually need 3-5 days arrive.other country 4-7 days,(according to your country)...

Please note The customs（tariff） is not included in the item price or shipping fees. These charges are the buyer\'s responsibility. Please check with your country\'s customs office to determine what these additional costs will be prior to offerding or buying.
We can not mark item as \"gift\", since Your Country customs and international customs regulations prohibit such behavior, thank you for your understanding.

After Sale:

• Warranty:All items are sold with 90 days warranty unless otherwise stated in the sale

• Returlns:1) In our item warranty, we can offer refund or replacement.2) We do the refund after we get the returned item, we can ship the replaced item after you ship the old one out.3) Please do not return any items without an authorization number or other instructions by us. Any packages that are send without our knowledge will be refused and no replacements will be issued. Wrong item ordered or non defective part returns require a 20% restocking fee. All products are marked with serial number and QC badge.Any products returned without our serial number and QC badge will be rejected as not our parts..

Our working hours are from Monday to Friday China time from 8.00 to 16.00 clocks.
If you would like to purchase a project to ask questions or concerns or items, please contact us via Mail System and we will be happy to help you.
If you are working outside of your normal business hours, please wait until the next business day and we will answer your questions and resolve any questions you may encounter. Please allow us to assist you during normal business hours.
If you contact us on weekends, your questions or questions will be answered from Monday to Friday from 8 am to 4 pm during normal business hours.
