PC Chips M963G (V3.2) Intel Socket 478 Motherboard, with 1 AGP 8x Slot/2 PCI Slo For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
PC Chips M963G (V3.2) Intel Socket 478 Motherboard, with 1 AGP 8x Slot/2 PCI Slo
Price: US $61.50

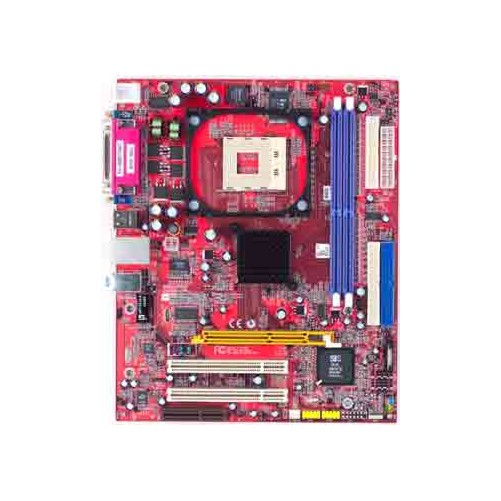

PC Chips M963G (V3.2) Motherboard
Intel Socket 478 Motherboard, with 1 AGP 8x Slot/2 PCI Slots/1 CNR Slot, on board audio, video and LAN, 4 USB Ports, IDE, 2 DIMM Sockets and Micro ATX Form Factor
PC Chips M963G (V3.2) 2 x UltraDMA 133/100/66
FDD: 360K~2.88M Byte, 3 Mode FDDs or LS120
Rear Panel I/O Ports:
1 x PS/2 keyboard
1 x PS/2 mouse port
1 x Parallel Port
1 x Serial Port
1 x VGA port
4 x USB 2.0 Ports
1 x RJ 45 Port
1 x Audio I/O (Line-in, Line-out and Mic-in)
Internal I/O Interface:
20-pin ATX power supply connector
4-pin ATX 12V power supply connector
2 x USB 2.0 header support additional 4 USB2.0 ports
1 x Front panel switch/LED header
1 x Front panel audio header
CPU / CHS FAN headers
1 x IrDA for SIR header
1 x Speaker header
1 x CD in header
Motherboard Chips M963G (V3.2) Motherboard
Processor Support:
Socket 478 for Intel Pentium 4, HT 661FX/ MHz
Memory:
2 x 184-pin DIMM sockets support two 2.5V DDR SDRAMs (DDR400/333/266)
Maximum: 2GB
Expansion Slots:
1 x AGP 8X
2 x PCI slots
1 x CNR slot
On-Board Video:
Embedded Real256E 3D Graphics with 64M share memory
On-Board Audio:
C-Media CMI9739A/9761 6-channel audio Codec
Compliant with AC'97 2.3 LAN:
Realtek RTL8201BL 10/100Mbps Fast Ethernet PHY
Form Factor/Dimensions:
Micro-ATX Form Factor, 2Mb Flash ROM
Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI
