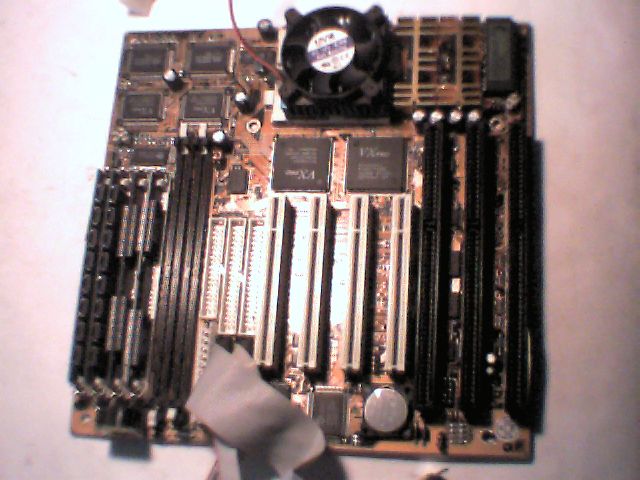

MB-537 Ver3.2

Socket7Motherboard

Made by PCChips PC-Chips Elpina in 1998

built around the VXpro Chipset with an UMC8670 I/O chip

Baby-AT form Factor

316-bit ISA slots and4 PCI slots

2168-pin DIMM slots, 4 72-pin SIMM slots, up to 384MB max

Comes with a Cyrix PR200+ MMX CPU and 48MB of RAM

USED but in very good condition. WORKING.

Motherboard with Serial and Parallel cables only,no other cables, no manual, no software.

BIOS: style="font-size: 14pt;">

The VXPRO chipset is a relabeled VIA Apollo VP-1 chipset.

You can identify the VXPRO by looking at the Award BIOS Number: 2A5LAH09C

The BIOS number also reveals the real name of the chipset: 2A5LAstands for a VIA Appollo VP-1 chipset.

H0 stands for Hsing Tech/PcChips

Because it's a VIA chipset you can use the latest VIA Busmasteringdrivers. (see bmdrivers[dot]com)

You can find BIOS updates at the PcChips website. The model to choose isM537 (don't choose M537DMA33 !!)

Note that this board is also being sold under the following names: Sybercom MB537, Ability(model: ???), Protac MB5370, Eurone/Matsonic(model: ???), Aristo (model: ???),Houston Technologies M537, PCWare (Alton). THESE BOARDS ARE IDENTICAL TO THE PCCHIPS M537!!

This motherboard is very very similar to the V5.2A motherboard, the only difference is that this motherboard uses the VxPro chipset and the V5.2A uses the VxPro+ chipset that allows a slightly faster bus speed.
