Please rest assured to make the purchase. No additional tariffs need to be paid. Free delivery to your doorstep with tax included.PiSugar 3 Portable Pwnagotchi Power Management Board for Raspberry Pi Zero W/WH Model (Not Include Raspberry Pi)
BrandPI PISUGARConnectivity TechnologyI2COperating SystemRaspberry Pi OSCPU ManufacturerBroadcom
About this item
- Intelligent System Monitor – Keeps your Raspberry Pi running smoothly by tracking power conditions and triggering automatic restarts to prevent crashes. Perfect for unattended or remote applications.
- Multi-Level Protection – Equipped with advanced over-voltage, over-current, under-voltage, and system protection layers to ensure your Raspberry Pi runs safely and reliably.
- Non-Intrusive Design – Installs easily on the back of the Raspberry Pi Zero series without blocking the GPIO header, allowing full compatibility with other HATs or accessories.
- I2C Interface Support – Communicates via I2C with configurable address, enabling easy integration into multi-device I2C environments.
- Custom Control & RTC Built-In – Comes with a real-time clock and a customizable button for flexible power management and scheduled wake-up functions.
Product description
We are a passionate team of Raspberry Pi enthusiasts dedicated to making your projects more portable and reliable. To empower developers and makers in building truly mobile applications, we createdPiSugar—a modular power solution tailored for Raspberry Pi.
Over time, PiSugar has evolved into three distinct product lines:PiSugar 2,PiSugar 3, andPiSugar S, each offering two models. One is optimized for theRaspberry Pi Zero series, while the other is designed to supportmost full-sized Raspberry Pi boards, providing flexible power options across different use cases.

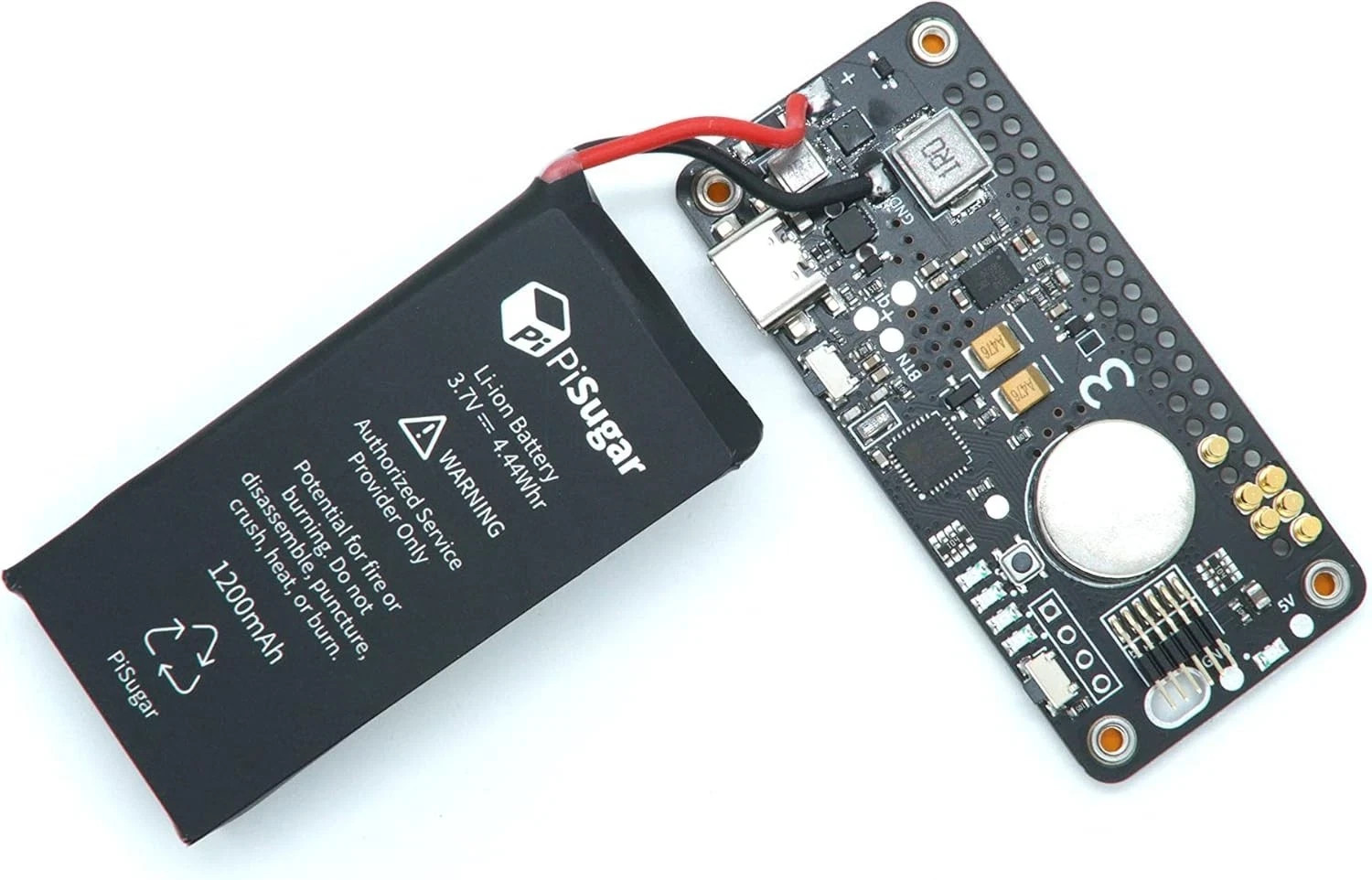

PiSugar 3 for Raspberry Pi Zero (W/WH/2)
PiSugar 3 continues the compact pogo pin design introduced in the PiSugar 2 series, making installation quick and tool-free.
While retaining essential features such as the onboard RTC and intuitive WebUI, PiSugar 3 introduces several new functions and enhanced device compatibility—bringing greater flexibility to your Raspberry Pi projects.
Equipped with an independent MCU, PiSugar 3 enables smart communication and feature control. Firmware updates can be performed effortlessly using a single command—no additional hardware or complex procedures required.
Software Watchdog:
When enabled, this feature requires the system to regularly send a keep-alive signal—commonly referred to as "feeding the dog." If the signal is not received within a set timeframe, the system will automatically reboot. This helps prevent system freezes or crashes, greatly improving overall stability and reliability.
Remote Upgrade
The device supports over-the-air firmware updates directly through the Raspberry Pi. With just a simple command, you can upgrade the device without any additional hardware—making it easy to access new features and improvements whenever they become available.
Advanced Power Protection
For the first time, PiSugar introduces hardware-level protection for the power module, including voltage-limiting features that cap the maximum charge level at around 80% to help extend long-term performance.
Multiple safety mechanisms are built in—overvoltage,overcurrent, andundervoltageprotection—to safeguard both the PiSugar module and your Raspberry Pi during operation and charging.
Anti-Mistaken Touch Switch
Effectively avoid shutdown caused by accidental touch
Power Condition Monitoring
PiSugar 3 continuously monitors power status to ensure uninterrupted operation. Whether external power is connected or lost, it seamlessly keeps your Raspberry Pi running—helping prevent unexpected shutdowns and data loss.
Through the data interface, users can detect external power presence and charging status, as well as monitor overall power levels. Based on this information, the system can decide whether to shut down safely, or automatically power back on when external power is restored.
With these intelligent features, your project remains stable, protected, and ready to run as long as possible.
Customize I2C address
PiSugar communicates with the Raspberry Pi through the I2C interface and is compatible with most I2C devices.In addition, the I2C communication address can be customized to avoid I2C address capacity1200mAhCommunication interfaceI2C interface 0x57/0x68 address (can be set)
