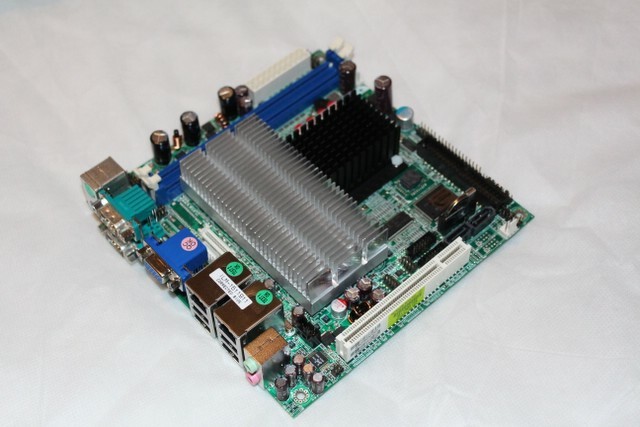

PortwellWADE-8044-600 Industrial Main Board
with
Intel Celeron-M 600MHz (512KBCache)(LOW PROFILE , Less than 1Uand FANLESS)PCI Slot, 2 X SATA2x10/100/1000 Mbps GigE LAN Ethernet ,8 X USB 2.0 , 4 X COM Serialand tons of expansionincluding IDE , a CF Slot (on Bottom), Multiple Display on VGA, 18-bit LVDS
Intel GMA9000 Graphics with 128MBShared
System chipset: Intel 910GMLE andICH6-M chipset
Size: 170 x 170mm (6.7\" x 6.7\")
OtherSpecifications
Memory - Two 240-pin DIMMs support dual channelDDR2 SDRAM up to 2GB
Display:
Chipset Intel 910GMLE GMCH Integrated Intel GMA 900 graphics
Display Memory Intel DVMT 3.0 share system memory up to 128MB
Resolution Analog Display: Up to 2048 x1536 (QXGA)
Digital LVDS: Up to 1400 x 1050 (SXGA+)
Digital DVI (Optional): Up to 1600 x 1200 (UXGA)
LVDS Dual Channel 18-bit 1 x EIDE, 1 x LPT, 3 x RS-232 port, 1 x RS-232/422/485
selectable, 1 x K/B, 1 x Mouse
4 x USB 2.0 ports and 4 x USB 2.0 with header
MonitoringAPI/DMISoftware interface to monitor hardware values including HDDS.M.A.R.T.
BatteryOn board Lithium battery and external batteryinput
Power SupplyATX
GPIO connector: 8-bit general purpose Input/Output
Operating temperature: 0 ~ 55° C
DimensionsMini-ITX, 170 mm x 170 mm (6.7” x6.7”)
TERMS :-BrandNEW Project Surplus Kit,and Tested Thoroughly
Included-
Box Contains - Motherboard , CPU and HeatSink Only
