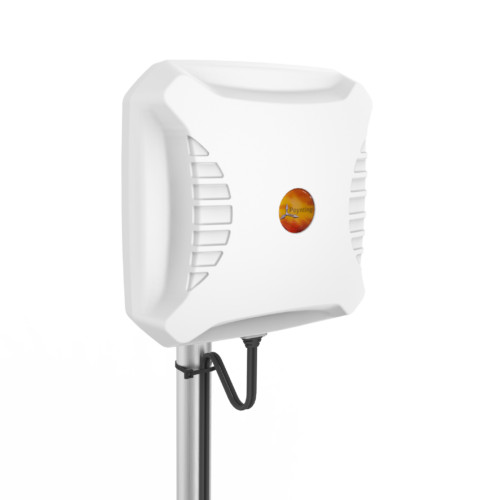

The XPOL-2-5G is POYNTING’s third-generation “V3” version of its popular Cross Polarised (XPOL) 2×2 MIMO antenna. While the enclosure retains the familiar look of the second-generation “V2,” the internal design has been completely re-engineered using advanced metamaterial technology. The incorporation of Artificial Magnetic Conductors (AMC) and a patent-pending radiator configuration significantly enhances bandwidth and gain.
Expanded Frequency Coverage: Now includes the 3400 – 4200 MHz bands, in addition to 617 – 960 MHz, 1710 – 2170 MHz, and 2300 – 2700 MHz.
Enhanced Gain Performance: Delivers up to 3 dB higher gain in the 1700 MHz and 2.7 GHz bands compared to the V2 model.
Advanced Metamaterial Technology: Uses Artificial Magnetic Conductors (AMC) for improved signal efficiency and performance.
Optimised Radiation Patterns: Well-controlled radiation patterns enhance overall antenna effectiveness.2×2 MIMO Configuration: Provides better throughput, stability, and signal quality for 2G, 3G, 4G, and higher gain over all the bands compared to “V2”
Includes 617 to 894 MHz for US applicationsNew 3400 to 4200 MHz, 5G band with 11dBi gainConsistent broadband performanceX-Polarised 2X2 MIMO AntennaWall or pole mountableLightweight & RuggedWeatherproof & waterproof (IP65)High pattern consistency across bands for 4G/5G carrier Bands and Gain (max) Port 1 & 2: 9 dBi @ 617-894 MHz, 10 dBi @ 1710-2700 MHz & 11 dBi @ 3400-4200 MHzTwin 16ft (5m) Cables with SMA (M) connectors.
Includes:Mounting Bracket: Z-shaped mounting bracket and Hardware
