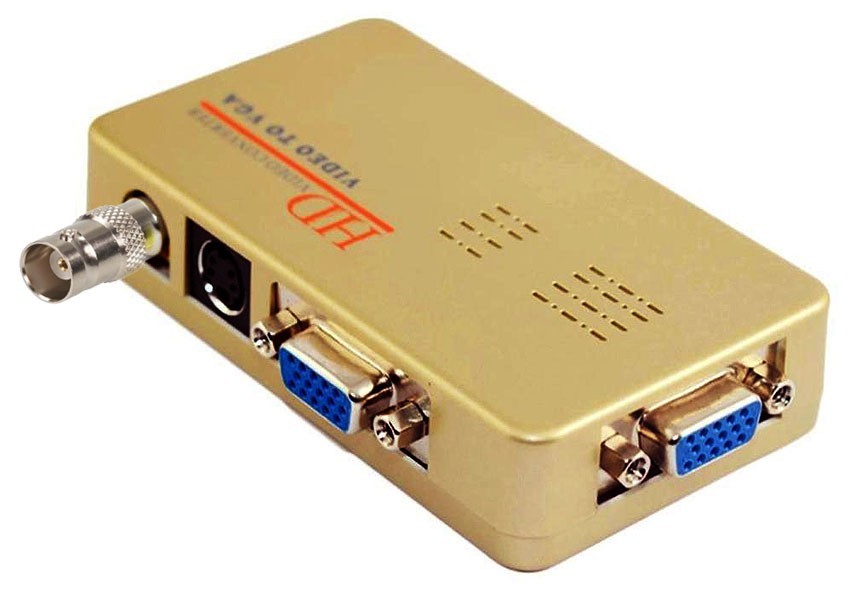

Composite BNC RCA S-Video To VGA 1920x1200 Scaler With PIPSupport
This analog video to VGA converter allows users to watch standard videos at high resolution on a LCD monitor, projector and all other LCD/TFT flat panel displays with VGA inputs.

This converter accepts composite BNC RCA video, S-Video and VGA inputs plugged in at the same time with selectable VGA output resolutions for sharp and crystal clear images.

There areselectable comprehensive VGA output pixel resolutions, ranging from 800x600 to1920x1200 pixels.

This video scaler allows users to use a LCD monitor or projector for watching DVD video or CCTV surveillance camera video on top of computer screenat the same time, typically known as picture-in-picture (PIP).

Real Time Sharp Image Output
This vide to VGA scaler is a premium video line doubler solution byup convertinganalog video into progressive scan VGA format with vivid color on the screen.

The video signal conversion is done automatically in real time so there will be no timing issue or frame lags on its output video.

Multiple Video Inputs
This composite video to VGA converter offers 3 video inputsand a video input switch button is available on the converter for toggling through compositeBNC/RCA video input, S-video input and VGA loop-through with ease.

Scalable VGA Output Resolutions
This converter will up-convert the analog video to various VGA resolution at user's selection. The supported VGA output picture resolutions include:

• 800x600 at 60/75Hz
• 1024x768 at 60/75Hz
• 1280x768 or 1280x1024 at 60Hz
• 1440x1050 or 1440x900 at 60Hz
• 1600x1200 at 60Hz
• 1680x1050 at 60Hz
• 1920x1080 or 1920x1200 at 60Hz

Real-TimeVideo Over VGA Display
This unit supports VGA pass-through for hookup with VGA output from computer or DVR. This allows users to use a regular LCD monitor or projector to display DVD movie, TV show or CCTV surveillance camera video on top of computer screenas picture-in-picture (PIP).

So users can enjoy using computer for internet browsing and other tasks whileviewing the video in PIP window on the same screen so never miss a show or a move.

The available PIP control functions includes:

• PIP Input Selection: Select the desired input video source fromBNC RCA or S-Video to be displayed on the video window over the VGA monitor screen.
• PIP Window Size: Users can re-size the PIP video window screen at 1/16, 1/9, 1/4 and up to full screen for display through the push button.
• PIP Window Location: The PIP video window can be moved around the computer screen among 5 preset locations,upper left corner, upper right corner, center, lower left corner and lower right corner. The PIP window position adjustment is done through the push button on the front panel.

3D Motion Adaptive De-interlacing
With the motion adaptive de-interlacing technology, this unit easily converts the interlaced TV video signals into progressive ones (scanned every line in sequential order), resulting in much less flickering.

Manual Color Adjustment
The built-in video processor provides manual adjustments on all color elements for the picture output quality so users can always get the optimal performance.

A color adjustment menu button located on the side of the converter allows users to perform manual adjustment on brightness, color, hue and saturation level as needed.

• Advanced analog video to VGA up-converter with supreme high VGA/RGBHV output up to 1920x1200pixels.
• Excellent video to VGA converter for converting interlaced video into progressive VGA type for great videoclarity and sharpness.
• Supports 1 composite BNC RCA video input, 1 S-Video input and 1 VGA pass-through.
• Selectable 10-level VGA RGBHV output resolutions with maximum output up to 1920 x 1200 and 1920 x 1080pixels.
• Supports Picture-In-Picture function for watching video over the computer VGA screen.
• PIP TV video sub-window can be resized from 1/16, 1/9, 1/4 screen or full screen display.
• PIP window screen location can bere-positioned among 5 preset locations, upper left corner, upper right corner, center, lower left corner and lower rightcorner.
• Easy input source selection via push button with real time progressive scan VGA output.
• Easy manual selection for desired VGA outputresolution for display.
• Supports all CCTV surveillance cameras and DVRsystem for real time monitoring.
• Premium motion adaptive de-interlacer built infor minimizing jagged edges noticed on big screen.
• Provides crisp and clear images with trueand brilliant color definition.
• Adjustable controls of video color elementsfor brightness, contrast, hue, saturation, color temperature and picturemodes.
• Supports all NTSC and PAL systems withautomatic video mode detection.
• Supports 110V to 240V power for worldwidepower BNC/RCA connector for input 1
• S-Video connector for input 2
• VGA connector for VGA D-sub 15-pin connector for output
• VGAOutput Resolutions:
  • 800x600 at 60/75Hz
  • 1024x768 at 60/75Hz
  • 1280x768 at 60Hz
  • 1280x1024 at 60/75Hz
  • 1440x1050 at 60Hz
  • 1440x900 at 60Hz
  • 1600x1200 at 60Hz
  • 1680x1050 at 60Hz
  • 1920x1080 at 60Hz
  • 1920x1200 at 60Hz
• PushButton Operation:
  • Video input button for selecting videoinput from composite BNC RCA, S-Video or VGA
  • Menu button for Brightness, Color, Saturation, Hue level control
  • Mode selection button for selectingpicture modes between Normal mode, Soft mode, User mode and Bright mode
  • PIP button for configuring PIP size,location or VGA output resolution
• Power Supply: 100V - 240V 50/60 Hz with DC 5V 1Aoutput

• Analog BNC/RCA video to VGA scaler unit
• DC 5V power adapter
• User manual
