High Quality, High Performance, Long work life, Two years Warranty.
Working distance up 20Km by a FC/FC single singlemode fiber optic cable, and compatible with multimode fiber 0~500m
RS485/422/232 data Available, Custom made Available according to client special request .
Overview:

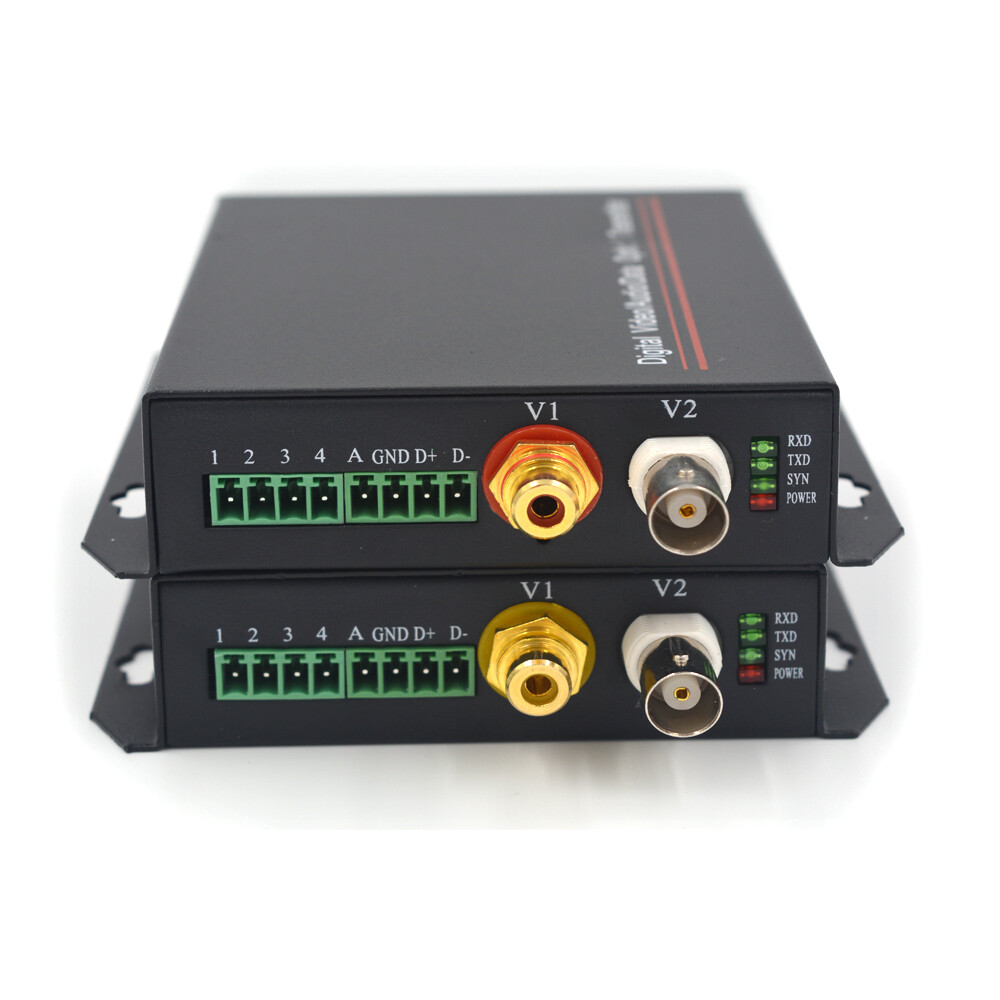

This model is multifunctional digital video/audio/data over one fiber optic media converters with 1 one channel video and onechannel Audio (RCA, forward direction) , specific parameters are as follows:
1) Video parameters:
- Video Interface: 1 channel
- Video Interface Type: BNC
- Video Input / Output Impedance: 75 ohms (unbalanced)
- Video Input / Output voltage: Typical 1Vp-p (peak - peak), the largest 1.2Vp-p
- Video Bandwidth: 10MHz
- Video Sampling: 15MHz high-speed sampling
- Video digital bits wide: 8/10/12 bits (bits)
- Differential gain: (10% -90% APL) DG <1% (typical)
- Differential phase: (10% -90% APL) DP <0.8 (typ)
- Field tilt: <0.5%
- Video SNR (weighted): S / N≥70Db (maximum optical link loss)
2) Audio parameters:
- Audio Interface :1 channel (forward direction, same direction of sending of video )
- Interface terminal: Industrial terminals, audio RCA
- Audio input / output level typical: 0dBm
- Audio input / output impedance: 600 ohms (balanced / unbalanced)
- Audio Input / Output voltage: 0 ~ 2Vp-p (peak - peak)
- Audio Bandwidth: 20MHz ~ 20KHz
- Sampling rate: 48.6K
- Nonlinear distortion factor: ≤1%
- Audio SNR (weighted): S / N≥85dB
3) Transmission distance:
- Multimode: 0 ~500m
- Single-mode: 0 ~ 20 km
Packing include:
- 1x Video/Audio Transmitter
- 1x Video/Audio Receiver
- 1x 3m FC/FC single-mode fiber patch cord
- 2x power supply adapter (default US,UK/EU/AU optional)
- 1x User manual
