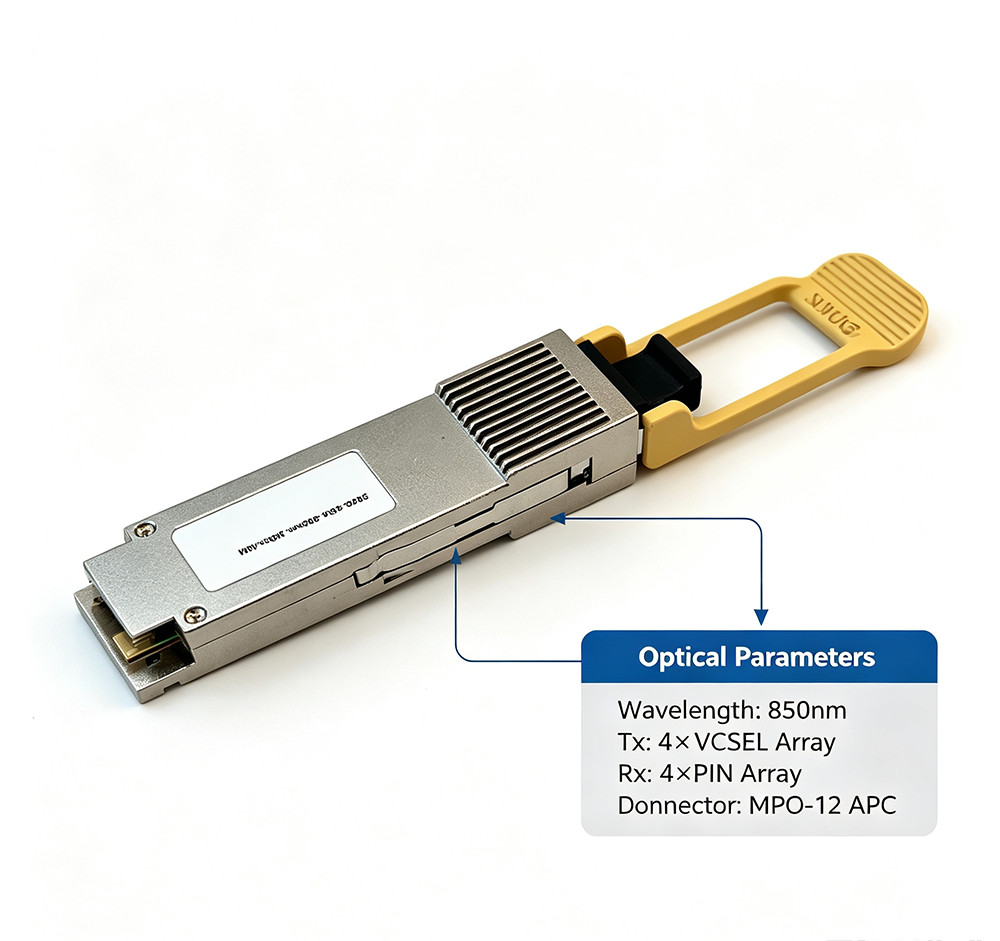

QSFP56 200GBASE-VR4 Optical Transceiver, 850nm, MPO12-APC, 70m OM3 /100m OM4 Multi-mode Fiber
This QSFP56 200G VR4 transceiver module delivers 200G high-speed parallel optical interconnection for data center, AI server and cloud network deployment. It adopts 4-channel 850nm VCSEL array and PAM4 modulation, supporting up to 70m on OM3 MMF and 100m on OM4 MMF fiber with MPO12 APC connector. Hot-pluggable QSFP56 form factor, built-in DDM digital diagnostic monitoring function.
Key Features
200GBASE-VR4, total bandwidth up to 212.5Gbps (4×50G PAM4 per lane)
850nm VCSEL transmitter array + PIN receiver array
MPO12-APC optical connector, yellow pull tab for easy insertion & removal
Transmission Reach: 70m with OM3 multimode fiber; 100m with OM4 multimode fiber
Hot-pluggable QSFP56 MSA compliant form factor
DDM / DOM digital diagnostic monitoring, real-time monitor temperature, voltage, Tx/Rx optical power
+3.3V single power supply, low power consumption ＜5W
Excellent ESD protection & low EMI performance
Commercial temperature range: 0°C ~ +70°C
Compliant with IEEE802.3cd, IEEE802.3bs, SFF-8636 specification
RoHS & CE certified, Class 1 laser safety
Compatible with mainstream brand switches supporting QSFP56 port
Specifications
Form Factor: QSFP56
Rate: 200Gbps (4×50G PAM4)
Wavelength: 850 nm
Connector: MPO12-APC
Fiber: Multimode Fiber (MMF 50/125μm)
Distance: 70m (OM3), 100m (OM4)
Power Supply: +3.3V DC
Power Dissipation: ＜5W
Operating Temp: 0 ~ 70°C
Diagnostic: DDM / DOM Support
Hot Swap: Yes
Applications
Data Center ToR Switch Interconnection
AI Server Cluster High-speed Networking
Cloud Computing & Enterprise High Bandwidth Network
Short-range rack-to-rack server interconnection
Package Includes
1 x QSFP56 200G VR4 Optical Transceiver
Special reminder
Our production process undergoes continuous enhancement, resulting in minor variations in the appearance and color of products manufactured in different batches. These variations may cause discrepancies when compared with the product images displayed in the store. Nevertheless, such differences do not compromise the functionality of the products. Your understanding is greatly appreciated.
