This listing is for:

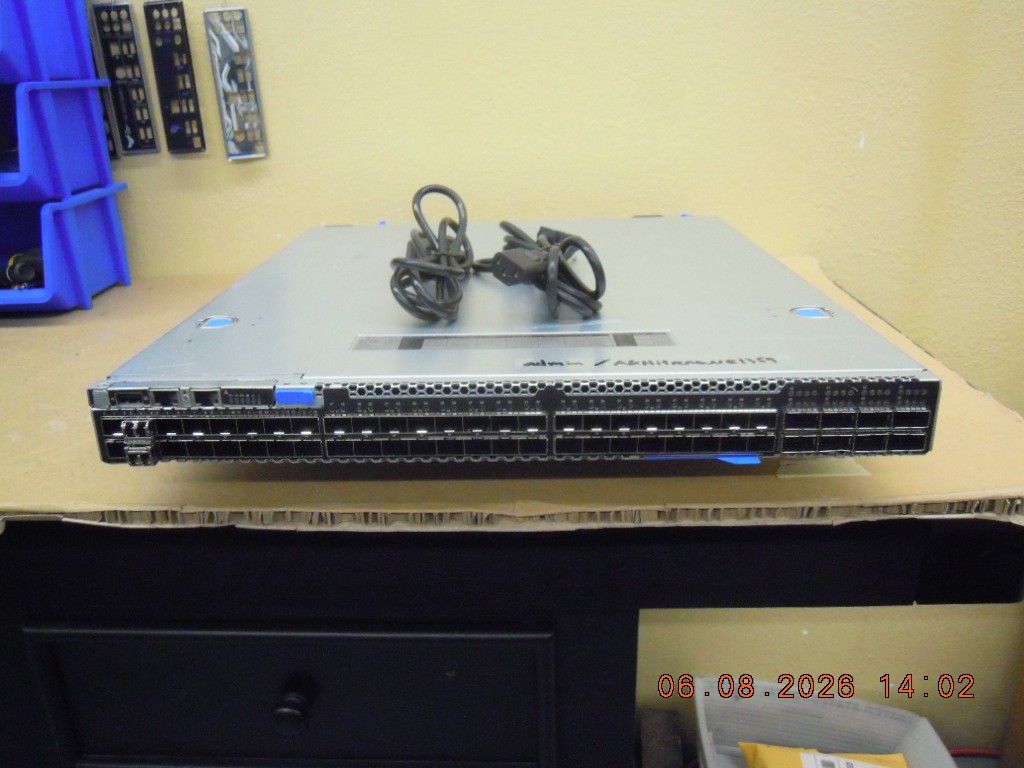

1 x used Quanta Computer IX8 48 ports switch ( 48 x 25GbE SFP & 8 x 100GbE QSFP ) with part no. BES-53248A1-G1-16E1.
2 x used AC power supplies (MC750A4-3).
6 x used fan modules.
2 x used AC power cables (US only).
*** Unit has 1 x 4GB DDR3L RAM and 1 x 32GB M.2 hard drive.
Test Output:
(Routing)#show versionSwitch: 1System EFOS, 3.10.0.3, Linux 5.4.2-b4581018, 2016.05.00.05
Machine Type................................... BES-53248A1
Machine Model.................................. BES-53248
Serial QTFCU3022001D
Part 1IX8BZZ0006
Maintenance Level.............................. QTMC
Burned In MAC Address.......................... B4:A9:FC:98:38:FA
Software Version............................... 3.10.0.3
Operating System............................... Linux 5.4.2-b4581018
Network Processing Device...................... BCM56873_A0
CPLD 0xff040c03
Additional Packages............................ BGP-4
QOS
Multicast
IPv6
Routing
Data Center
OpEN API
Prototype Open API(Routing)#show licenseReboot No
Number of installed licenses................... 0
License Index License Type Status
-------------- ------------------------- -----------------------------------No license file found.(Routing)#show environmentBaseboard Management Controller Present........ Yes
Baseboard Management Controller MAC Address.... B4:A9:FC:96:CA:EB
Baseboard Management Controller IP Address..... 192.168.0.120
Baseboard Management Controller FW Version..... 3.03
Temp 29
Fan Speed, RPM................................. 7360
Fan Duty Level................................. 29%
Temperature traps range: 0 to 45 degrees (Celsius)Temperature Sensors:
Unit Sensor Description Temp (C) State Max_Temp (C)
---- ------ ------------------- ---------- ----------------- --------------
1 1 Temp-1 25 Normal 25
1 2 Temp-2 24 Normal 24
1 3 Temp-3 28 Normal 28
1 4 Temp-4 24 Normal 24
1 5 Temp-5 26 Normal 26
1 6 Temp-6 27 Normal 27
1 7 Temp-7 29 Normal 29
1 8 Temp-CPU 23 Normal 24Fans:
Unit Fan Description Type Speed Duty level State
---- --- -------------- --------- ------------- ------------- --------------
1 1 Fan 1-1 B2F Removable 7360 29% Operational
1 2 Fan 1-2 B2F Removable 6720 26% Operational
1 3 Fan 2-1 B2F Removable 7360 29% Operational
1 4 Fan 2-2 B2F Removable 6400 25% Operational
1 5 Fan 3-1 B2F Removable 7360 29% Operational
1 6 Fan 3-2 B2F Removable 6240 24% Operational
1 7 Fan 4-1 B2F Removable 7200 28% Operational
1 8 Fan 4-2 B2F Removable 6240 24% Operational
1 9 Fan 5-1 B2F Removable 7360 29% Operational
1 10 Fan 5-2 B2F Removable 6400 25% Operational
1 11 Fan 6-1 B2F Removable 7360 29% Operational
1 12 Fan 6-2 B2F Removable 6240 24% OperationalPower Modules:
Unit Power supply Description Type State
---- ------------ ---------------- ---------- --------------
1 1 PS-1 Removable Operational
1 2 PS-2 Removable OperationalDisk usage information:
Unit Total space (KB) Free space (KB) Used space (KB) Utilization (%)
---- ---------------- --------------- --------------- ---------------
1 30,256,912 28,544,436 152,476 0(Routing)#
Disclaimer:
1. If it is not showed in our pictures and/or not mentioned above, then it is not included.
2. Please review all photos and the full item description before placing your order. We are a small business, and each return costs us additional shipping fees that we already paid to send the item to you. To help avoid returns due to “changed my mind,” “didn’t like it,” or “ordered by mistake,” please make sure the item is exactly what you want. If you have any questions, we’re here to help!
Condition:
Removed from working environment.
Tested and in working condition.
Reset back to manufacture default.
This is used item. There will be normal wear and tear.
Warranty Period:
30 days warranty.
