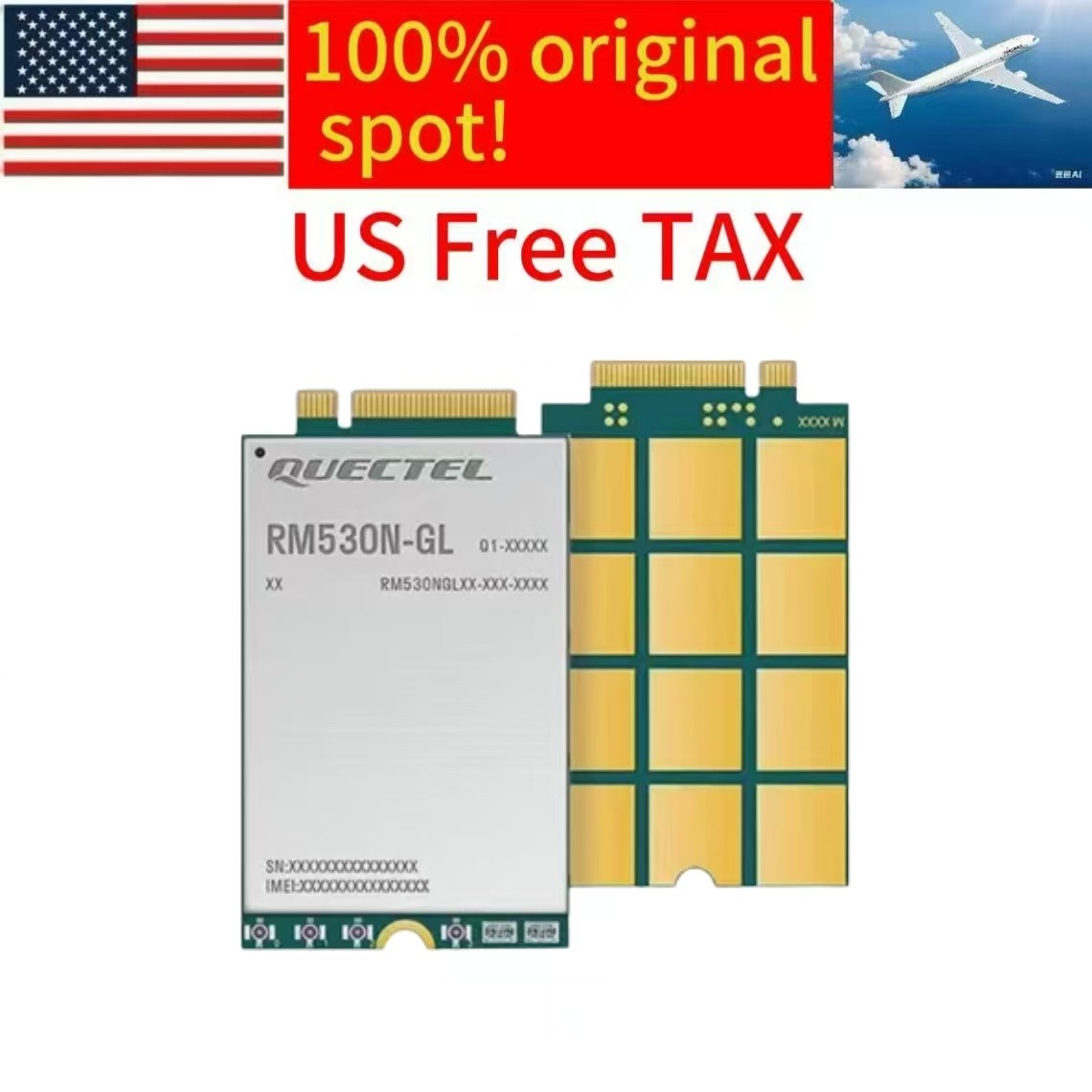

Quectel RM530N‑GL 5G Module
Overview
The RM530N‑GL is an industrial‑grade 5G Sub‑6GHz module optimized for IoT/eMBB applications. Built on 3GPP Release 16, it supports both 5G NSA and SA modes. The M.2 form factor (30 × 52 × 2.3 mm, 8.7 g) is pin‑compatible with Quectel RM520N series, enabling flexible designs for Sub‑6 only or Sub‑6 + mmWave devices.
Key Features
- 5G Performance: Downlink up to 4.0 Gbps, uplink up to 1.4 Gbps
- Global Coverage: Supports mainstream 5G/LTE operators worldwide
- GNSS: Integrated multi‑constellation receiver (GPS/GLONASS/BDS/Galileo/QZSS) for fast, accurate positioning
- Industrial Grade: Extended temperature range −40°C to +85°C
- Interfaces: USB 3.0, PCIe, UART, GPIO, etc.
- OS Support: Windows, Linux, Android (drivers included)
- Optional: DFOTA, VoLTE
Applications
- Industrial routers & gateways
- CPE & home broadband
- Industrial/rugged laptops & PDAs
- Video surveillance & digital signage
Summary
The RM530N‑GL combines high‑speed 5G, global connectivity, and industrial reliability in a compact M.2 package, ideal for mass deployment in IoT and bandwidth‑intensive applications.
