RAM Double Ball Yoke Clamp Mount with RAM Products!

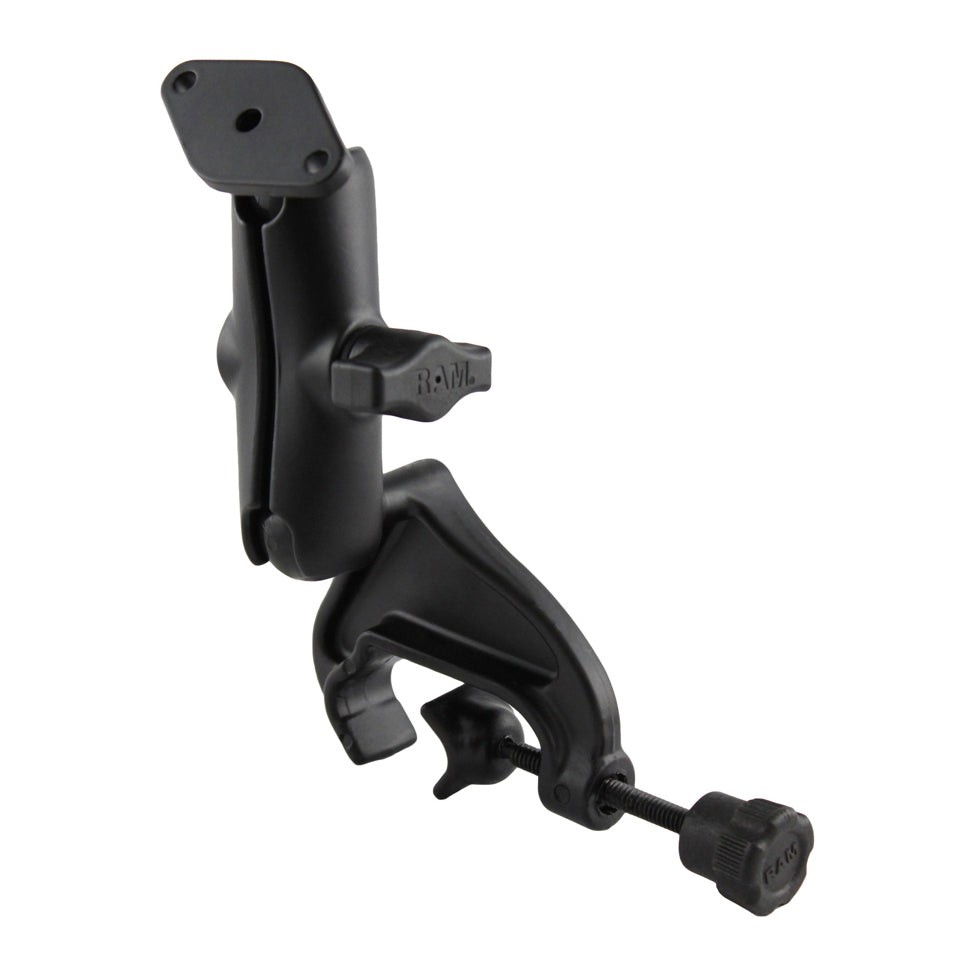

The RAM-B-121-238U consists of a yoke clamp base, standard length double socket arm and 2.43 INCHES x 1.31 INCHES diamond base. The yoke clamp base will fit rails in diameter from 0.625 INCHES to a maximum of 1.25 INCHES . The 1 INCHES rubber ball is at a right angle to the plane of the mount; when connected to a rail, the ball sits parallel to the rail. The diamond base has two holes 1.912 INCHES from center to center, matches the industry standard AMPS hole pattern and will connect to a large variety of RAM Mount and third party cradles. The mount is designed with a RAM 1 INCHES diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm, allowing for almost infinite adjustment and perfect viewing angles.clamp range .625 INCHES - 1.25 INCHES socket to socket length 3 INCHES hole pattern 2-Hole AMPS: 1.912 INCHES plate size 2.43 INCHES x 1.31 INCHES ball size B Size (1 INCHES )weight capacity Standard Use: 2 lbsHeavy-Duty Use: 1 lbmaterials Marine-grade aluminumpackaging type Poly BagWeight 0.72 lbclamp range
.625 INCHES - 1.25 INCHES socket to socket length
3 INCHES hole pattern
2-Hole AMPS: 1.912 INCHES plate size
2.43 INCHES x 1.31 INCHES ball size
B Size (1 INCHES )weight capacity
Standard Use: 2 lbsHeavy-Duty Use: 1 lbmaterials
Marine-grade aluminumpackaging type
Poly BagWeight
0.72 lb
