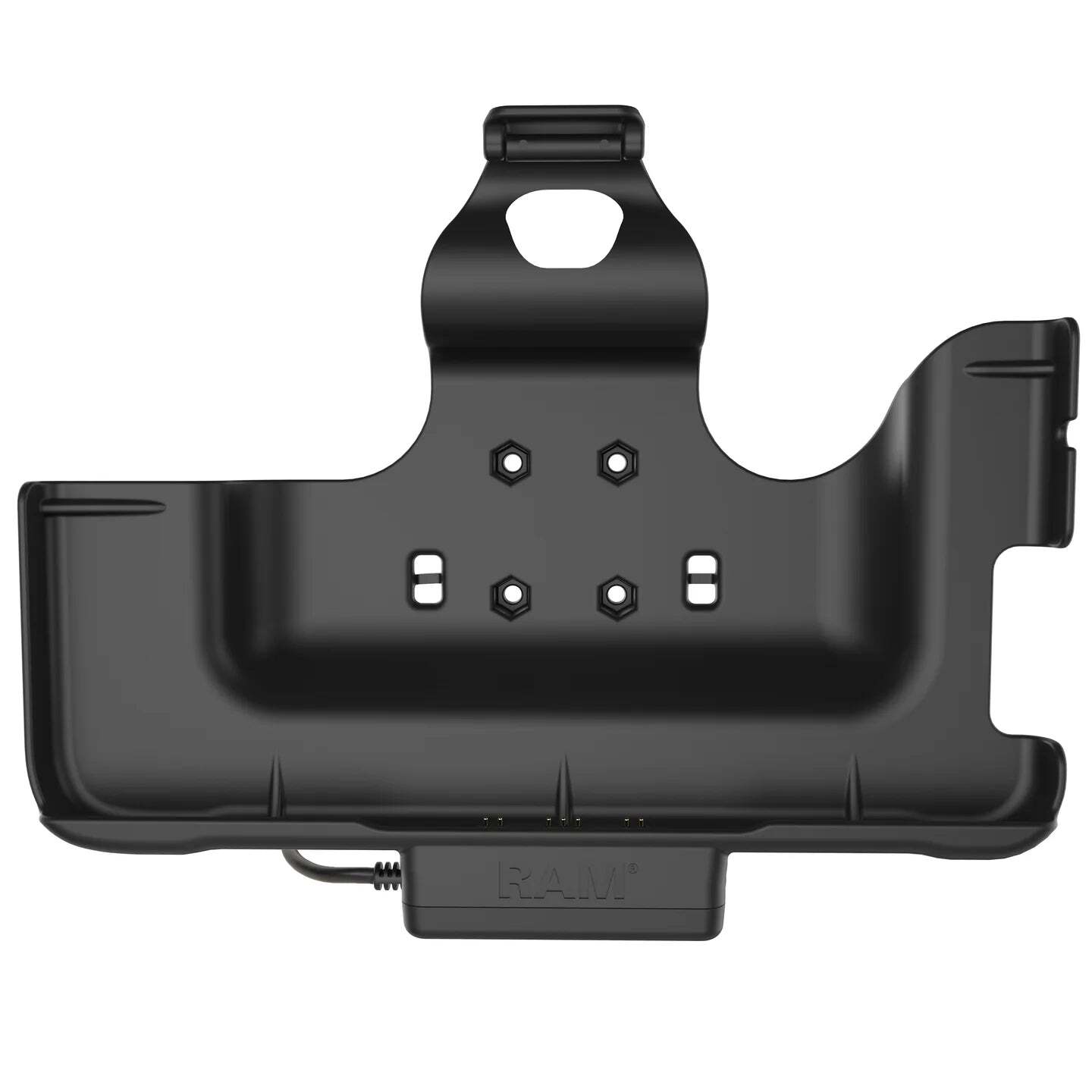

RAM-HOL-SAM52CPU RAM USB-C Powered Dock for Samsung Tab Active4 Pro & Tab Active Pro
MUST BE UNOPENED AND UNUSED TO QUALIFY FOR RETURN.
BALL FOR BACK OF DEVICE IS NOT INCLUDED.
POWER SOURCE IS NOT INCLUDED.
COMPATIBLE DEVICES:
Galaxy Tab Active Pro
Galaxy Tab Active4 Pro
Features
-
Powered dock provides charging capabilities for Samsung Galaxy Tab Active4 Pro and Tab Active Pro through integrated pogo pin connector; for light-duty use and landscape mode only
-
Access to speakers, mics, and headphone jack remain while device is docked
-
Easily insert and remove the Samsung Galaxy Tab Active4 Pro and Tab Active Pro with one hand
-
Compatible with the Samsung OEM skin as well as the RAM ® Skin ™
-
Backed by a 3-year warranty
The RAM ® USB-C Powered Dock for Samsung Tab Active4 Pro & Tab Active Pro (RAM-HOL-SAM52CPU) features integrated pogo pins that power the device via the USB Type-C connector. These pogo pins are compatible with both the RAM ® Skin ™ for the Galaxy Tab Active4 Pro and Tab Active Pro and the factory Samsung skin that's included with the device. In addition, this cradle works perfectly with the RAM ® Skin ™ while utilizing the GDS ® Hand-Stand ™ or GDS ® shoulder strap. While keeping the Galaxy Tab Active4 Pro and Tab Active Pro secure, the RAM ® EZ-Roll'r ™ powered cradle also leaves the device's speakers, mics, and headphone jack exposed and usable. For mounting, pair the cradle with RAM ® round ball bases. Includes a USB Type-C female pigtail for power, as well as one cable clamp and zip ties for cable retention. hardware included
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) Cable Clamp
(2) Large Cable Ties
(5) Small Cable Ties
hole pattern
4-Hole AMPS: 1.181" x 1.496"
materials
High strength composite
packaging type
Poly Bag
input voltage
5.3-5.4VDC
output voltage
5VDC
power output
500mA
input connector
USB Type-C Female
input cable length
215mm
Warranty
3 year warranty
Weight
0.71 lb
Additional Information
This holder is intended only for light-duty applications in landscape mode.
This product will not support the "No Battery Mode" function of the Tab Active4 Pro.
