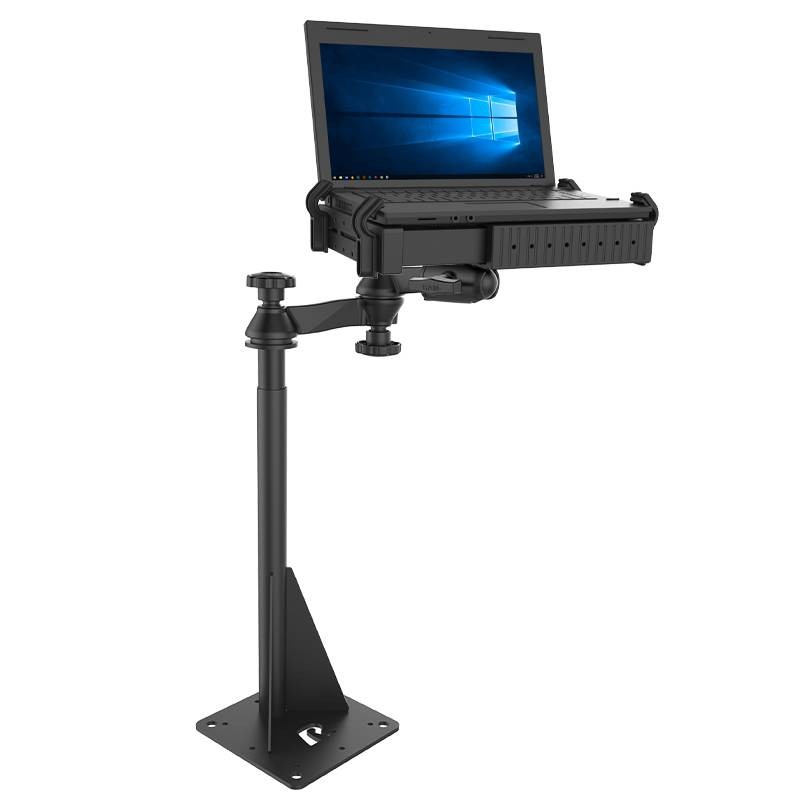

This universal drill-down laptop kit installs quickly and easily into most vehicles by using self
tapping screws, or by drilling and then bolting down the mount base to the vehicle*. This
configuration provides a telescoping feature that ranges from 12 to 18 inches. Dual swing arms
provide articulation and 12 inches of reach for passenger and driver access to the mounted device.
Patented rubber ball and socket joint provides additional adjustment as well as shock and vibration
isolation. The RAM Tough-Tray is spring loaded to accommodate 10" to 16" wide laptops & (17" wide
screens). The tray features four adjustable retaining arms with rubber grip feature. These arms can
be moved both vertically and horizontally. This allows for a custom fit for varying thicknesses of
laptops and the freedom of not blocking ports or drives. A screen support and USB light are also
available to accessorize the tray.HARDWARE INCLUDED
Assembly HardwarePRODUCT DIMENSIONS
Minimum Height: 25.05"
Maxium Height: 32.05"TRAY DIMENSIONS
Width Range: 10" - 16"
Side Arm Clamp Height: .5" - 1.75"
Tray Depth: 10"
Tray Thickness: 2.125"HOLE PATTERN
Base: See DrawingPLATE SIZE
8" x 8"BALL/SOCKET SIZE
C Size (1.5")MATERIALS
Powder coated steel
Marine grade-aluminum
High strength compositePACKAGING TYPE
BoxWEIGHT
17.0 lbs.
