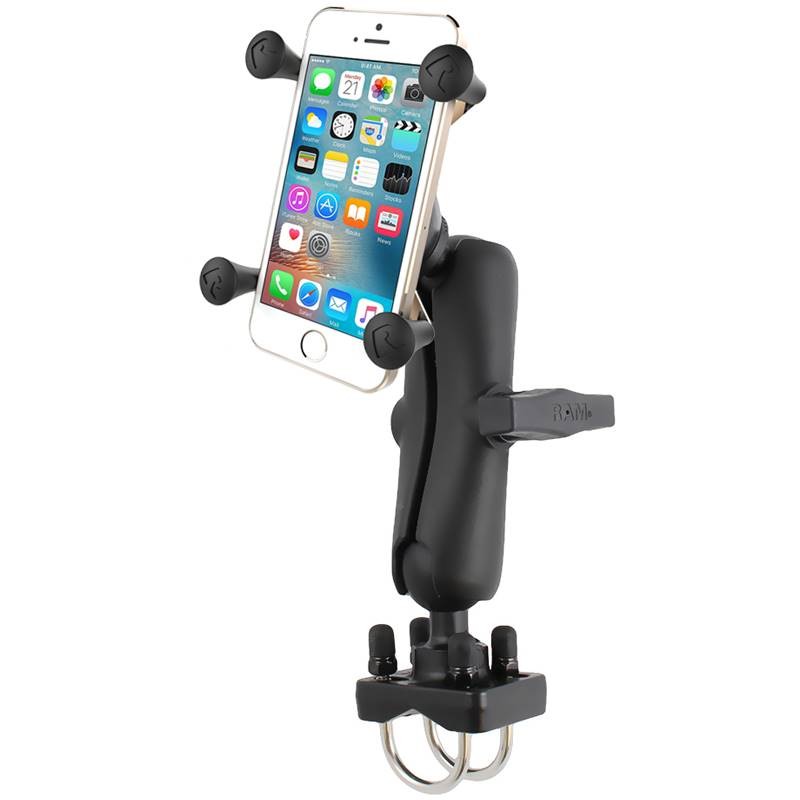

The RAM-101U-235-UN7 consists of a double u-bolt base, double socket arm and universal X-Grip
cradle. Included in this package is hardware that will accommodate rails from 1" to 1.25" in
diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The
mount is designed with a RAM 1.5" diameter patented rubber ball and socket system that has
adjustment points at both ends of the double socket arm; this allowing for almost infinite
adjustment and perfect viewing angles. The included X-Grip cradle has a clean and clever four leg
design that sports great holding power without hiding your phone behind foam pads and plastic. The
spring loaded X-Grip cradle expands and contracts, allowing for a perfect custom fit of your cell
phone. The perfect complement to the modern sleek interior of today's vehicles, the RAM X-Grip is
the cell phone cradle evolved.HARDWARE INCLUDED
(1) Optional Tether
(1) Glue Tube for Rubber Caps
(2) 1/4"-20 U-Bolts for 1" - 1.25" Rails
(4) 1/4"-20 Nylock Nuts
(4) Rubber CapsHOLDER DIMENSIONS
Width Range: 1.875" - 3.25"
Depth Range: .875" maxCLAMP RANGE
1" - 1.25" diameterSOCKET-TO-SOCKET LENGTH
4.66"BALL/SOCKET SIZE
C Size (1.5")WEIGHT CAPACITY
4 lbsMATERIALS
Marine-grade aluminum
High strength composite
Stainless steelPACKAGING TYPE
Poly BagADDITIONAL INFORMATION
WEIGHT
1.33 lbs.
