RAM-A-CAN II Universal Cup Holder Base with RAM Products!

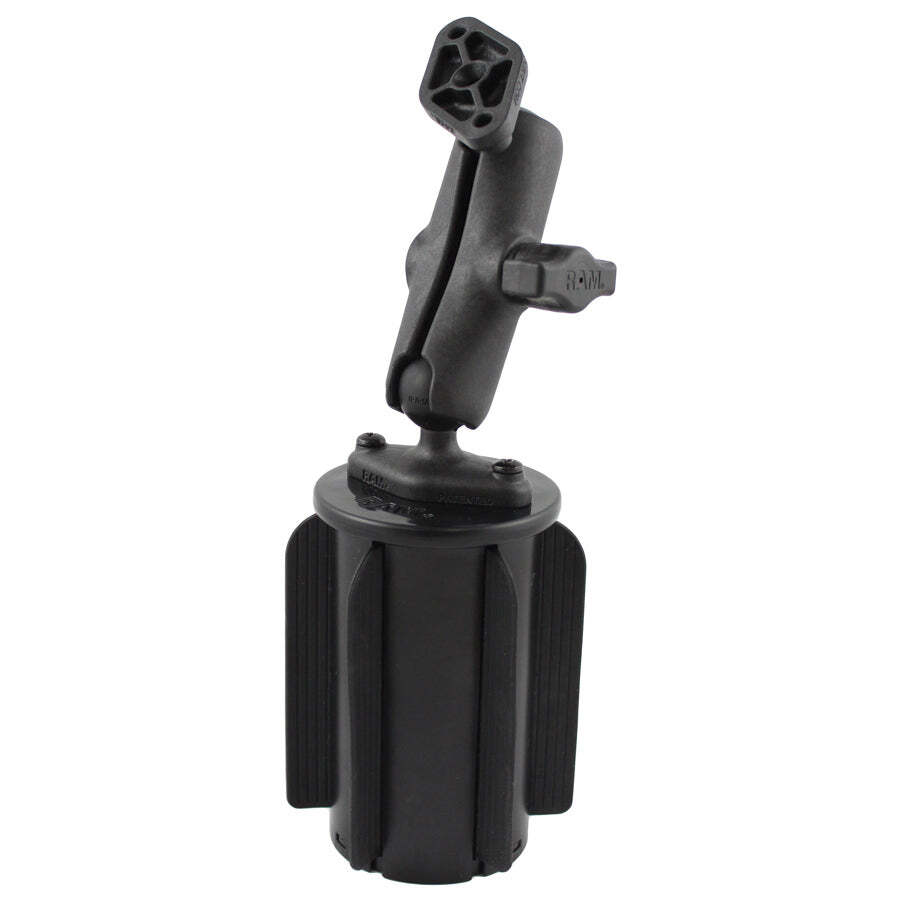

The RAP-299-3-B-102AU is a pre-assembled cup holder mounting system that consists of a double socket arm, two diamond bases and RAM-A-CAN II cup holder base. The diamond bases measure 2.43 INCHES x 1.31 INCHES diamond base and contain two holes 1.912 INCHES from center to center, positioned at both ends of the diamond base. The hole pattern found on the diamond bases will connect to many RAM cradles, as well as third party cradles including mounts with the industry standard AMPS hole pattern. Designed into the mount is a 1 INCHES diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. The RAM-A-CAN II cup holder base serves as a mounting point for the diamond base.hardware included Assembly Hardwareproduct dimensions Overall Height: 9.75 INCHES wedge dimensions Fits cup holders between 2.57 INCHES - 3.5 INCHES inside diametersocket to socket length 3 INCHES hole pattern 2-Hole AMPS: 1.912 INCHES ball size B Size (1 INCHES )weight capacity Standard Use: 2 lbsHeavy-Duty Use: 1 lbmaterials High strength compositepackaging type Poly BagWeight 1.54 lbhardware included
Assembly Hardwareproduct dimensions
Overall Height: 9.75 INCHES wedge dimensions
Fits cup holders between 2.57 INCHES - 3.5 INCHES inside diametersocket to socket length
3 INCHES hole pattern
2-Hole AMPS: 1.912 INCHES ball size
B Size (1 INCHES )weight capacity
Standard Use: 2 lbsHeavy-Duty Use: 1 lbmaterials
High strength compositepackaging type
Poly BagWeight
1.54 lb
