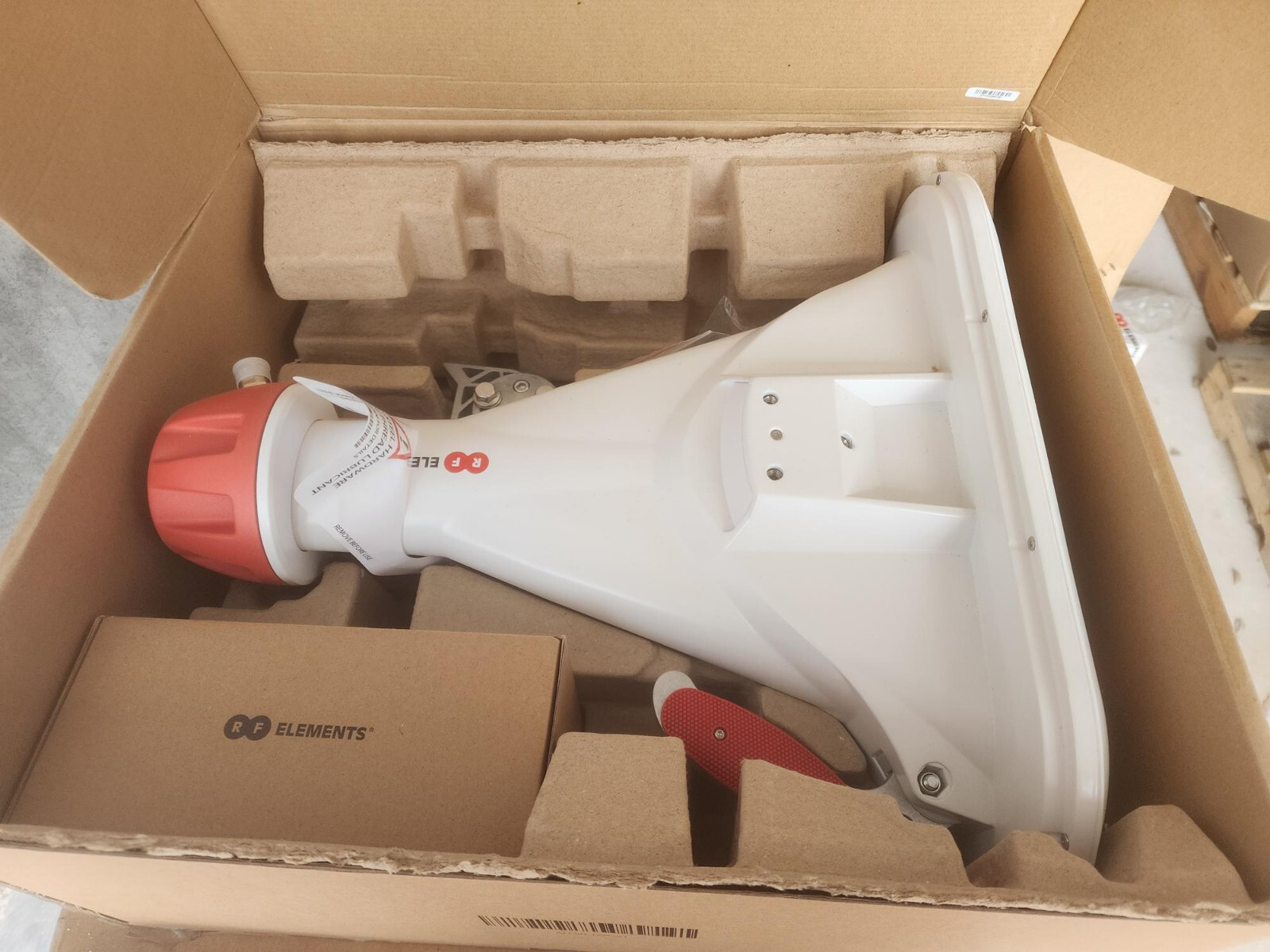

Asymmetrical Horn CC Antennas have unique beam shape. The beam cross-section in bore sight is elliptical: wide in azimuth and narrow in the elevation plane. This is useful for deployments where asymmetrical beam shape delivers better coverage.Asymmetrical Horn CC Antennas have naturally suppressed side lobes because of their optimized design: they focus energy into a single main beam. Absence of side lobes enables excellent noise immunity of a network when using Asymmetrical Horn CC Antennas.Asymmetrical Horn CC Antennas have balanced Horizontal and Vertical beam patterns. Balanced H+V beams are very difficult to achieve for antenna with asymmetrical beam shape and this is the area where all competitive products on the market fail. Balanced H+V beams are critical feature for stable link performance when switching channels.

• Frequency Range: 5180 - 6000 MHz
• Gain: 16 dBi
• Azimuth Beam Width -6 dB: H 90° / V 90°
• Elevation Beam Width -6 dB: H 25° / V 25°
• Mechanical Adjustment: ± 25° Elevation, ± 20° Azimuth
• Pole Mounting Diameter: 36 - 80 mm
