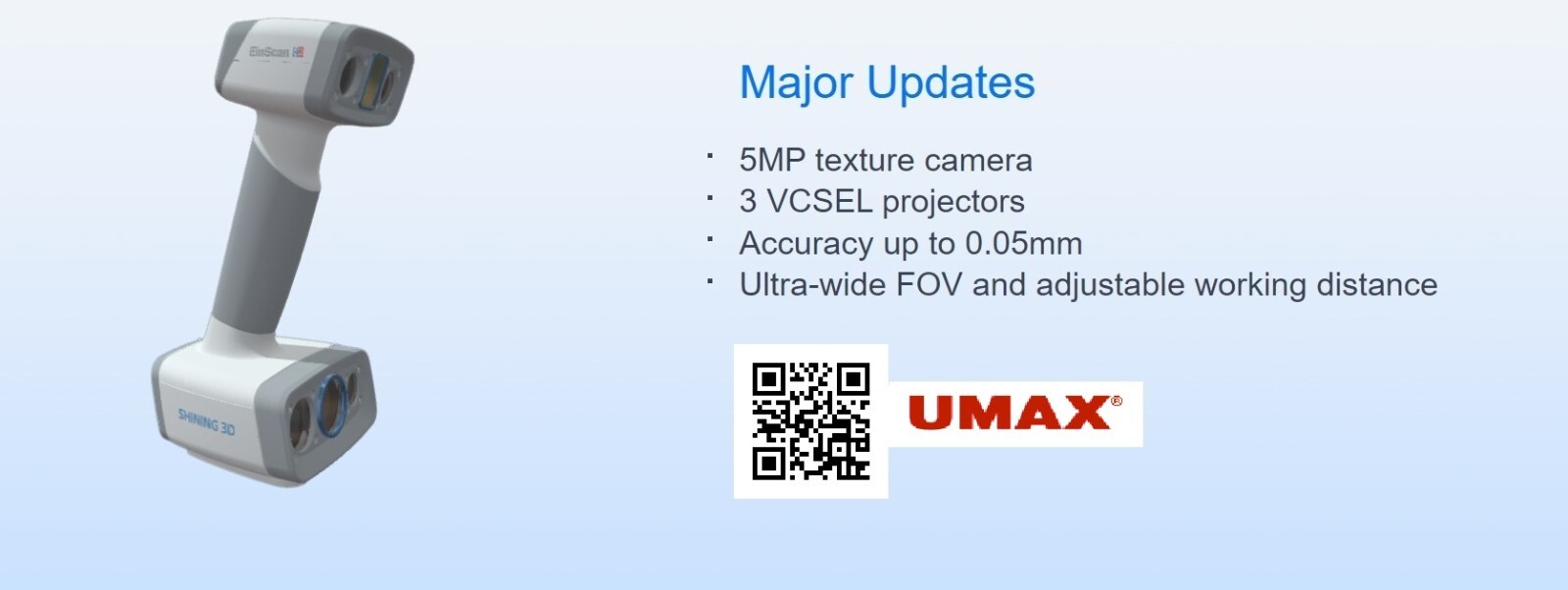

Shining 3D EinScan H2 Handheld 3D Scanner

The Shining 3D EinScan H2 is a portable handheld 3D scanner designed for both experienced creators and new users who need to convert physical objects, faces, and full-body subjects into detailed digital models. Its combination of white LED structured light and invisible infrared scanning provides flexible capture options for applications ranging from prosthetics and cultural preservation to digital art, furniture design, and custom-fit clothing.

Key BenefitsTwo Scanning Technologies in One Device

The EinScan H2 combines LED structured light and invisible infrared light in a single handheld scanner. White Light Mode is suited to detailed general-purpose scanning, while IR Mode expands capture capabilities to dark-colored objects and human hair and supports comfortable face scanning without additional lighting.

Capture Detailed Geometry at High Speed

White Light Mode delivers up to 1,200,000 points at 20 FPS scan and align speed, while IR Mode delivers up to 1,060,000 points at 20 FPS scan and align speed. This combination of point acquisition and frame rate helps reduce the time required to capture physical subjects while maintaining detailed digital data.

Flexible Scanning for Different Subject Sizes

The scanner provides adjustable working distances from 200 to 1500 mm, allowing the operator to work across a broad range of scanning situations. White Light Mode offers a maximum FOV of 420 x 440 mm, while IR Mode provides a maximum FOV of 780 x 900 mm, making the technology applicable to objects as well as larger subjects.

High-Accuracy Digital Capture

White Light Mode provides scan accuracy of up to 0.05 mm, while the supplied key-specification section lists 0.01 mm (IR). Point distance is specified at 0.25 to 3 mm, supporting capture of both overall form and finer surface geometry.

Designed for Portable, Practical Operation

At 1.6 lb / 731 g and 9.3 x 4.3 x 4.3" / 237 x 110 x 108 mm, the EinScan H2 is designed for handheld operation across a variety of environments. Its intuitive software, ergonomic design, USB-A 3.0 / 3.1/3.2 Gen 1 connection, and hybrid light-source architecture support a streamlined scanning workflow.

Technical SpecificationsSpecificationDetailsScan Speed — White Light Mode20 fps up to 1,200,000 points (White Light Mode)Scan Speed — IR Mode20 fps up to 1,060,000 points (IR Mode)Scan Area30.7 x 35.4" / 780 x 900 mmAccuracy — LED0.05 mm (LED)Accuracy — IR0.01 mm (IR)Working Distance7.9 to 59.1" / 200 to 1500 mmDepth of Field18.5" / 470 mmPoint Distance9.84 to 118.1 mil / 0.25 to 3 mmImage Resolution5 MPLight SourceLED + IRFile FormatsASC, OBJ, P3, PLY, STL, 3MFSystem ConnectionUSB-A 3.0 / 3.1/3.2 Gen 1DisplayNoOS CompatibilityWindows 10 or LaterMemory Requirement32 GBVRAM Requirement4 GB (Minimum)Operating Conditions32 to 104°F / 0 to 40°C at 10 to 90% HumidityCertificationsCE, FCC, KC, RoHS, WEEEDimensions9.3 x 4.3 x 4.3" / 237 x 110 x 108 mmWeight1.6 lb / 731 gPackage Weight24.34 lbBox Dimensions (LxWxH)23.5 x 15 x 10.4"White Light Mode

• Up to 1,200,000 points at 20 FPS scan and align speed
• Adjustable depth of field between 200 to 700mm
• Maximum Field of View (FOV) of 420 x 440 mm
• Point distance of 0.2 to 3.0mm
• Up to 0.05 mm scan accuracy
• Alignment modes: Marker, Feature, Hybrid, and Texture Alignment Modes
• Eye-safe White Light Mode

IR Mode

• Up to 1,060,000 points at 20 FPS scan and align speed
• Adjustable depth of field between 200 to 1500mm
• Maximum Field of View (FOV) of 780 x 900m
• Point distance of 0.2 to 3.0mm
• Up to 0.1mm scan accuracy as stated in the IR Mode description
• Invisible infrared light source
• Supports scanning of dark-colored objects and acquisition of images of human hair
• Enables face scanning without the need for additional lighting

Additional Design and Application Details

• Hybrid structure light source technology integrates LED structured light and invisible infrared light into one device.
• Advanced smart presets support 3D scanning across a broad range of applications.
• Applications stated in the source material include prosthetics, virtual display, cultural preservation, digital art, custom-fit clothing, education, furniture design, and much more.
• The scanner is LED Light & Class 1 eye-safe.
• Mesh/output workflow supports ASC, OBJ, P3, PLY, STL, 3MF file formats.

Specification note: The supplied source material contains two different IR accuracy figures. The IR Mode description states up to 0.1mm scan accuracy, while the Key Specs section states 0.01 mm (IR). Both figures have been preserved here rather than selecting or inventing a value.

Specification note: The supplied source also lists the IR maximum FOV as 780 x 900m in the IR Mode description, while the Key Specs section gives the scan area as 30.7 x 35.4" / 780 x 900 mm. Both source entries are preserved; the latter uses the explicitly specified mm unit.

System Requirements

The source material specifies the following requirements:

• OS Compatibility: Windows 10 or Later
• Processor: Not specified in the provided source material
• Memory Requirement: 32 GB
• Graphics Card:RTX 3060
• VRAM Requirement: 4 GB (Minimum)
• Interface / System Connection: USB-A 3.0 / 3.1/3.2 Gen 1

Product Summary

The EinScan H2 provides a flexible handheld approach to 3D digitization by combining white LED structured light, invisible IR scanning, 20 FPS operation, up to 1,200,000 points, 5 MP image resolution, and multiple alignment modes. Its portable form factor and broad working-distance range make it suitable for professional workflows where operators need to digitize objects, dark surfaces, hair, faces, and larger subjects while retaining control over the scanning method and output format.
