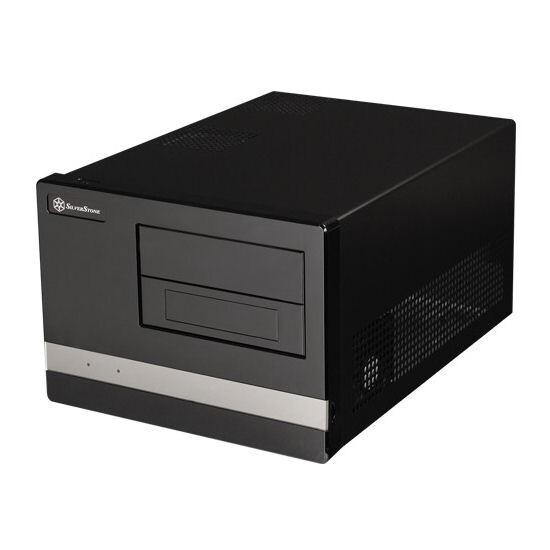

Introduction The SG02F, as the successor to the SG02 is an evolutionary step forward in both performance and the capabilities over the original Sugo chassis, the SG01. With the case now capable of handling even more powerful graphics cards than ever before, the SilverStone engineers were still able to keep the smaller dimension in tact. Although SG02F’s front panel design is unchanged from its predecessor, its styling and function continues to stand out from ordinary SFF designs. The same can also be said of its tried and true chassis layout, which is still capable of accepting larger ATX power supply or optical drives than other SFF cases available. Built based on a brand new steel structure, the SG02F is sure to please potential builders looking for primarily silent applications.
Special Feature Steel structure for silent buildsModern and cleanly styled SFF chassisEnhanced cooling layout for high performanceDual 5.25� and 3.5� drive baysMicro ATX motherboard & ATX PSU compatibleExtended-length expansion cards support
Remark
Graphic card length reference:AMD Radeon HD 5970 - 12.2"AMD Radeon HD 6990 - 12"AMD Radeon HD 6970 - 11"AMD Radeon HD 6950 - 11"AMD Radeon HD 5870 - 11"AMD Radeon HD 6870 - 10.5"NVIDIA GeForce GTX580 - 10.5"NVIDIA GeForce GTX480 - 10.5"AMD Radeon HD 5850 - 9.5"NVIDIA GeForce GTX470 - 9.5"AMD Radeon HD 6850 - 9" If an expansion card is longer than 9.6� and it needs to be installed in the first slot, please refer to the manual for installation instructions.
Material
ABS & acrylic front panel, SECC bodyMotherboard
Micro Bay
External 5.25� x 2 3.5" converter x 1Internal 3.5� x 2Cooling System
Front --Rear 1 x 80mm fan slotOptional cross-flow fanSide 1 x 80mm intake fan 2050rpm Option 80mm or 70mm in thick of 25mm, 15mm or 10mmTop 1 x 80mm fan slotBottom --Internal --Expansion Slot
4
Front I/O Port
USB3.0 port x 21394 Firewire x 1Audio x 1MIC x 1Power Supply
Optional standard PS2 (ATX)Expansion Card
Full size long cards capable (12�)*Dimension
270 mm (W) x 212 mm (H) x 393 mm (D)
