Aztek ComputersBusiness seller · ships from Frisco, TXStarTech.com 2-Port PCI Express 10GBase-T Ethernet Network Card - with Intel X540 Chip - PCI Express x4 - 20 Gbit/s Data Transfer Rate - Intel X540 - 2 Port(s) - 2 - Twisted Pair - 10GBase-T - Plug-in CardNewSTARTECHMPN ST20000SPEXIProduct photoRepresentative image. The item you receive matches the model, brand and condition listed.Condition: NewBrand new, unused item in its original packaging.Item detailsBrandSTARTECHModel / MPNST20000SPEXIUPC / EAN065030860598ConditionNewShipping weight6.75 lbPackage dimensions8.23 × 6.69 × 1.65 inFeaturesGeneral Part Number:ST20000SPEXI

Brand Name:StarTech.com

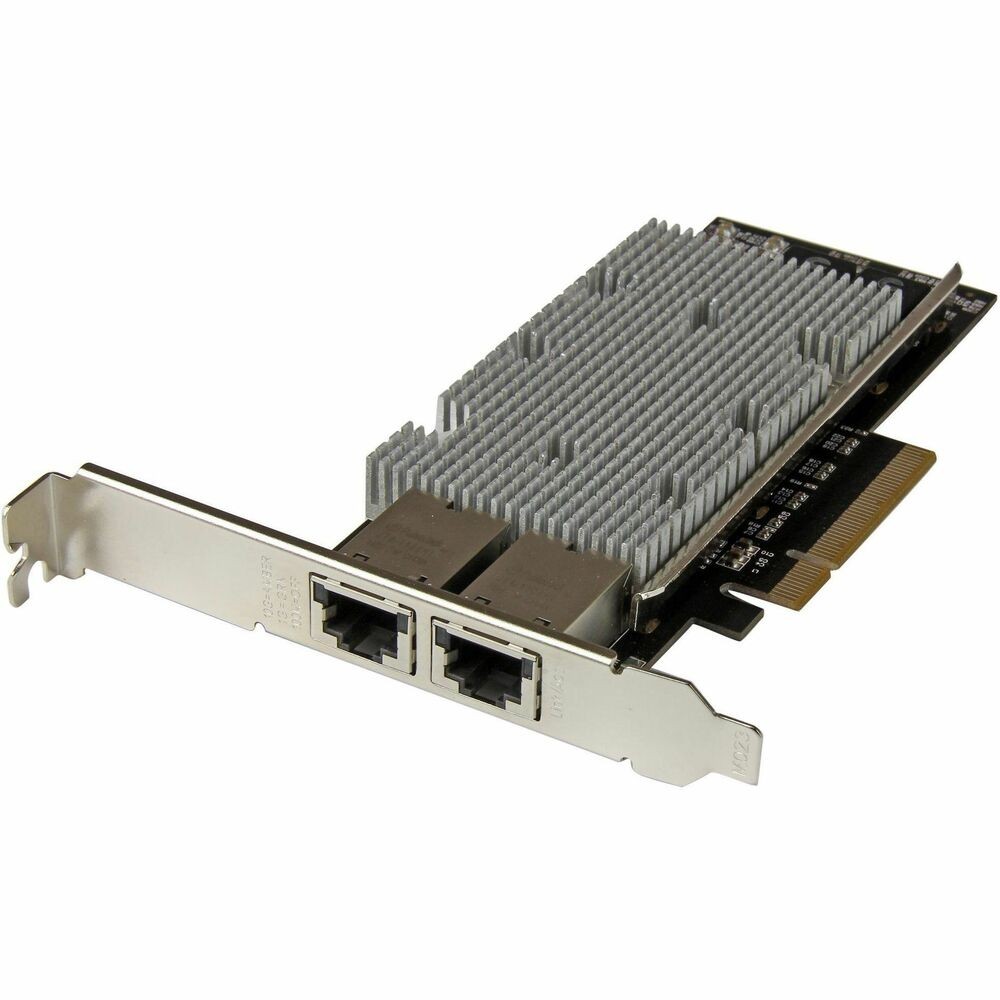

Product Name:2-Port PCI Express 10GBase-T Ethernet Network Card - with Intel X540 Chip
Marketing Information:Now, you can add 10 GbE networking, while minimizing your deployment costs. This 10Gbase-T network card (NIC) lets you add two RJ45 ports through a single PCI Express slot, to deliver reliable high-speed network connections to your workstations and servers without draining your budget.

Versatile and cost effective

Compatible with a broad range of operating systems, this versatile dual-port NIC is ideal for many business applications that require upgrades to servers or workstations. It's a cost-effective way to enhance your server or computer capabilities by adding two powerful 10-Gigabit Ethernet ports, with support for advanced features such as VLAN tagging, jumbo frames, and Auto-MDIX.

Reliable, high-performance connectivity

This 2-port PCI Express 10GBase-T network card features the Intel® X540 chipset, designed to deliver the power, performance and enhanced capabilities you need for reliable network connections to your server or computer. The X540 chipset provides many advanced features including Intel® Virtualization Technology for connectivity and PXE network boot support.

Compliant with IEEE 802.3/u/ab standards, the network card delivers a dependable way to upgrade or replace your existing network ports with dual 100/1000/10G compatible RJ45 ports, providing throughput capability of up 10Gbps in each direction (20Gbps total). It connects through a single, four-lane (x8 or higher) PCI Express slot.

Easy installation

With a dual-profile design, the PCI Express network card installs easily into a wide range of computer/server chassis, regardless of form factor. The card comes equipped for installation in a full-sized chassis, and includes a low-profile/half-height installation bracket that you can use as needed.

The ST20000SPEXI is backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer

Packaged Quantity:1 Each
Product Type:10Gigabit Ethernet Card
Technical InformationChipset Manufacturer:Intel
Chipset Model:X540
Interfaces/PortsHost Interface:PCI Express x4
Total Number of Ports:2
Number of Network (RJ-45) Ports:2
Media & PerformanceMedia Type Supported:Twisted Pair
Maximum Data Transfer Rate:20 Gbit/s
Network & CommunicationNetwork Technology:10GBase-T
Physical CharacteristicsColor Family:Black
Product Color:Black
Form Factor:Plug-in (Approximate):5.50 oz
MiscellaneousPackage Contents:

2-Port PCI Express 10GBase-T Ethernet Network Card - with Intel X540 Chip
• 1 x low-profile Bracket
• 1 x Instruction Manual

Device Supported:Server
System Requirements:

Windows® 7, 8, 8.1, 10
• Windows Server® 2008 R2, 2012, 2012 R2, 2016, 2019
• (Windows Drivers are supported in 64-bit only)
• Linux 2.4.x to 4.11.x LTS versions only
• ESXi 5.1/5.5

Environmentally Friendly:Yes
Country of Origin:China
Description

StarTech.com 2-Port PCI Express 10GBase-T Ethernet Network Card - with Intel X540 Chip
