8 hot-swappable drive trays to accommodate up to 2.5\" or 3.5\" SAS-12G / SATA-6G drives with two LED indicators for displaying drive operation status

Supports Micro-ATX motherboard and ATX (PS2) power supply

Compatible with 240 or 280mm liquid cooling radiators

Supports 1 x 9.5mm slim ODD

Support for a total of 11 drives

Dust filters included in key areas

Front I/O includes: 1 x USB Type-C, 2 x USB 3.0 & 1 x combo audio

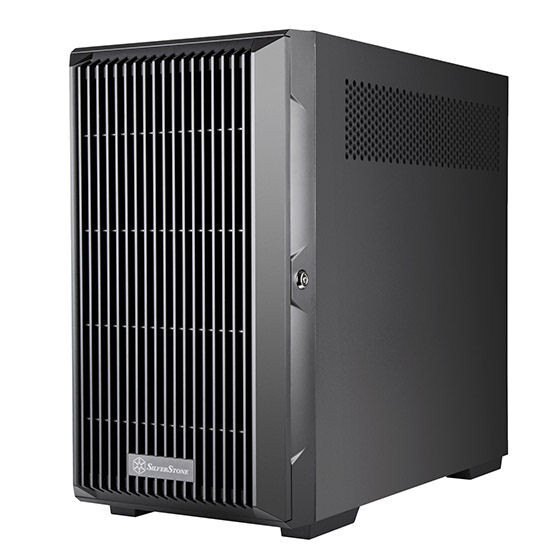

Model No.

SST-CS382

Material

Plastic front door, galvanized steel body

Motherboard

Micro-ATX, Mini-DTX, Mini-ITX

HDD

backplane

8 port x SAS 12Gbit/s* / SATA 6Gbit/s

interface

SATA drive up to 6 Gbit/s (depends on drive speed)

SAS drive up to 12 Gbit/s (depends on drive speed)

Power connector on backplane

4 pin peripheral x 2, 15 pin SATA x 2

Drive bay

External

2.5” / 3.5” SAS / SATA external hot-swapping x 8

5.25” x 1

9.5mm slim optical drive x 1

Internal

3.5” x 1

2.5” x 2

Cooling system

Rear

120mm x 1

Top

120mm / 140mm x 2 (optional)

Internal

92mm x 2

Radiator support

Rear

120mm x 1

Top

120mm / 140mm / 240mm / 280mm x 1**

Limitation of CPU cooler

168mm

Expansion slot

5

Limitation of expansion card

369mm, width restriction –6.85\" (174mm)**

Power supply

Standard ATX (PS2) (optional)

Limitation of PSU

180mm

Front I/O port

USB Type-C x 1

USB 3.0 x 2

Combo audio x 1

LED Indicators

Chassis

Power ON: White

Accessing: White blinking

HDD Tray

HDD Power LED: Green

HDD Access : Blue blinking

Dimension

217mm (W) x 405mm (H) x 451mm (D), 39.64 Liters

8.54” (W) x 15.94” (H) x 17.76” (D), 39.64 Liters
