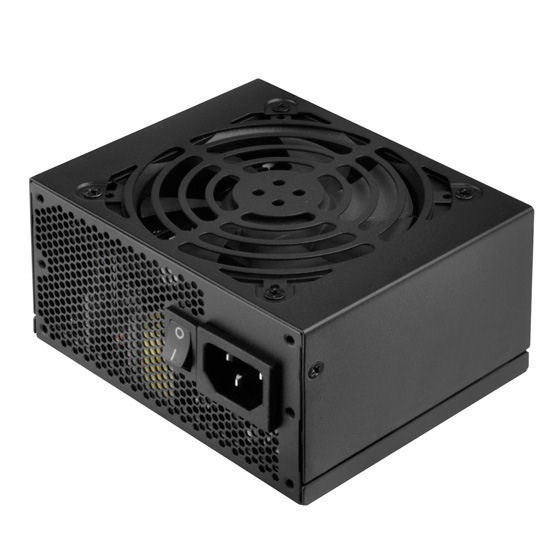

￭ Supports standard SFX form factor and ATX via included bracket

￭ 450W continuous power output at 50℃ operating temperature rated for 24/7 operation

￭ 80 PLUS Bronze level efficiency (82%~85% efficiency at 20%~100% loading)

￭ Class-leading single +12V rail with 36A

￭ Silent running 92mm fan (V3.0)

￭ Single PCI-E 8pin and dual PCI-E 6pin connectors support

￭ Active PFC

Model No.SST-ST45SF-V3Max. DC Output450WPower density567W per literLoad Range (Amps)/////Min.(Amps)0A0A0.3A0A0ARange (%)±5%±5%±5%±5%±10%Line Range (%)±5%±5%±5%±5%±10%Line Paint）combined +3.3, +5V110W (V3.0)
120W (V2.0)combined +12V450W / 37.5A (V3.0)
432W / 36A (V2.0)Input Voltage90 ~ 264 VrmsInput Frequency Range47Hz ~ 63HzPFCActive PFC.（PF>0.9 at Full Load）Efficiency82%~85%（20% to 100% loading）MTBF100,000 hoursOperating temperature0 ~ 40℃ (V3.0)
10°C ~ 50°C (V2.0)ProtectionOver current protection
Over voltage protection
Short circuit protection
Over Power Protection (V3.0 only)
Under Voltage Protection (V3.0 only)Connectors1 x 24 / 20-Pin motherboard connector（300mm）
1 x 8 / 4-Pin EPS / ATX 12V connector（400mm）
1 x 8/6-Pin PCIE connector（400mm）
1 x 6-Pin PCIE connector（400mm / 150mm）
3 x SATA connector（300mm / 220mm / 100mm）
2 x 4-Pin Peripheral connector （300mm / 200mm）
1 x 4-Pin Floppy connector（300mm / 200mm / 200mm）Cooling SystemSingle 92mm silent fan (V3.0)
Single 80mm silent fan (V2.0)Noise Level18dBA minimumDimension125 mm (W) × 63.5 mm(H) × 100 mm(D)Weight1.1 kg (V3.0)

Form factorSFX
