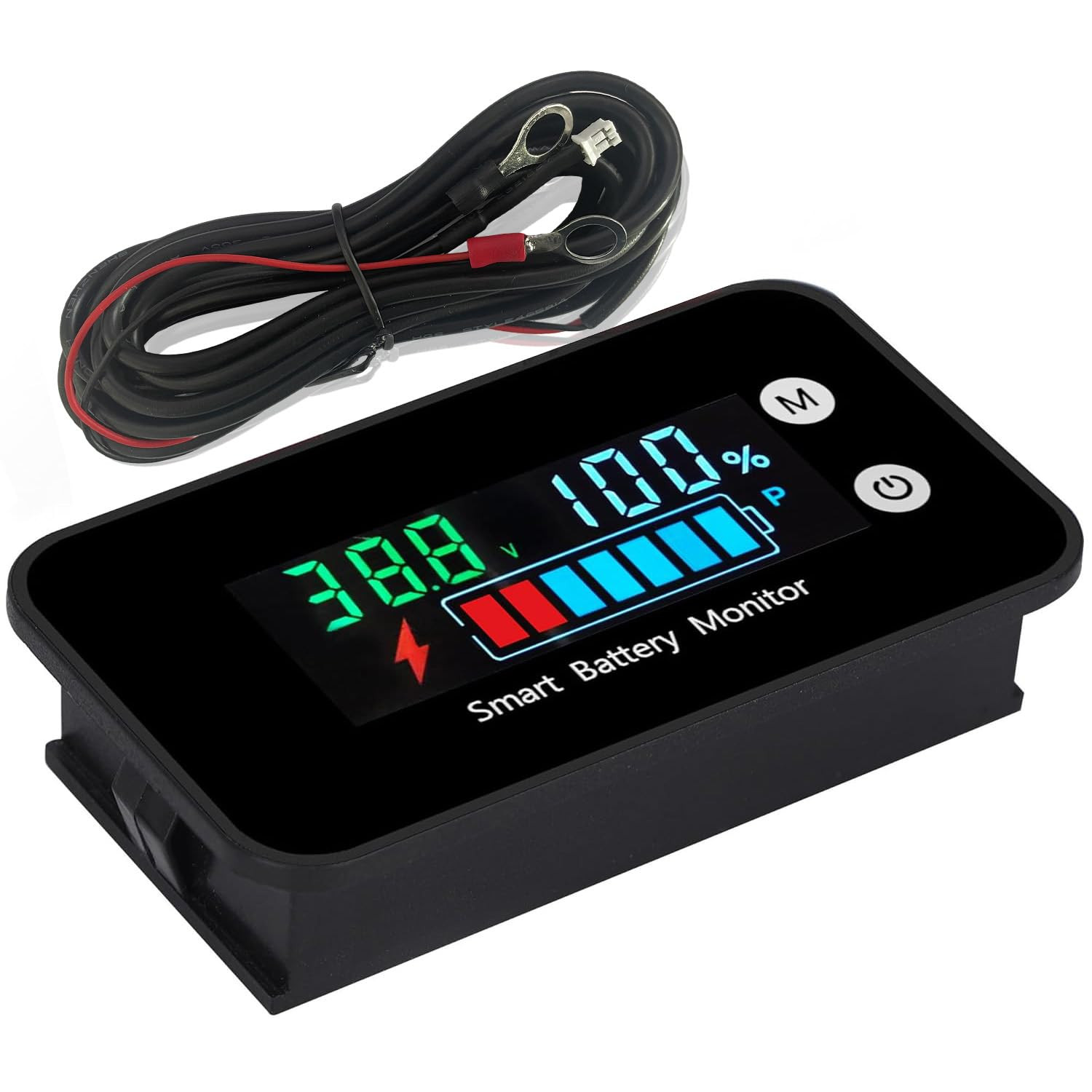

Smart Battery Monitor 7-100V with Buzzer Alarm & Temperature

Price: US $36.23

Smart Battery Monitor 7-100V with Buzzer Alarm & TemperatureDescription Power Source Battery Powered Minimum Operating Voltage 7 volts_of_direct_current Upper Temperature Rating 149 °F Measurement Type Multimeter Maximum Operating Voltage 100 volts_of_direct_current Compatible Devices electric motorcycle, motorcycle, golf cart, automotive, car, marine, RV, boat Style Name Surface waterproof,Digital Display, wires length 59 inches Color Multicolored Item Weight 1.76 ounces Item Dimensions 2.5 x 1.4 x 0.6 inches Specification Met Battery State of Charge Indicator, Dc Voltage Measurement, Led Color Display Model Smart-battery-monitor-lcd Unit Count 1 Count Number of Items 1 Item Highlight 12V 24V 36V 48V 60V 72V Car & Golf Cart, Battery Capacity Percentage Meter with Buzzer Alarm and Temperature Monitoring Included Components No Part Number Smart-battery-monitor-lcd Style Surface waterproof,Digital Display, wires length 59 inches

Product description Smart battery monitor

Why choose SUPNOVA Battery Monitor

Our battery monitor use high-end chip, and the voltage test range of 7-100V, 12V,36V,48V,60V,72V and 84V batteries can be used，It does not generate heat even when used at high voltages with high safety .
It can accurately test the voltage, the remaining capacity of electricity, show the percentage , it can set low and high voltage buzzer alarm.
This product is independently developed and produced by our company and is suitable for various instruments, car, golf cart, portable and convenient equipment, medical equipment, Electric bikes Motorcycles Boat etc.
The battery tester with power-off memory function, it can retain settings when power is removed.
Buzzer Alarm&Ttemperature:The battery monitor can set low and high voltage buzzer alarm and short press"M"key can switch voltage and temperature（Celsius).
This battery monitor is fully waterproof and dustproof on the surface. It is equipped with a wiring terminal on the back for easier installation and disassembly. For installation convenience, the matching cable we provide is 1.5 meters (59inches)long.

Function

The batter meter is fully functional type, not only can display battery capacity and voltage, but also can display the residual percentage capacity and temperature（Celsius).
Short press"M" button can switch voltage and temperature.

How to connect

The wiring method is simple. The red wire connect the positive , and the black wire connect the negative of the battery. The wire length is 59 inches.

Detail

Our batter meter is fully functional type, not only can display battery capacity and voltage, but also can display the residual percentage capacity and temperature（Celsius). the wires length are 59inches.
The battery monitor is fully waterproof and dustproof on the surface. It is equipped with a wiring terminal on the back for easier installation and disassembly.

The back of product

Removal wiring terminal, convenient for your installation and store.

Wiring Harness

The wire harness is 59 inches long with a wire diameter of 3.5mm (0.138 inches). It is equipped with one wiring terminal and two 8mm (0.315 inches) metal lugs, sturdy, durable and easy to install.

Dimension

The battery monitor Product Dimension is 64*36*15.3mm(2.5*1.4*0.6inches).and the Install Dimension is 58*28mm(2.28*1.1inches).
The shell designed with buckles if you open hole installation,

Specification Voltage Measuring range 7-100V Working current <15MA Measurement accuracy <1% Refresh rate two times/second Operation Temp -4F~140F Mounting Hole Size 2.28*1.1inch Product Demensions 2.5*1.4*0.6 inches (L*W*H) Display color color Product Weight 1 .6 ounces Working power consumption 12MA Q&A

1.Does the battery monitor come with a battery? Is it easy to wire?‌

A.No, the battery monitor does not include a battery. Simply connect the red wire to the positive terminal and the black wire to the negative terminal of the battery for display.

2.Is setup required after receiving the product?‌

Yes, The battery monitor is compatible with all battery types (7-100V), but you must follow the instructions to make a simple set it based on your battery type. If your battery is not listed in the manual, you can customize settings. Without setup, the voltage will display normally, but the battery capacity will remain at 100%.

3.Is SUPNOVA battery monitor waterproof?

The battery monitor is fully waterproof and dustproof on the surface. However, the back is not waterproof because it is fitted with a wiring terminal. If you need it to be completely waterproof, you can apply glue to seal the wiring terminal.

4.Do 12V lead-acid batteries require manual set?

No, the default setting is for 12V lead-acid batteries, but as the battery aging, you can need to customize settings to make the percentage display more accurate.

5.What is the length and wire diameter of the cable for connecting the battery monitor?

The wire harness is 59 inches long with a wire diameter of 3.5mm (0.138 inches). It is equipped with one wiring terminal and two 8mm (0.315 inches) metal lugs, sturdy, durable and easy to install.

APPLICATION --- The battery testers can be used for testing battery voltage and capacity for electric motorcycle, motorcycle，golf cart, automotive , car, marine, RV, boat, etc.
APPLICABLE BATTERY --- The digital battery monitor is suitable for 7-100V (12v 24v 36v 48v 60v 72v 84v) Ternary lithium battery, lead-acid,AGM battery, LiFePO4 battery. Default 12 volt lead acid battery .
PROTECTION ---The smart battery monitor features a waterproof and dustproof surface,It can be used for indoor and outdoor. input reverse connection protection.
INSTALLATION --- Red wire for the positive, Black wire for the negative of the battteries. The wires length are 59 inches and the diameter of the wires are 0.138 inches(3.5mm).
Buzzer Alarm&Temperature--- The battery monitor can set low and high voltage buzzer alarm and short press"M"key can switch voltage and Memory--The battery tester with power-off memory function,it can retain settings when power is removed.
Note--After getting the product, Must be make a simple setting according to the instructions, otherwise the percentage will always display 100%!
