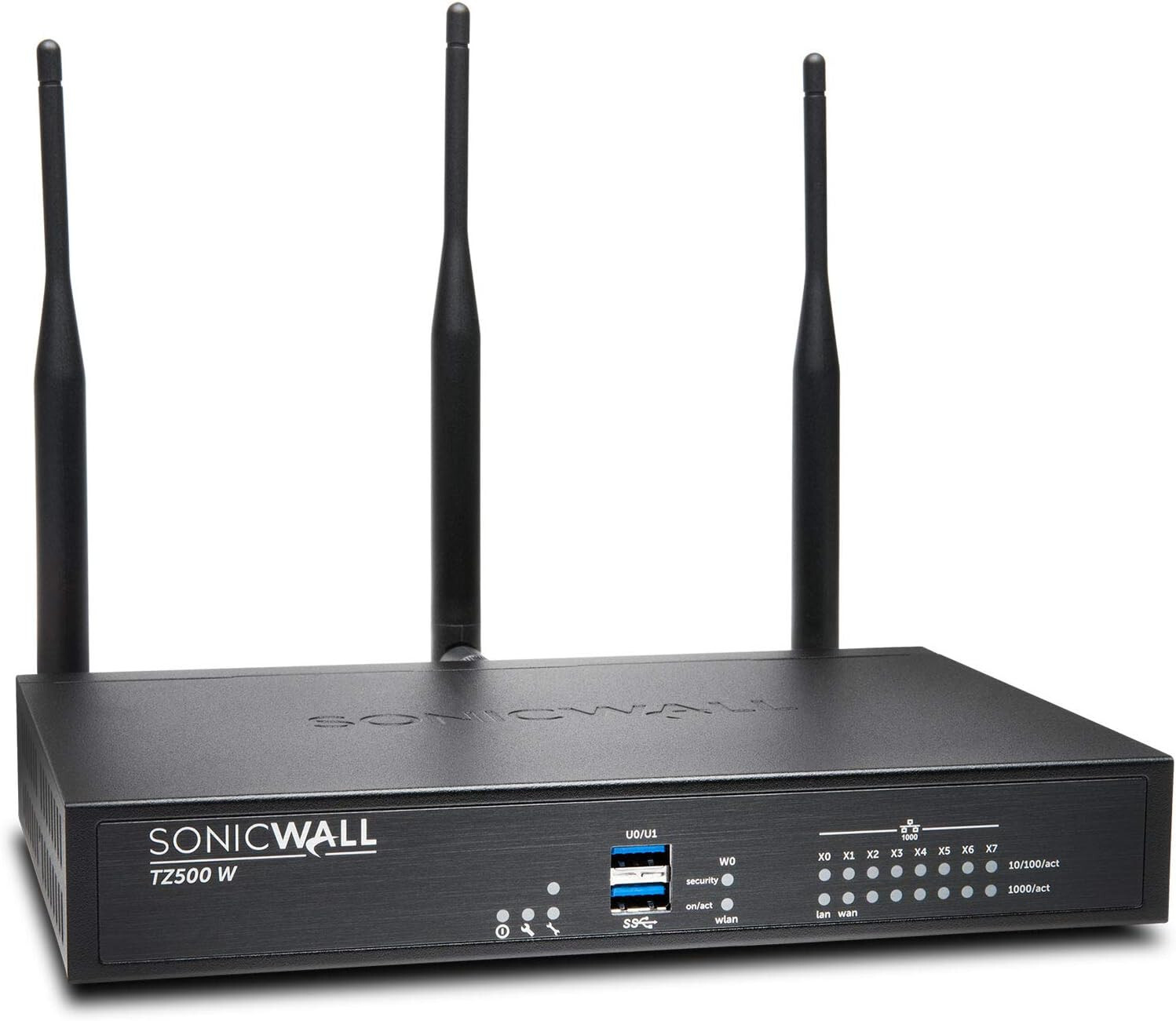

Main SpecificationsProduct Description SonicWall TZ500W - security appliance - Wi-Fi 5Device Type Security applianceForm Factor ExternalData Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11acFrequency Band 2.4 GHz, 5 GHzPerformance Firewall throughput: 1.4 Gbps ¦ Application throughput: 1.3 Gbps ¦ IPS throughput: 1 Gbps ¦ Anti-malware throughput: 700 Mbps ¦ TLS/SSL inspection and decryption throughput: 225 Mbps ¦ VPN throughput (IPSec): 1 Gbps ¦ Connection rate: 8000 connections per second ¦ Threat prevention throughput: 700 MbpsCapacity Virtual interfaces (VLANs): 50 ¦ SSL VPN licenses: 2 (maximum 150) ¦ VPN tunnels (site-to-site): 25 ¦ IPSec VPN clients: 2 (maximum 25) ¦ SPI connections: 150000 ¦ DPI connections: 125000 ¦ Authenticated users (internal database): 250 ¦ Single Sign-On (SSO) users: 500 ¦ Manageable access points: 16 ¦ DPI SSL connections: 25000VoIP Protocols SIP, H.323 v3, H.323 v4, H.323 v1, H.323 v2, H.323 v5Power AC 100-240 V (50/60 Hz)Dimensions (WxDxH) 8.9 in x 5.9 in x 1.4 inWeight 32.45 oz GeneralDevice Type Security applianceWidth 8.9 inDepth 5.9 inHeight 1.4 inWeight 32.45 oz Expansion / ConnectivityInterfaces 7 x 1000Base-T - RJ-45 ¦ 1 x 1000Base-T - RJ-45 (WAN) ¦ 2 x USB 3.0 - Type A ¦ 1 x console - RJ-45 MiscellaneousMTBF 40.8 yearsCompliant Standards FCC Class A certified, UL, TUV GS, C-Tick, BSMI, ICSA Firewall certified, cUL, ICSA Antivirus, CB, FIPS 140-2 Level 2, EMC, RoHS, WEEE, ANATEL, GOST-R, REACH, ICES Class A, KCC Class A, VPNC certified, LVD, IPv6 Ready, VCCI Class A, MSIP, CoC, UC APL NetworkingForm Factor ExternalConnectivity Technology Wireless, wiredData Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11acNetwork / Transport Protocol TCP/IP, PPTP, UDP/IP, L2TP, ICMP/IP, IPSec, PPPoE, DHCPRouting Protocol OSPF, RIP-1, RIP-2, BGP, static IP routing, policy-based routing (PBR)Remote Management Protocol SNMP 2, SNMP 3, HTTP, HTTPS, CLIFrequency Band 2.4 GHz, 5 GHzPerformance Firewall throughput: 1.4 Gbps ¦ Application throughput: 1.3 Gbps ¦ IPS throughput: 1 Gbps ¦ Anti-malware throughput: 700 Mbps ¦ TLS/SSL inspection and decryption throughput: 225 Mbps ¦ VPN throughput (IPSec): 1 Gbps ¦ Connection rate: 8000 connections per second ¦ Threat prevention throughput: 700 MbpsCapacity Virtual interfaces (VLANs): 50 ¦ SSL VPN licenses: 2 (maximum 150) ¦ VPN tunnels (site-to-site): 25 ¦ IPSec VPN clients: 2 (maximum 25) ¦ SPI connections: 150000 ¦ DPI connections: 125000 ¦ Authenticated users (internal database): 250 ¦ Single Sign-On (SSO) users: 500 ¦ Manageable access points: 16 ¦ DPI SSL connections: 25000Features Firewall protection, VPN support, PAT support, VLAN support, Stateful Packet Inspection (SPI), DoS attack prevention, content filtering, port mirroring, IPv6 support, antivirus analysis, Intrusion Prevention System (IPS), URL filtering, Deep Packet Inspection (DPI), DDos attack prevention, Wi-Fi Multimedia (WMM) support, anti-spam protection, anti-malware protection, Quality of Service (QoS), Dead Peer Detection (DPD), IPSec NAT-Traversal (NAT-T), DHCP server, bandwidth control, Common Access Card (CAC) reader support, anti-spyware protection, DHCP relay, 3G/4G USB Dongle Support, NetFlow, DiffServ Code Point (DSCP) support, Single Sign-On (SSO) support, anti-virus protection, keyword filteringEncryption Algorithm DES, Triple DES, MD5, AES, SHA-1, PEAP, TTLS, TKIP, WPA, WPA2, WPA-PSK, 128-bit AES, 192-bit AES, 256-bit AES, WEPAuthentication Method RADIUS, LDAP, internal user database, Active Directory, Extensible Authentication Protocol (EAP), XAUTH authenticationCompliant Standards IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.11ac PowerPower Device External power adapterVoltage Required AC 100-240 V (50/60 Hz)Power Consumption Operational 17.7 WattPower Provided 36 Watt Software / System RequirementsOS Provided SonicOS Environmental ParametersMin Operating Temperature 32 °FMax Operating Temperature 104 °FHumidity Range Operating 5 - 95% (non-condensing) AntennaAntenna External detachableAntenna Qty 3 IP TelephonyVoIP Protocols SIP, H.323 v3, H.323 v4, H.323 v1, H.323 v2, H.323 v5
