StarTech USB C to VGA and HDMI Adapter - Aluminum - USB-C Multiport Adapter - 6 in / 15.24 cm Built-In Cable (225736) StarTech USB C to VGA and HDMI Adapter - Aluminum - USB-C Multiport Adapter - 6 in / 15.24 cm Built-In Cable (225736)
International Customers: All electronic products are packaged for sale in the US with US voltage.
End of Life Manual Availability: Yes
WEEE Statement: RoHS Declaration URL: Certification: EU RoHS
Environmentally Friendly: Yes
REACH Declaration URL: free of SVHC: Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS) 2
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin: China
Product Description
This item is brand-new, factory sealed.
Overview

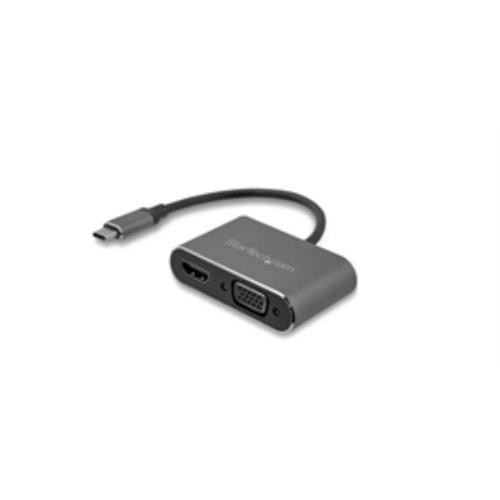

This USB-C to VGA and HDMI adapter offers a portable solution for connecting your USB Type-C laptop to a VGA or HDMI display. The multiport video adapter also works as a splitter, enabling you to simultaneously output an identical video signal to two separate monitors (1 x HDMI and 1 x VGA).
Two-in-One Video Connectivity with Travel in Mind
Avoid the hassle of carrying different adapters, with a 2-in-1 USB-C monitor adapter. With VGA, and HDMI outputs, you can conveniently connect your laptop to any HDMI or VGA-equipped display, using this multiport adapter.
The adapter features a durable aluminum enclosure and can withstand being carried in your travel bag.
Ultra HD 4K 30Hz Resolution
The HDMI output on this USB-C video adapter supports UHD resolutions up to 4K 30Hz, while the VGA output supports HD resolutions up to 1920 x 1200.
Stylish Connectivity for Your MacBook, MacBook Pro, or Any Laptop
The USB-C video adapter has a Space Gray housing and built-in USB-C cable designed to match your Space Gray MacBook or MacBook Pro. The adapter is compatible with USB-C DP Alt Mode devices.
CDP2HDVGA is backed by a 3-year warranty and free lifetime technical support.Active or Passive Adapter
Active
Adapter Style
Adapters
AV Input
USB Type-C
AV Output
HDMI
VGA Chipset ID
ITE - IT6222
PERFORMANCE
Audio Specifications
HDMI output: 5.1 surround sound
Maximum Analog Resolutions
1920 x 1200 at 60Hz (VGA)
Maximum Digital Resolutions
3840 x 2160 at 30Hz (HDMI)
Supported Resolutions
Maximum HDMI output:3840 x 2160 at 30Hz
Maximum VGA output: 1920 x 1200 at 60Hz
Lower resolutions and refresh rates may also be supported
Video Revision
HDMI 2.0
CONNECTOR(S)
Connector A
1 - USB-C (24 pin) DisplayPort Alt Mode Male Input
Connector B
1 - VGA (15 pin, High Density D-Sub) Female Output
1 - HDMI (19 pin) Female Output
SPECIAL NOTES / REQUIREMENTS
Note
HDMI and VGA can output video at the same time. If both video outputs are connected, theyll display the same image at a maximum resolution of 1920x1200 at 60Hz
The HDMI port is a passive port.
The VGA port is an active port.
ENVIRONMENTAL
Humidity
5 to 90% RH
Operating Temperature
0oC to 45oC (32oF to 113oF)
Storage Temperature
-10oC to 70oC (14oF to 158oF)
PHYSICAL CHARACTERISTICS
Accent Color
Black
Cable Length
6 in 152.4 mm
Color
Space Gray
Enclosure Type
Aluminum and Plastic
WHATS IN THE BOX
Included in Package
1 - Travel A/V Adapter
Item Dimension ( L inchxW inchxH inch)
6 x 7 x 2Weight
1 lbWarranty Information
3 Year Warranty SpecificationPhysical CharacteristicsWeight (Approximate)1.52 ozProduct ColorSpace GrayColor FamilyGrayWarrantyLimited Warranty3 YearGeneral InformationBrand Name
