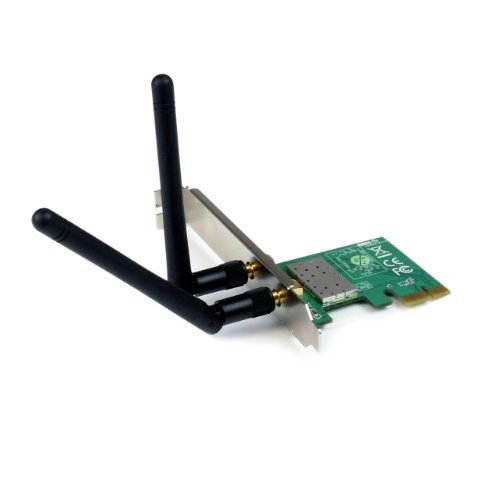

StarTech PCI Express Wireless N Adapter - 300 Mbps PCIe 802.11 b/g/n Network Adapter Card ? 2T2R 2.2 dBi (PEX300WN2X2) StarTech PCI Express Wireless N Adapter - 300 Mbps PCIe 802.11 b/g/n Network Adapter Card ? 2T2R 2.2 dBi (PEX300WN2X2)
International Customers: All electronic products are packaged for sale in the US with US voltage.
End of Life Manual Availability: Yes
EU RoHS Declaration URL: & Standards: IEEE 802.11b IEEE 802.11g IEEE 802.11n FCC CE
Environmental Certification: EU RoHS
TAA Compliant: Yes
Environmentally Friendly: Yes
REACH Declaration URL: free of SVHC: Yes
Device Supported: Desktop Computer
Platform Supported: PC
Environmental Compliance:
Restriction of Hazardous Substances (RoHS) 2
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Waste Electrical and Electronic Equipment Directive (WEEE)
WEEE Statement: Contents: PCI Express Wireless Networking Card 2 x Antenna 1 x Low Profile Bracket 1 x Driver CD 1 x Instruction Manual
System Requirements: Windows XP (64-bit) Windows Server 2003 (32/64-bit) Windows Server 2008 R2 Windows Vista (32/64-bit) Windows 7 (32/64-bit) Windows 8 (32/64-bit) Windows 10 Linux 2.6.32 or later
Country of Origin: Taiwan
Product Description
This item is brand-new, factory sealed.
The PEX300WN2X2 PCI Express Wireless N Card (PCIe x1) adds high speed wireless network connectivity to almost any PCI Express-enabled desktop/workstation PC. Using a 2T2R (2 Transmitter/2 Receiver) design over the 2.4GHz frequency, this PCIe wireless card provides up to 300Mbps of data bandwidth over an 802.11n network, while improving signal reception and range.
Backward compatible with 802.11b/g networks (11/54Mbps), this WiFi N adapter offers a versatile wireless networking solution with support for standard and advanced security options such as WEP, WPA and WPA2, along with wireless Quality of Service (QoS) support and quick and easy setup through WPS.Hardware
Interface:PCI Express
Port Style:Integrated on Card
Bus Type:PCI Express
Card Type:Standard Profile
Antenna Configuration:2x2:2 (TxR:S)
Industry Standards:IEEE 802.11b, IEEE 802.11g, IEEE802.11n
Chipset ID:Ralink RT5392Connector(s)
Connector Type(s):2 - RP-SMA (Coax Reverse Polarity SubMiniature A) FemalePerformance
Bandwidth:20/40 MHz
Frequency Range:2.4 GHz - 2.484 GHz
Maximum Data Transfer Rate:802.11n: 300 Mbps
Supported Protocols:CSMA/CA
Full Duplex Support:Yes
Security Features:
TKIP/AES
WEP Data Encryption
WPA Data EncryptionIndicators
LED Indicators:1 - Link/Activity (green)
Special Notes / Requirements
System and Cable Requirements:Available full profile PCI Express expansion slot
Included in Package
1 - PCI Express Wireless Networking Card
2 - Antenna
1 - Low Profile Bracket
1 - Driver CD
1 - Instruction Manual Item Dimension (L"xW"xH"):
6.50 x 5.51 x 1.34
Weight:
1 lb
Warranty Information:
2 years SpecificationPhysical CharacteristicsForm FactorPlug-in CardWeight (Approximate)1.30 Warranty2 YearInterfaces/PortsHost InterfacePCI Express x1General InformationBrand Name
