StarTech x4 PCI Express to M.2 PCIe SSD Adapter - M.2 NGFF SSD [NVMe or AHCI] Adapter Card (pex4m2e1) StarTech x4 PCI Express to M.2 PCIe SSD Adapter - M.2 NGFF SSD [NVMe or AHCI] Adapter Card (pex4m2e1)
International Customers: All electronic products are packaged for sale in the US with US voltage.
End of Life Manual Availability: Yes
EU RoHS Declaration URL: & Standards: FCC CE
TAA Compliant: Yes
Environmental Certification: EU RoHS
Environmentally Friendly: Yes
REACH Declaration URL: free of SVHC: Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS) 2
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Waste Electrical and Electronic Equipment Directive (WEEE)
WEEE Statement: Contents: x4 PCI Express 3.0 to M.2 PCIe NVMe SSD Adapter 1 x Low-profile Bracket 1 x Full-profile Bracket (Pre-installed) 1 x SSD Standoff and Installation Screw 1 x Quick Start Guide
Additional Information: Hardware Bus Type PCI Express Compatible Drive Types (Type and Rate) M.2 (NGFF; M-Key; PCIe x4) Drive Installation Fixed Drive Size 22m - M.2 NGFF Interface PCI Express Number of Drives 1 Supported Drive Height(s): 2242 2260 2280 22110 Performance Hot Swap Capability No Connector(s) Drive Connectors 1 - M.2 (NGFF; M-Key; PCIe x4) Host Connectors 1 - PCI Express x4 Male Software OS Compatibility OS independent; No software or drivers required Indicators LED Indicators 1 - Pin header on board for drive LED connection Environmental Humidity 15% ~ 90% RH Operating Temperature 5°C to 50°C (41°F to 122°F) Storage Temperature -25°C to 70°C (-13°F to 158°F)
Country of Origin: Taiwan
Product Description
This item is brand-new, factory sealed.

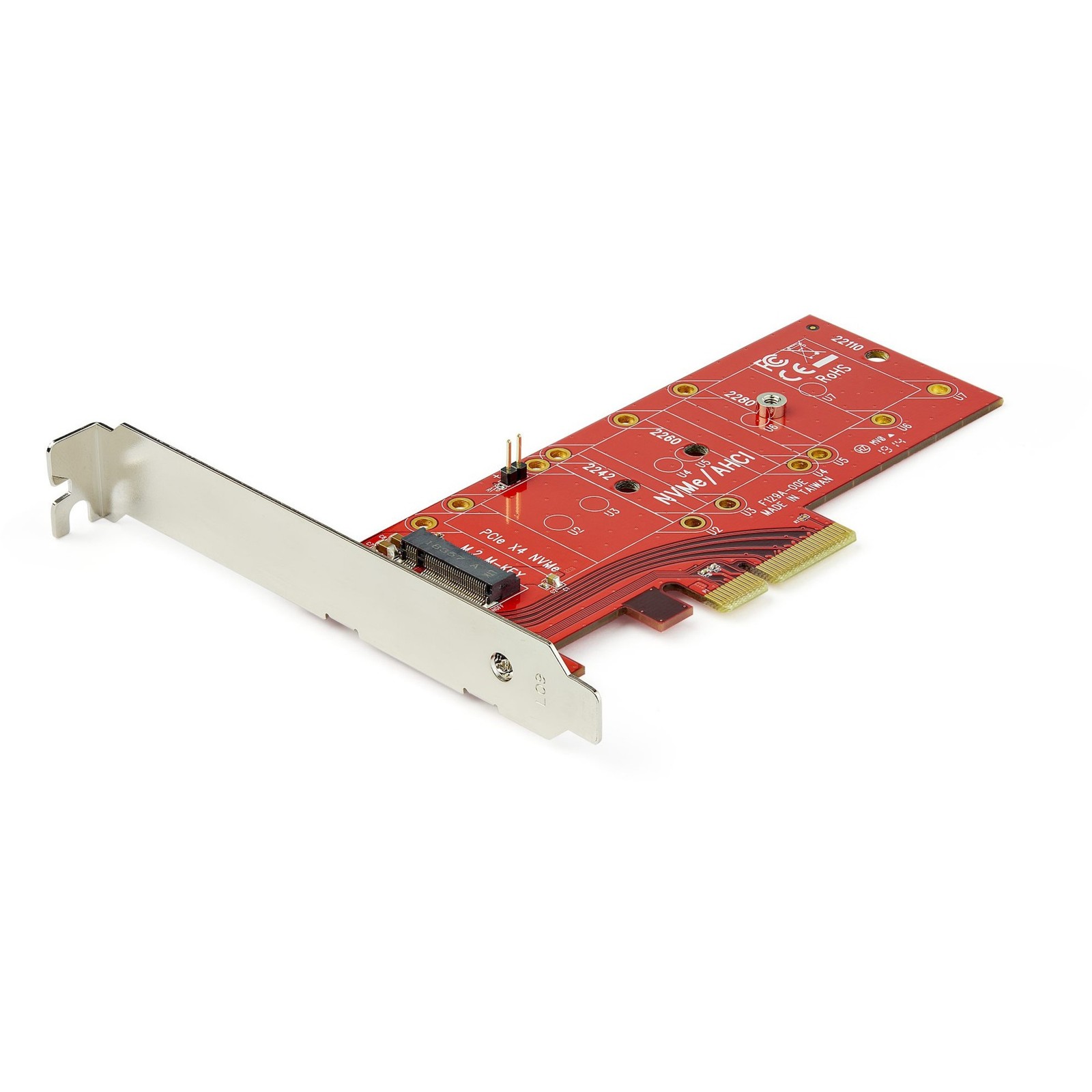

Connect a PCIe M.2 SSD (NVMe or AHCI) to your computer through PCI Express for ultra-fast data access. Get ultra-fast data access by adding a PCIe M.2 SSD to your existing computer. This adapter lets you add a high-speed, 4-lane M.2 SSD (PCIe-based), such as a Samsung 950 Pro or Samsung SM 951, to a PC with an available x4 PCI Express expansion slot. You can mount the PCIe M.2 drive directly onto the adapter, giving you an easy and convenient way to improve your system performance and expand overall internal storage.
Boost your system speed and performance
The expansion card lets you take full advantage of the fast performance and compact size of PCIe M.2 internal solid-state drives. The adapter connects directly to your computer motherboard to support an M.2 PCIe-based SSD (NVMe or AHCI) through ultra-fast x4 PCIe. The adapter is compatible with PCIe 3.0 motherboards and is also backward compatible with PCIe 2.0 and PCIe 1.0. With the M.2 PCIe based drive in place, the adapter gives your computer a significant speed boost.
Supports PCIe M.2 SSDs
The adapter supports PCIe 3.0 x4 NVMe (M Key) and PCIe-AHCI M.2 SSDs including 2242, 2260, 2280, and 22110 drives. The expansion slot adapter supports the most common drive sizes including 110 mm, 80 mm, 60 mm and 42 mm.
Easy to install
The expansion card is equipped with a full-profile bracket and includes a half-height/low-profile bracket, for installation in small form-factor computers.
The PEX4M2E1 is backed by a 2-year warranty and free lifetime technical support.Package Contents:
- x4 PCI Express to M.2 PCIe SSD Adapter
- 1 x Low-profile Bracket
- 1 x Full-profile Bracket (pre-installed)
- 1 x SSD Standoff and installation Screw
- 1 x Quick Start Guide
SpecificationPhysical CharacteristicsProduct MaterialSteelWeight (Approximate)1.70 ozLength5.3"Product ColorRedHeight0.2"Color FamilyRedWidth3.1"WarrantyLimited Warranty2 YearGeneral InformationBrand Name
