Startech Usb Hdmi Over Cat 5e / Cat 6 Kvm Console Extender W/ 1080p Uncompressed Video - 330ft [100m] - 1 Computer[s] - 1 Local User[s] - 330 Ft Range - 2 X Network [rj-45] - 4 X Usb (sv565utphdu) Startech Usb Hdmi Over Cat 5e / Cat 6 Kvm Console Extender W/ 1080p Uncompressed Video - 330ft [100m] - 1 Computer[s] - 1 Local User[s] - 330 Ft Range - 2 X Network [rj-45] - 4 X Usb (sv565utphdu)
International Customers: All electronic products are packaged for sale in the US with US voltage.
Package Contents: 1 x Local Transmitter Unit 1 x Remote Receiver Unit 4 x Mounting Brackets 1 x HDMI Cable 1 x USB Cable 2 x Universal Power Adapters (NA, EU ,UK) 1 x Quick-start guide
Certifications & Standards: CE FCC UL
Environmentally Friendly: Yes
Country of Origin: Canada
Product Description
This item is brand-new, factory sealed.

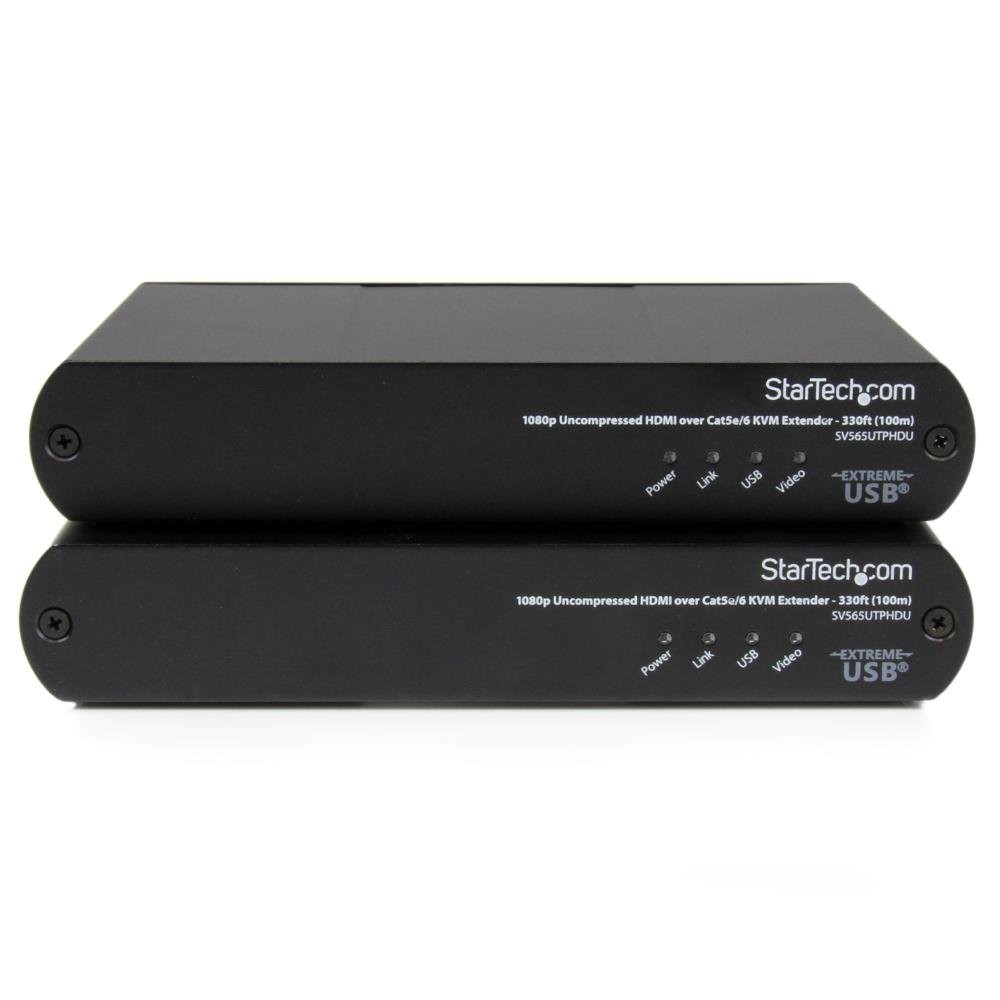

The SV565UTPHDU USB HDMI® KVM Extender lets you control a PC from up to 330ft (100m) away over a single Cat 5e or Cat 6 cable connection, with uncompressed 1080p HDMI video and access to up to 3 connected USB devices.
A flexible solution for powering large high-definition displays remotely, this HDMI USB extender supports uncompressed 1080p or 1920x1200 video resolutions at maximum distance. Additional features such as 3D and 4K support, HDCP, CEC and Lip Sync pass-through enable you to display your content exactly as you need it on the remote display.
This versatile KVM console extender can be connected to a single system, or cascaded to an existing KVM switch for remote operation of multiple systems, and features 3 USB 2.0 ports on the remote end, allowing you to connect a keyboard, mouse, printer or other peripherals. Since the extender uses Cat 5e (or better) network cable, you have the option to use existing infrastructure wiring, which helps avoid the hassle and expense of running bulky video cables.
Backed by a 2-year warranty and free lifetime technical support.
Package Contents:
- Local Extender Unit
- Remote Extender Unit
- HDMI Cable
- USB Cable
- Universal Power Adapters (NA/EU/UK)
- Instruction Manual
SpecificationPower DescriptionInput Voltage Range100V AC to 240V ACInput Voltage
Power Consumption15 WPhysical CharacteristicsTransmitter Weight (Approximate)1.87 lbReceiver Width4.40"Receiver Height1.20"Product ColorBlackReceiver Depth6.90"Transmitter Depth6.90"Receiver Weight (Approximate)1.87 lbColor FamilyBlackTransmitter Height1.20"Transmitter Width4.40"WarrantyLimited Warranty2 YearInterfaces/PortsNumber of USB Ports6Network (RJ-45)YesNumber of HDMI Ports2USBYesHDMIYesNumber of Network (RJ-45) Ports2VideoMaximum Video Resolution1920 x 1200Graphic ModeWUXGAGeneral InformationBrand Name
