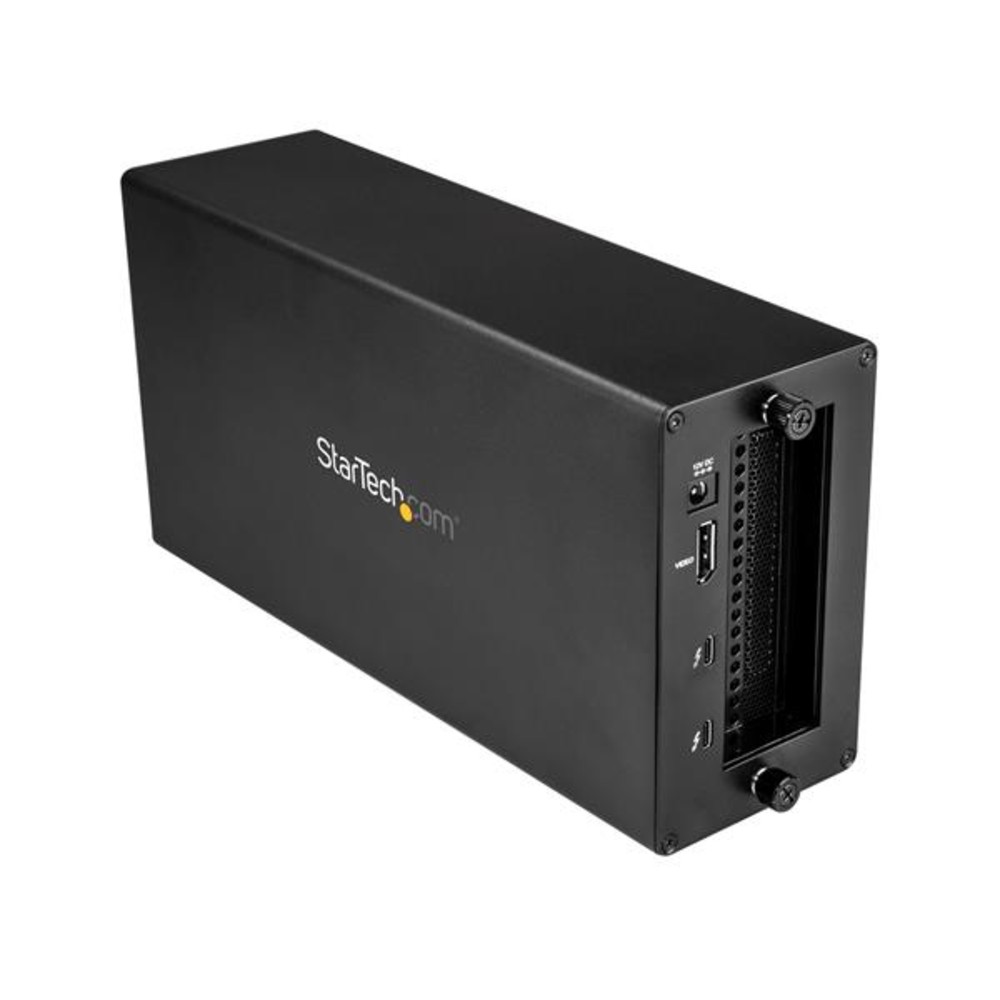

Startech TB31PCIEX16 Thunderbolt 3 PCIe Expansion Chassis DisplayPort x16
The Startech TB31PCIEX16 Thunderbolt 3 PCIe Expansion Chassis DisplayPort x16 is a high-performance Thunderbolt 3 expansion chassis that allows you to add a PCI Express card to your laptop or desktop computer through an external Thunderbolt 3 connection. With its sleek black design, this expansion chassis is both stylish and functional.
Expand Your System''s Capabilities
The Thunderbolt 3 PCIe expansion chassis is designed to enhance the capabilities of your Thunderbolt 3 computer. It allows you to easily add various types of PCI Express cards, such as PCIe USB 3.1/3.0/2.0 and USB-C, SSD, network, eSATA, FireWire, or video capture cards. With the speed and bandwidth support of Thunderbolt 3 and PCIe 3.0, you can enjoy the same port additions as you would with the PCI Express expansion slots of a desktop system.
Extend Your Workstation
This Thunderbolt 3 expansion chassis features a dedicated DisplayPort output that enables you to connect an additional display to your laptop or desktop computer. With multiple extended displays, you can work more efficiently by multitasking faster and avoid the hassle of continually repositioning several open windows or programs. Additionally, the second Thunderbolt 3 (USB-C) port allows you to connect additional Thunderbolt, USB, and DisplayPort devices, expanding your workstation according to your specific requirements.
Increase Productivity with Faster Speeds
With Thunderbolt 3, the fastest connection available, you can enjoy lightning-fast speeds and accomplish more in less time. This Thunderbolt 3 expansion chassis offers up to 40Gbps of throughput, allowing you to add displays to your laptop, access files quickly, and work without disruptions. It is perfect for tasks that require handling large uncompressed files, such as videos and images, making it an ideal solution for dynamic on-site production.
Product Features:
- Connectivity technology: Wired
- Host interface: Thunderbolt 3
- Chipset: Intel - Alpine Ridge DSL6540
- Built-in fan: Yes
- Maximum port bandwidth: 3.94 GB/s
- Data transfer rate: 40 Gbps
- Thunderbolt 3 ports quantity: 2
- DisplayPorts quantity: 1
- PCI slot: 1 x PCIe x16
- Windows operating systems supported: Windows 10, Windows 7
- Mac compatibility: Yes
- Mac operating systems supported: Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra
- Ethernet LAN: No
- Product color: Black
- LED indicators: Power
- AC input voltage: 100 - 240
- Input current: 2 A
- Output current: 5.417 A
- Output voltage: 12 V
- Plug type: Type N
- Power consumption (typical): 65 W
- AC adapter included: Yes
- Operating temperature (T-T): 5°C - 35°C
- Storage temperature (T-T): -20°C - 50°C
- Operating relative humidity (H-H): 20% - 80%
- Housing material: Aluminium, Steel
- Cable length: 0.5 m
- Width: 142 mm
- Depth: 280 mm
- Height: 82 mm
- Weight: 1600 g
- Package weight: 3126 g
- Quick start guide: Yes
- Cables included: Thunderbolt
- Compatible power plug types: AU, EU, JP, UK, US
- Certification: CE, FCC, TAA, Thunderbolt
- RoHS compliance: Yes
- Package height: 145 mm
- Package depth: 360 mm
- Package width: 290 mm
