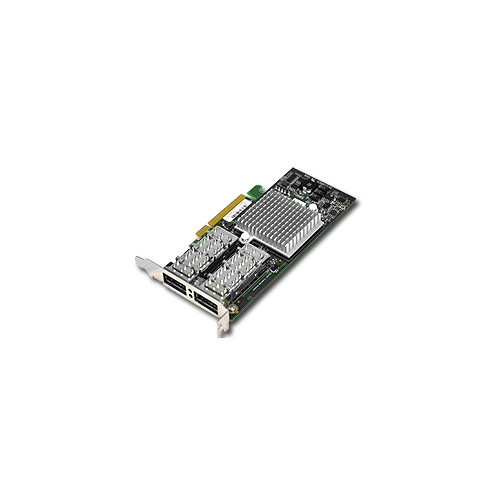

SuperMicro AOC-UIBQ-M2 Dual-port InfiniBand QDR UIO Adapter Card w/ PCI-E 2.0
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
SuperMicro AOC-UIBQ-M2 Dual-port InfiniBand QDR UIO Adapter Card w/ PCI-E 2.0
Price: US $750.74
Covered by Full Supermicro Manufacturer Warranty!!!Add-on Card
Dual-port InfiniBand QDR UIO Adapter card with PCI-E 2.0 and Virtual Protocol Interconnect™ (VPI) AOC-UIBQ-M2 InfiniBand card with Virtual Protocol Interconnect (VPI) provides the highest performing and most flexible interconnect solution for performance-driven server and storage clustering applications in Enterprise Data Centers, High-Performance Computing, and Embedded environments. Clustered databases, parallelized applications, transactional services and high-performance embedded I/O applications will achieve significant performance improvements resulting in reduced completion time and lower cost per operation. AOC-UIBQ-M2 simplifies network deployment by consolidating clustering, communications, storage, and management I/O and by providing enhanced performance in virtualized server environments. To order, contact your distributor. This product is only available through Supermicro. Key Features
  • Virtual Protocol Interconnect™ (VPI)
  • 1us MPI ping latency
  • Selectable 40Gb/s InfiniBand or 10GbE port
  • PCI Express 2.0 (up to 5GT/s)
  • CPU offload of transport operations
  • End-to-end QoS and congestion control
  • Hardware-based I/O virtualization
  • TCP/UDP/IP stateless offload
  • Fibre Channel encapsulation (FCoIB or FCoE)
Compliance RoHS
Downloads User's Guide [ Download ] Driver [ FTP Site ] Driver CD [ FTP Site ] Firmware [ FTP Site ] (version 2.7) Datasheet [ Download ] Compatible UIO/WIO Motherboards and Servers Compatibility Matrix
AOC Compatibility Matrix
Specification
  • InfiniBand:
    - Mellanox® ConnectX®-2 IB QDR
    - Dual InfiniBand QSFP ports
    - 40Gb/s per port
    - RDMA, Send/Receive semantics
    - Hardware-based congestion control
    - Atomic operations
  • Interface:
    - PCI Express 2.0 x8 (5GT/s)
    - UIO low-profile half-length form factor
  • Connectivity:
    - Interoperable with InfiniBand or 10GbE switches
    - QSFP connector
    - 7m (40Gb/s) of passive copper cable
    - External optical media adapter and active
    cable support
  • Hardware-based I/O Virtualization:
    - Single Root IOV
    - Address translation and protection
    - Multiple queues per virtual machine
    - VMware NetQueue support
    - PCISIG IOV compliant
  • CPU Offloads:
    - TCP/UDP/IP stateless offload
    - Intelligent interrupt coalescence
    - Microsoft® RSS and NetDMA Compliant
  • Storage Support:
    - T10-compliant Data Integrity Field support
    - Fibre Channel over InfiniBand or Ethernet (FCoIB or FCoE)
  • Operating Systems/Distributions:
    - Novell SLES, RedHat, Fedora and others
    - Microsoft® Windows Server 2003/2008/CCS 2003
    - OpenFabrics Enterprise Distribution (OFED)
    - OpenFabrics Windows Distribution (WinOF)
    - VMWare ESX Server 3.5, Citrix XenServer 4.1
  • Operating Conditions:
    - Operating temperature: 0° to 55°C
  • Physical Dimensions::
    - Card PCB dimensions: 14.201cm (5.591in) x 6.980cm (2.7126in) (LxW)
    - Height of end brackets: standard -12cm (4.725in), low-profile -7.94cm (3.13in)
Compatible Cable QSFP 40Gb High Speed Copper Cable (Not Included) Parts List Part Number Qty Description Add-on Card AOC-UIBQ-M2 1 UIO 2-port InfiniBand QDR 40Gb/s Controller Brackets BKT-0027L BKT-0026L
1
1 Low-Profile End Bracket with Screws
Full-height End Bracket with Screws Driver Disk CDR-NIC 1 Driver and Software CDROMTerms and Conditions
