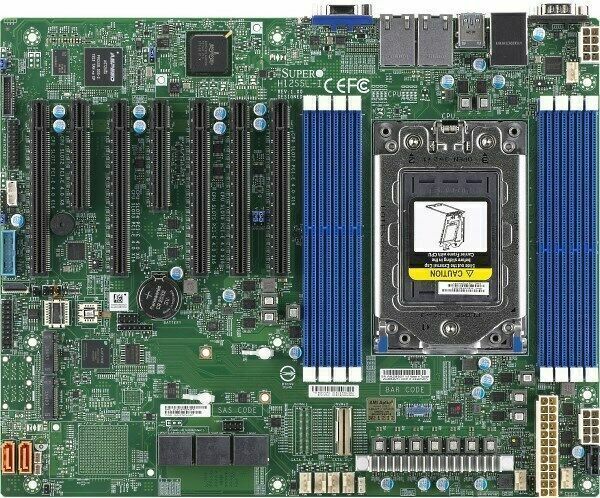

Key Features1.Single AMD EPYC™ 7003/7002 Series Processor (7003 Series Processor drop-in support requires BIOS version 2.0 or newer)2.2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs3.Expansion slots: 5 PCI-E 4.0 x16 2 PCI-E 4.0 x8 M.2 Interface: 2 PCI-E 4.0 x4 M.2 Form Factor: 2280, 22110 M.2 Key: M-key 4.8 SATA3, 2 M.2, 8 SATA3 or 2 NVMe via single SlimSAS x85.2 Gigabit Ethernet LAN Ports6.ASPEED AST2500 BMC graphics7.Up to 6 USB 3.0 ports (4 rear + 2 via header)8.7 PWM 4-pin Fans with tachometer status monitoringSpecifications Product SKUs MBD-H12SSL-i Physical Stats Form Factor Dimensions - 12" x 9.6" (30.5cm x class="desc" style="box-sizing: border-box; margin: 0px; padding: 0px; font-weight: bold; color: rgb(93, 139, 96) !important;">
- Single AMD EPYC™ 7003/7002 Series Processor
(7003 Series Processor drop-in support requires BIOS version 2.0 or newer) - Socket SP3
Cores Chipset System Memory Memory Capacity - 8 DIMM slots
- Supports up to 2TB Registered ECC DDR4 3200MHz SDRAM
- 8-channel memory bus
Memory Type - DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
DIMM Sizes - 8GB, 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage Error Detection - Corrects single-bit errors
- Detects double-bit errors (using ECC memory)
On-Board Devices SATA IPMI - Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- ASPEED AST2500 BMC
Network Controllers - Dual gigabit LAN via Broadcom BCM5720
- 1 Realtek RTL8211F PHY (dedicated IPMI)
VGA Input / Output SATA SATA/NVMe Hybrid - 8 SATA3 or 2 NVMe via single SlimSAS x8
LAN - 2 RJ45 Gigabit Ethernet LAN ports
- 1 RJ45 Dedicated IPMI LAN port
USB - 6 USB 3.0 ports
(4 rear + 2 via header)
VGA Others - 1 COM port (rear)
- 2 SATA DOM power connectors
- 1 TPM 2.0 header
Expansion Slots PCI-Express - 5 PCI-E 4.0 x16
- 2 PCI-E 4.0 x8
M.2 - Interface: 2 PCI-E 4.0 x4
- Form factor: 2280, 22110
- Key: M-key
Chassis ( Optimized for H12SSL-i ) 1U - SC813MFTQC-350CB2
- SC213BAC8-R1K23LPB
- SC825MBTQC-R802LPB
- SC825TQC-R802LPB
- SC835TQC-R802B
- SC745BAC-R1K23B
- AS -2014S-TR
- AS -3014TS-i
System BIOS BIOS Type - AMI 256Mb SPI Flash EEPROM
BIOS Features - Plug and Play (PnP)
- DMI 2.3
- PCI 2.2
- ACPI 5.1
- USB Keyboard Support
- SMBIOS class="desc" style="box-sizing: border-box; margin: 0px; padding: 0px; font-weight: bold; color: rgb(93, 139, 96) !important;">
- SuperDoctor 5
- Watch Dog
- NMI
- SUM
- IPMI 2.0, KVM with dedicated LAN
Power Configurations - ACPI Power Management
- Power-on mode control for AC power loss recovery
PC Health Monitoring CPU - Monitors CPU Core Voltages, +3.3V, +5V, +5V standby, +3.3V standby
- CPU switching voltage regulator
- Supports system management utility
- VBAT
FAN - Up to 7-fan status tachometer monitoring
- Up to 7 4-pin fan headers
- Dual Cooling Zone
- Status monitor for speed control
- Pulse Width Modulated (PWM) fan connectors
Temperature - Monitoring for CPU and chassis environment
- CPU Thermal Trip Support
- Thermal control for 7x Fan connectors
- I²C Temperature Sensing Logic
LED - CPU / System Overheat LED
Other Features - Chassis Intrusion Detection
- Chassis Intrusion Header
- Operating Temperature:
10°C to 35°C (50°F to 95°F) - Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F) - Operating Relative Humidity:
8% to 90% (non-condensing) - Non-operating Relative Humidity:
5% to 95% (non-condensing)
Parts List Bulk Pack List Part Motherboard I/O ShieldMCP-260-00042-0N1STD I/O SHIELD FOR X9 SOCKET R SERVER MB
