Integrated Board Super A2SAN-E Key Features
- IoT Gateway for Smart
Factory/Building
- Machine Automation
- Industrial Application

1. Intel® Atom® Processor E3940,
Single Socket FCBGA 1296 2. System-on-Chip 3. 1 Full size Mini-PCIe
1 M.2 2280 B-Key for SATA or PCIe SSD 4. 1 non-ECC DDR3L SODIMM; up to 8GB 5. Dual GbE LAN ports via Intel I210-AT 6. 1 HDMI, 1 VGA, 2 USB 3.0, 4 USB 2.0 7. 2 RS232, 2 RS232/422/485, RS-485
supports auto flow control, 1 DIO via DB9 8. Fanless design 9. 12V DC 60W power adapter with Terminal
Block, support 9-36V DC-in


Drivers & Utilities BIOS IPMI Tested Memory
Tested M.2 List Manuals OS Certification Matrix
Product SKUs SYS-E100-9AP-IA

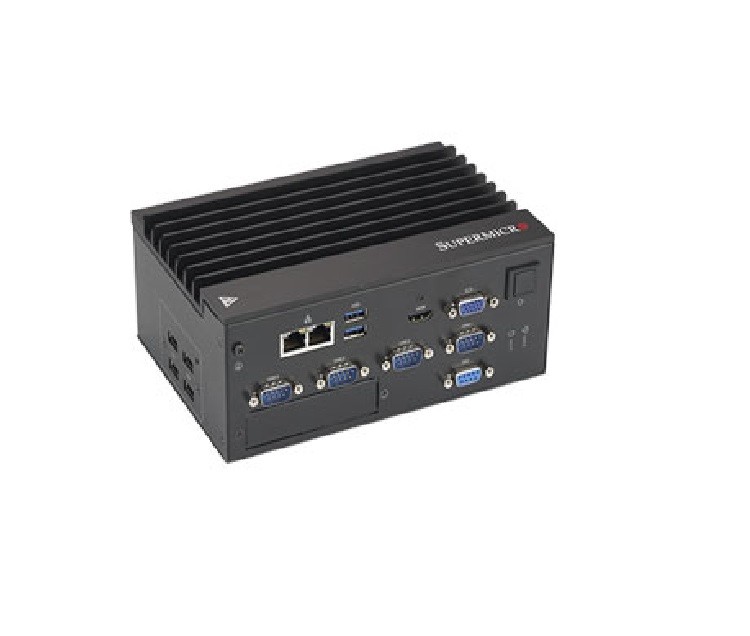

• SuperServer E100-9AP-IA (Black)

Motherboard
Super A2SAN-E Processor/Cache CPU

• Intel® Atom® Processor E3940
• FCBGA 1296
• System-on-Chip
• CPU TDP support 9W

System Memory Memory Capacity

• 1x 204-pin DDR3L SO-DIMM socket

Memory Type

• 1866/1600/1333MHz Unbuffered non-ECC SO-DIMM DDR3L, 204-pin gold-plated DIMMs

DIMM Sizes

• 8GB, 4GB, 2GB

Memory Voltage

• 1.35 V

On-Board Devices SATA

• SoC controller for 1 SATA3 (6Gbps)

Network Controllers

• Dual GbE LAN with Intel i210-AT controller

Input / Output LAN

• 2 RJ45 Gigabit Ethernet LAN ports

USB

• 2 USB 3.0 (front)
• 4 USB 2.0 (side)

COM Port

• 2 RS232, 2 RS232/422/485, RS-485 supports auto flow control
• 1 DIO via DB9

Video

• 1 VGA, 1 HDMI

Chassis Form Factor

• 3.5" SBC

Model

• CSE-E101-IA

Dimensions Width

• 7.64" (194mm) / 9.5" (241mm) - pkg.

Height

• 3.15" (80mm) / 5.5" (140mm) - pkg.

Depth

• 4.96" (126mm) / 8" (203mm) - pkg.

Weight

• Gross Weight: 3.97 lbs (1.8 kg)
• Net Weight: 3.31 lbs (1.5 kg)

Available Colors

• Black

Front Panel Buttons

• Power On/Off button

LEDs

• Power LED and Hard drive activity LED

Expansion Slots PCI-Express

• 1 Full size Mini-PCIe (USB 2.0/PCIe)
• 1 M.2 2280 B-Key for SATA or PCIe SSD (2242 can be supported with bracket)

Drive Bays Internal

• 1 SATA SSD (SATA3)

System Cooling Fans

• Fan-less design

Power Supply 12V DC 60W power adapter with Terminal Block System BIOS BIOS Type

• 64Mb SPI Flash EEPROM with AMI UEFI BIOS

BIOS Features

• Plug and Play (PnP)
• DMI 2.3
• ACPI 5.0
• USB Keyboard support
• SMBIOS 2.7.1
• UEFI

Management Software

• SuperDoctor® 5
• Watch Dog

Power Configurations

• ACPI Power Management
• ATX Power connector
• Control of power-on for recovery from AC power loss
• CPU thermal trip support for processor protection

Operating Environment / Compliance RoHS

• RoHS Compliant

Environmental Spec.

• Operating Temperature:
  -20°C to 60°C (-4°F to 140°F)
• Non-operating Temperature:
  -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity:
  8% to 90% (non-condensing)
• Non-operating Relative Humidity:
  5% to 95% (non-condensing)

Operational Vibration

• IEC 60068-2-64, 5 Grms, randon, 5-500 Hz, 1hr/axis

Operational Shock

• IEC 60068-2-27, 30G, half sine, 11ms

See Parts List Parts List - (Items Included) Part Number Qty Description Motherboard / Chassis MBD-A2SAN-E
CSE-E101-IA 1
1 Super A2SAN-E Motherboard
Fanless 3.5" SBC embedded chassis Power Adapter MCP-250-10125-0N 1 60W 12V 3.33A, AC to DC power adapter w/ terminal block
