Integrated Board A2SDi-TP8F
View: | Rackmount Kit | Key Features
- Embedded Networking Applications
- Network Security Appliance
- FireWall Applications
- Virtualization Server

1. Intel® Atom® processor C3858,
Single socket FCBGA 1310 2. System on Chip 3. 2 fixed 2.5" drive bays (Top drive bay
area is shared with AOC. Please
remove riser card when installing
2.5" drive on the top.) 4. Up to 64GB Unbuffered ECC/non-ECC
SO-DIMM, up to DDR4-2400MHz,
in 4 DIMM slots 5. 1 PCI-E 3.0 x4 AOC slot (LP) 6. 2x 10GBase-T, 2x 10G SFP+, and
4x 1GbE LAN ports 7. VGA via BMC, 2 USB 3.0 ports 8. 2x 40mm chassis fans, passive
CPU heat sink 9. 84W DC power adapter


Drivers & Utilities BIOS IPMI Tested Memory OS Certification Matrix Drive Options
Product SKUs SYS-E300-9A

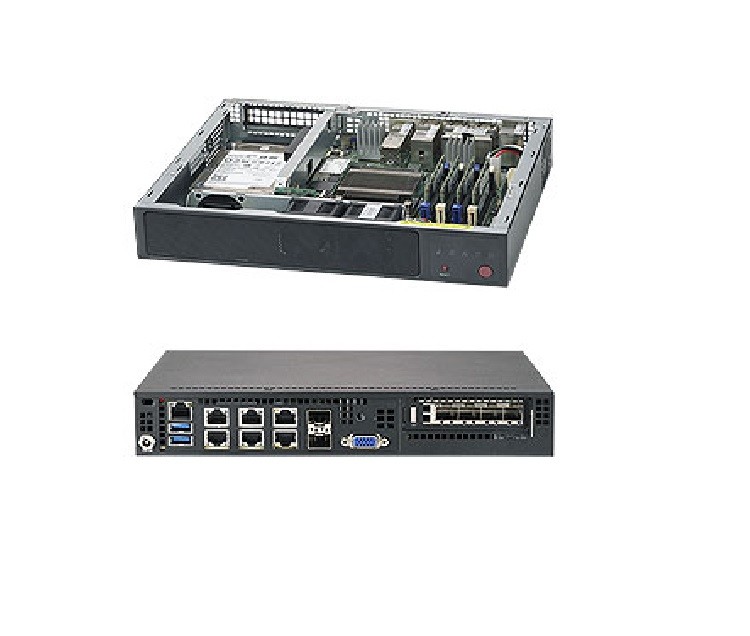

• SuperServer E300-9A (Black)

Motherboard
Super A2SDi-TP8F Processor/Cache CPU

• Intel® Atom® processor C3858
• FCBGA 1310
• CPU TDP support 25W

System Memory Memory Capacity

• Up to 64GB Unbuffered ECC/non-ECC SO-DIMM, DDR4-2400MHz, in 4 DIMM slots

Memory Type

• 16GB, 8GB, 4GB

Memory Voltage

• 1.2 V

Error Detection

• Corrects single-bit errors

On-Board Devices Chipset

• System on Chip

SATA

• SoC controller for 4 SATA3 (6Gbps) ports

Network Controllers

• Quad LAN (2 10GBase-T, 2 10Gb SFP+) via Intel® C3000 SoC
• Quad Gigabit Ethernet LAN via Intel® i350-AM4

Graphics

• Aspeed AST2400

Input / Output SATA

• 2 SATA3 (6Gbps) ports

LAN

• 4 RJ45 Gigabit Ethernet LAN ports
• 2 10G SFP+ LAN ports
• 2 RJ45 10GBase-T ports
• 1 RJ45 Dedicated IPMI LAN port

USB

• 2 USB 3.0 ports (rear)

Display

• 1 VGA port

DOM

• 1 SuperDOM (Disk on Module) power connector

TPM

• TPM 2.0 header

Chassis Form Factor

• Mini-1U

Model

• CSE-E300

Dimensions Width

• 10" (254mm) / 15" (381mm) - pkg.

Height

• 1.7" (43mm) / 10.87" (276mm) - pkg.

Depth

• 8.9" (226mm) / 5.59" (142mm) - pkg.

Weight

• Gross Weight: 7.5 lbs (3.4 kg)
• Net Weight: 3.45 lbs (1.56 kg)

Available Colors

• Black

Front Panel Buttons

• Power On/Off button

LEDs

• Power LED (Hard drive activity LED)

Expansion Slots M.2

• Interface: PCI-E 3.0 x4 or SATA3
• Form Factor: M Key 2242/2280

Drive Bays Internal

• 2 fixed 2.5" drive bays, one with bracket, one on base mount (1 fixed 2.5" drive bay when AOC area is occupied)

System Cooling Fans

• 2x 40mm chassis fans

Power Supply 84W DC power adapter System BIOS BIOS Type

• 128Mb SPI Flash with AMI BIOS

BIOS Features

• PCI 3.0
• ACPI 5.0
• USB Keyboard support
• Hardware BIOS Virus protection
• SMBIOS 2.8
• UEFI 2.4
• RTC (Real Time Clock) Wakeup

Management Software

• IPMI 2.0
• KVM with dedicated LAN
• NMI
• SuperDoctor® 5
• Watch Dog

Power Configurations

• ACPI / APM Power Management
• CPU Fan auto-off in sleep mode
• Power-on mode for AC power recovery

Fan

• Fans with tachometer status monitoring
• Status monitor for speed control
• Low noise fan speed control
• Pulse Width Modulated (PWM) fan connectors

Operating Environment / Compliance RoHS

• RoHS Compliant

Environmental Spec.

• Operating Temperature:
  0°C to 40°C (32°F to 104°F)
• Non-operating Temperature:
  -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity:
  8% to 90% (non-condensing)
• Non-operating Relative Humidity:
  5% to 95% (non-condensing)

See Parts List Parts List - (Items Included) Part Number Qty Description Motherboard / Chassis MBD-A2SDi-TP8F
CSE-E300 1
1 Super A2SDi-TP8F Motherboard
Embedded Server BOX for Mini-ITX 1U w/o PWS FAN 1 FAN-0065L4 1 4028mm 13K RPM 4-PIN PWM FAN for SC813MF, SC113M Power Supply MCP-250-10122-0N 1 84W Lockable power adapter with US power cord, RoHS Riser Card RSC-RR1U-E8 1 RSC-RR1U-E8 (Rev 4.00) Cooling Fan FAN-0065L4 2 40x28mm 13K RPM 4-PIN PWM FAN
