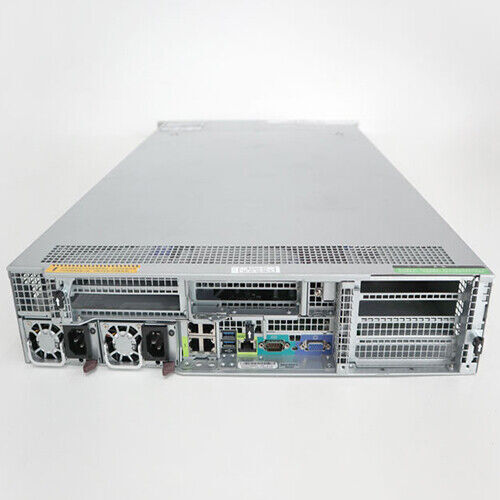

Product Description AS-2023US-TR4

Product condition: Used

Front panel: no

HDD backplane: 12*3.5 inch SAS/SSD/SATA/NVME U.2 (only eight of the 12 disks support SAS and RAID, the remaining four disks only support U.2 or SATA/SSD and can not be grouped into arrays)

Hard drive bays: default, fully equipped

Cooling fan: default, fully equipped

Heat sink: default, 2 full

Processor: no

Memory: no

Motherboard: Default with

RAID Controller: default, 9364-8i array card controller

Riser card: default, support 3 double-wide GPU

Network: Integrated 4-port Gigabit network card I350-T4

Remote console: default with

PSU: default, 1000W power supply 2

Rack rails: no

Power cord: default, complimentary according to the number of power supplies

AS -2023US-TR4

• A+ Server class="desc">
• Dual AMD EPYC™ 7001/7002* series Processors
  (* Board revision 2.x required)
• Socket SP3
• Supports CPU cTDP up to 280W**

Cores

• Up to 32 Cores (Board revision 1.x + 7001 Processors)
• Up to 64 Cores (Board revision 2.x + 7002 Processors)

Chipset

• System on Chip (SoC)

Note** Certain CPUs with high TDP higher than 225W may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization

System Memory
Memory Capacity

• 32 DIMM slots
• Supports up to 4TB Registered ECC DDR4 2666MHz SDRAM (7001 Processors)
• Supports up to 8TB Registered ECC DDR4 3200MHz SDRAM (Board revision 2.x required + 7002 Processors)
• 8-channel memory bus

Memory Type

• DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs (7001 Processors)
• DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs (Board revision 2.x required + 7002 Processors)

DIMM Sizes

• 4GB, 8GB, 16GB, 32GB, 64GB, 128GB, 256GB*
  (* Board revision 2.x required + 7002 Processors)

Memory Voltage

• 1.2V

Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)

On-Board Devices
SATA

• SATA3 (6 Gbps)

IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2500 BMC

Network Controllers

• Provided via Ultra Riser Card

VGA

• ASPEED AST2500 BMC

Expansion Slots
2U

• 1 PCI-E 3.0 x16 slot (FH, 10.5" L)
• 5 PCI-E 3.0 x8 slots (FH, 9.5" L)
• 1 PCI-E 3.0 x8 slot (LP)
• 1 PCI-E 3.0 x8 (internal proprietary LP slot)

(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)

Input / Output
SATA

• 12 SATA3 (6 Gbps) ports

LAN

• Quad Gigabit LAN ports
• 1 RJ45 Dedicated IPMI LAN port

USB

• 3 USB 3.0 ports (2 rear + 1 Type A)

VGA

• 1 VGA port

SAS

• 12 SAS3 ports support via optional Add-on Card

NVMe

• 4 NVMe support with optional cables

Others

• 1 COM port (rear)
• 2 SATA DOM power connector
• TPM 1.2 header

System BIOS
BIOS Type

• AMI 128Mb SPI Flash EEPROM

BIOS Features

• Plug and Play (PnP)
• DMI 2.3
• PCI 2.2
• ACPI 5.1
• USB Keyboard Support
• SMBIOS 3.1.1

Chassis
Form Factor

• 2U

Model

• Height
  • 3.5" (89mm)
  Width
  • 17.2" (437mm)
  Depth
  • 28.46" (723mm)
  Package
  • 9.96" (H) 24.60" (W) 45.43" (D)
  Weight
  • Net Weight: 36 lbs (16.4 kg)
  • Gross Weight: 72 lbs (32.7 kg)


  Front Panel
  Buttons
  • Power On/Off button
  • System Reset button
  LEDs
  • Power LED
  • Hard drive activity LED
  • 2x Network activity LEDs
  • System Overheat LED / Fan fail LED /
    UID LED


  Drive Bays
  Hot-swap
  • 12 hot-swap 3.5" Drive Bays:
    • 12 SATA3 by default
    • Optional Drive Support:
      8 SAS3 + 4 SAS3/NVMe
  • 2 rear hot-swap 2.5" drive Backplane
    • Supports 12 SATA3 or 8 SATA3 + 4 NVMe or 12 SAS3 HDD

    System Cooling
    Fans
    • 4 heavy-duty PWM fans with optimal fan speed control


    Power Supply1600W Redundant Power Supplies with PMBusTotal Output Power
    • 73.5 x 40 x 203 mm
    Input
    • 100-127Vac / 13 - 9A / 50-60Hz
    • 200-240Vac / 10 - 8A / 50-60Hz
    +12V
    • Max: 83.3A / Min: 0A (100-127Vac)
    • Max: 133A / Min: 0A (200-240Vac)
    12Vsb
    • Max: 2.1A / Min: 0A
    Output Type
    • 25 Pairs Gold Finger Connector
    Certification Titanium Level
    [ Test Report ]

    PC Health Monitoring
    CPU
    • Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT
    • CPU switching voltage regulator
    FAN
    • Up to 8-fan status tachometer monitoring
    • Up to eight 4-pin fan headers
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • CPU Thermal Trip Support
    • Thermal control for 8x Fan connectors
    • I2C Temperature Sensing Logic
    LED
    • CPU / System Overheat LED
    Other Features
    • Chassis Intrusion Detection
    • Chassis Intrusion Environment / Compliance

      RoHS

      • RoHS Compliant

      Environmental Spec.
      • Operating Temperature:
        10°C to 35°C (50°F to 95°F)
      • Non-operating Temperature:
        -40°C to 70°C (-40°F to 158°F)
      • Operating Relative Humidity:
        8% to 90% (non-condensing)
      • Non-operating Relative Humidity:
        5% to 95% (non-condensing)
