Product Description

Please note: The buyer is responsible for customs clearance and payment of duties.

If you have other configuration needs, you can contact us and we will customize it for you.

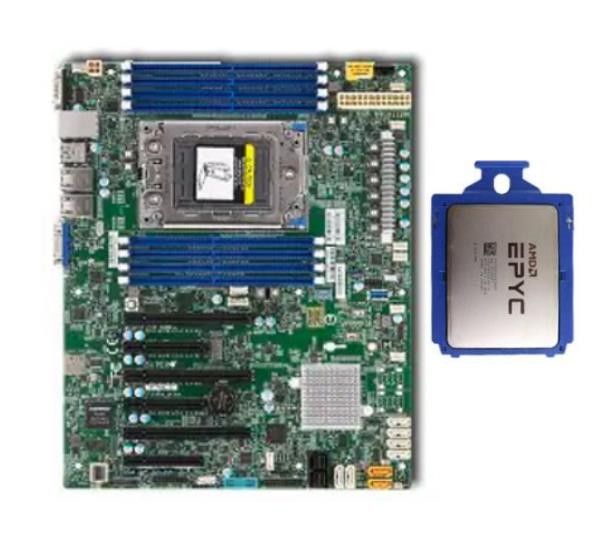

Supermicro H11SSL-C Mainboard With AMD EPYC 7401P Processors 2.8GHz CPU 170W CPU

Package include:

1X supermicroH11SSL-C mainboard

1 x Amd epyc 7401pcpu

CPU

AMD EPYC™ 7401PSpecifications# of CPU Cores24# of Threads48Base Clock2.0GHzMax Boost ClockUp to 3.0GHzAll Core Boost Speed2.8GHzTotal L3 Cache64MBPackageSP3Socket Count1PPCI Express® VersionPCIe 3.0 x128Default TDP / TDP155/170WSystem MemorySystem Memory Specification2400MHz/2666MHzSystem Memory TypeDDR4Memory Channels8Per Socket Mem BW153.6 GB/s/170.6 GB/sKey FeaturesWorkload AffinityERM/SCM/CRM appsValue data mgmt (NR/RDBMS)VDIVM DensityFoundationProduct FamilyAMD EPYC™Product LineAMD EPYC™ 7001 SeriesPlatformServerOPN TrayPS740PBEVHCAFOPN PIBPS740PBEAFWOF

Motherboard

roduct SKUs
MBD-H11SSL-C

• H11SSL-C (Bulk Pack)

MBD-H11SSL-C-O

• H11SSL-C (Retail Pack)

Physical Stats
Form Factor

• ATX

Dimensions

• 12" x 9.6" (30.5cm x class="desc" style="box-sizing: border-box; margin: 0px; padding: 0px; font-weight: bold; color: rgb(93, 139, 96) !important;">
• Single AMD EPYC™ 7001/7002*series Processor (*Board revision 2.x required)
• Socket SP3

Cores

• Up to 32 Cores
• Up to 64 Cores (Board revision 2.x required)

Chipset

• System on Chip

System Memory
Memory Capacity

• 8 DIMM slots
• Supports up to 1TB Registered ECC DDR4 2666MHz SDRAM in 8 DIMMs
• Supports up to 2TB Registered ECC DDR4 3200MHz SDRAM (Board revision 2.x required)
• 8-channel memory bus

Memory Type

• DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs
• DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs (Board revision 2.x required)

DIMM Sizes

• 8GB, 16GB, 32GB, 64GB, 128GB, 256GB*(*Board revision 2.x required)

Memory Voltage

• 1.2V

Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)

On-Board Devices
SATA

• SATA3 (6 Gbps)

SAS

• Broadcom 3008 SAS3 (12 Gbps) controller
• RAID 0, 1, 10

IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2500 BMC

Network Controllers

• 2 1GbE LAN via Intel® I210
• 1 Realtek RTL8211E PHY (dedicated IPMI)

VGA

• ASPEED AST2500 BMC

Input / Output
SAS

• 8 SAS3 (12 Gbps) ports

SATA

• 8 SATA3 (6 Gbps) ports

LAN

• 2 RJ45 Gigabit Ethernet LAN ports
• 1 RJ45 Dedicated IPMI LAN port

USB

• 5 USB 3.0 ports
  (2 rear + 2 via header + 1 Type A)
• 4 USB 2.0 ports (2 rear + 2 via header)

VGA

• 1 VGA port

Others

• 1 COM port (rear)
• 2 SATA DOM power connector
• 1 TPM 2.0 header

Expansion Slots
PCI-Express

• 3 PCI-E 3.0 x8
• 3 PCI-E 3.0 x16

M.2

• Interface: PCI-E 3.0 x4
• Form factor: 2280, 22110
• Key: M-key

Chassis ( Optimized for H11SSL-C )
1U

• SC813MFTQC-350CB2
• SC213AC-R1K23LPB
• SC825TQC-R740LPB
• SC745BAC-R1K28B2
• AS -2013S-C0R

System BIOS
BIOS Type

• AMI 128Mb SPI Flash EEPROM

BIOS Features

• Plug and Play (PnP)
• DMI 2.3
• PCI 2.2
• ACPI 5.1
• USB Keyboard Support
• SMBIOS class="desc" style="box-sizing: border-box; margin: 0px; padding: 0px; font-weight: bold; color: rgb(93, 139, 96) !important;">
• SuperDoctor 5
• Watch Dog
• NMI
• SUM
• IPMI 2.0, KVM with dedicated LAN

Power Configurations

• ACPI Power Management
• Power-on mode control for AC power loss recovery

PC Health Monitoring
CPU

• Monitors CPU Core Voltages, +1.8V, +3.3V, +5V, +5V standby, +3.3V standby
• CPU switching voltage regulator
• Supports system management utility
• VBAT

FAN

• Up to 7-fan status tachometer monitoring
• Up to 7 4-pin fan headers
• Dual Cooling Zone
• Status monitor for speed control
• Pulse Width Modulated (PWM) fan connectors

Temperature

• Monitoring for CPU and chassis environment
• CPU Thermal Trip Support
• Thermal control for 7x Fan connectors
• I²C Temperature Sensing Logic

LED

• CPU / System Overheat LED

Other Features

• Chassis Intrusion Detection
• Chassis Intrusion Header
• Operating Temperature:
  10°C to 35°C (50°F to 95°F)
• Non-operating Temperature:
  -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity:
  8% to 90% (non-condensing)
• Non-operating Relative Humidity:
  5% to 95% style="text-wrap: wrap;">
