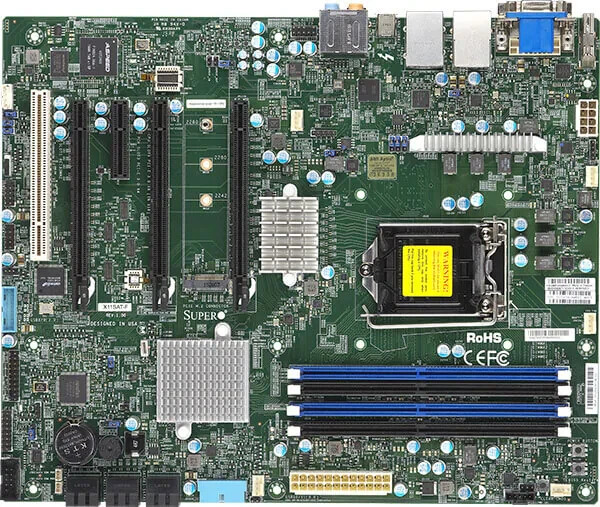

Supermicro MBD-X11SAT-F-BMotherboard NEW, IN STOCK, 5 Year Warranty
Product SKUsMBD-X11SAT-FPhysical StatsForm Factor

• ATX

Dimension

• 12" x 9.6" (30.48cm x 24.38cm)

ProcessorCPU

• Intel® Xeon® processor E3-1200 v6/v5, Intel® 6th/7th Generation Core™ i3 series, Intel® 6th/7th Generation Core™ i5 series, Intel® 6th/7th Generation Core™ i7 series
• Single Socket Socket H4 (LGA-1151) supported, CPU TDP supports Up to 95W TDP

System MemoryMemory Capacity

• 4 DIMM slots
• Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2400MT/s

Memory Type

• 2400/2133/1866/1600 MT/s SDRAM 72-bit, 288-pin gold-plated DIMMs

DIMM Sizes

• 4GB, 8GB, 16GB

Memory Voltage

• 1.2V

Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)

On-Board DevicesChipset

• Intel® C236

SATA

• Intel® C236 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10

Audio

• ALC 888S HD Audio

Graphics

• 1 ASPEED AST2400 BMC port(s)

Network Controllers

• Single LAN with Intel® Ethernet Controller I210-AT, + Single Intel Ethernet PHY i219LM

Input / OutputUSB

• 4 USB 2.0 port(s) (2 via header; 2 rear)
• 6 USB 3.1 Gen1 port(s) (2 rear type A; 4 via header)
• 1 USB 3.1 Gen2 port(s) (1 rear type C)

Video Output

• 1 VGA port(s), 1 DP (DisplayPort) port(s), 1 HDMI port(s), 1 DVI - D port(s)

Serial Port

• 1 COM Port(s) (1 header)

TPM

• 1 TPM Header

Expansion SlotsPCIe

• 3 PCIe 3.0 x16,
• 1 PCIe 3.0 x1
• 1 - 5V PCI 32bit
• ***3 PCIex16 slots are running at 16/NA/16 or 16/8/8.*** ***PCIe x1 is in x4 slot***

M.2

• M.2 Interface: 1 PCIe 3.0 x4
• Form Factor: 2242/2260/2280
• Key: M-Key

System BIOSBIOS Type

• AMI UEFI

BIOS Features

• Plug and Play (PnP)
• DMI 2.3
• PCI 3.0
• ACPI 5.0
• USB Keyboard support
• Hardware BIOS Virus protection
• SMBIOS 3.0
• UEFI 2.3.1
• RTC (Real Time Clock) Wakeup

ManagementSoftware

• SuperDoctor® 5,SPM,IPMI2.0, Watchdog

Power Configurations

• Power-on mode for AC power recovery, ACPI Power Management, Keyboard Wakeup from Soft-Off, CPU Fan auto-off in sleep mode

PC Health MonitoringVoltage

• VBAT, Monitors CPU voltages, Chassis intrusion header, +5V standby, +5V, +3.3V, +12V

LED

• UID/Remote UID
• Suspend static indicator LED
• CPU / System Overheat LED

Temperature

• CPU thermal trip support
• Thermal Monitor 2 (TM2) support
• PECI
• I2C temperature sensing logic

FAN

• 5x 4-pin fan headers (up to 5 fans)
• Fan speed control
• Overheat LED indication

Other Features

• WOL, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ATX Power connector, 8-pin 12v DC power connector, Intel Smart Response Technology

Operating EnvironmentOperating Temperature Range

• 0°C - 50°C (32°F - 122°F)

Non-Operating Temperature Range

• -20°C - 60°C (-4°F - 140°F)
