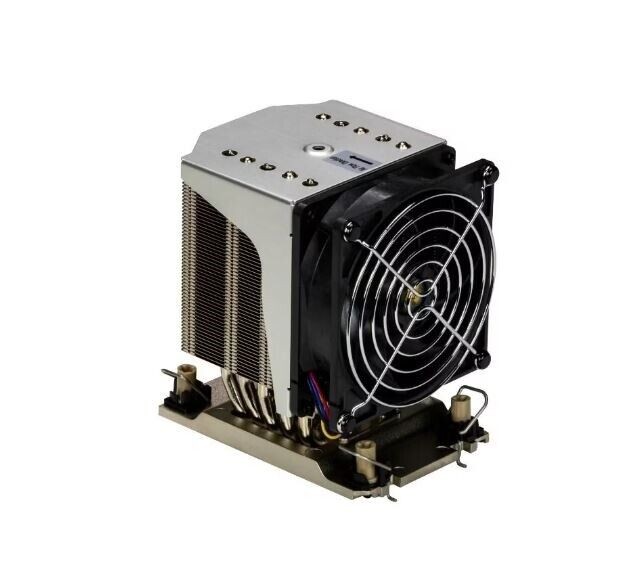

Upgrade your server with the Supermicro SNK-P0090AP4 AC 4U Active CPU Heat Sink, designed for X13 Gen systems with 4th Gen Intel Xeon Scalable Processors. This high-performance heat sink ensures optimal cooling for Uni, Dual, or Multi Processor setups, supporting CPU TDPs up to 350 Watts.

Featuring a reliable 4-pin PWM fan operating at 4,700 RPM, it minimizes noise to just 43 dB(A). Fully tested and validated by Supermicro for superior quality, it is RoHS and REACH compliant, ensuring environmental safety.

Marketing Information
This CPU heat sink is designed for certain Supermicro X13 generation systems equipped with 4th Generation Intel Xeon Scalable Processors. The heat sink has been fully tested and validated by Supermicro to ensure the best quality and cooling performance.Detail Specifications
Brand: SupermicroServer Form Factor
4UCooling Type
ActiveCPU Configuration
Uni Processor, Dual Processor, Multi ProcessorSupported CPU SKU
4rd Gen Intel Xeon Scalable ProcessorsSupported CPU Socket
LGA4677-1/E1Supported CPU TDP
Up to 350 WattsAttached Cooling Fan
Speed Control: 4-pin PWM
Rated Voltage: 12.0 VDC
Rated Speed: 4,700 RPM
Acoustic Noise: 43 dB(A) at Rated Speed
Fan Dimensions: 92L x 92H x 25D (mm)
Position: Front Side
MTBF/MTTF: 121,457 HoursProduct Environmental Compliance
RoHS and REACH compliant, details available upon request
