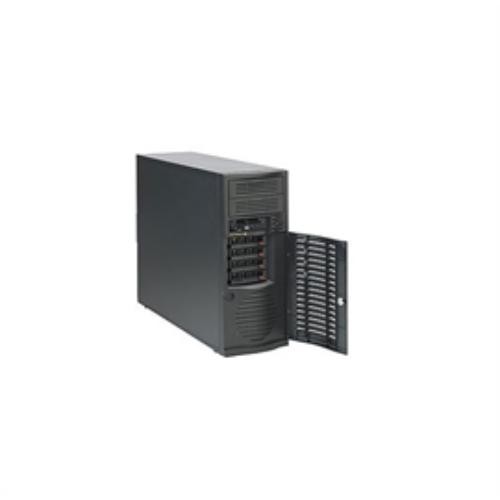

Supermicro SuperChassis CSE-733TQ-668B Server Case Supermicro SuperChassis CSE-733TQ-668B Server Case

International Customers: All electronic products are packaged for sale in the US with US voltage.

This item is brand-new, factory sealed.

1. 4x 3.5" SAS/SATA Backplane for Hot-Swappable Drives (Support SGPIO)

2. Front HDD Door Lock

3. Front I/O Ports: 2x USB 2.0

4. 1x 12cm Rear (4000 rpm) PWM Fan & 1x 9cm Front (4200 rpm) PWM Fan

5. Mid-Tower Chassis Supports max. Motherboard, Sizes ? E-ATX 12" x 13"/ATX/Micro ATX

6. 668W Platinum Level Certified High-Efficiency Power Supply

7. 2x 5.25" External HDD Drive Bays & 4x 3.5" HDD Drive Bays
Form Factor
Mid-tower chassis - supports for maximum motherboard sizes: 12 inch x 13 inch E-ATX and ATX
Processor Support
Dual and Single Intel and AMD processors
Available Color
Black
Expansion Slots
7 full-height and full-length expansion slot(s)
Drive Bays
4 x 3.5 inch hot-swap SAS/SATA drive bay with SGPIO
Backplane
4x3.5 inch SAS2/SATA3 backplane w/SES-II
Peripheral Drives
2 x standard 5.25 inch drive bay
1 x 3.5 inch internal fixed drive bay
Front Panel
Buttons
Power On/Off button
System Reset Button
LEDs
1 Network Activity LEDs
HDD activity LED
Power LED
System Overheat LED
Ports
2x USB 2.0 Port(s)
Systems Cooling
Fans
1 x 12cm rear exhaust fan(s)
1 x 9cm hot-swap cooling fan(s)
Operating Environment (System)
Operating Temperature Range
5oC - 35oC (41oF - 95oF)
Non-Operating Temperature Range
-40oC - 70oC (-40oF - 158oF)
Operating Relative Humidity Range
8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
5% - 95% (non-condensing)
Power Supply
PS2 668W Multi-output power supply 80PLUS Platinum
Power Efficiency
92%
Total Output Power and Input
668W with Input 100 - 240Vac
AC Input Frequency
50-60Hz
AC Input Frequency
50-60Hz
AC Input Frequency
50-60Hz
-12V
Max: 0.1A / Min: 0A
+12V
Max: 54A / Min: 0.2A (100Vac - 240Vac)
SpecificationPower DescriptionPower Supply InstalledYesNumber of Power Supplies Installed1Power Supply Wattage668 WPhysical CharacteristicsForm FactorMid-towerWeight (Approximate)38 lbProduct ColorBlackHeight16.8"Color ExpansionsTotal Number of Expansion Slots7Interfaces/PortsFront USBYesTotal Number of USB Ports2BaysNumber of External 5.25" Bays2Number of External 3.5" Bays4Number of Total Expansion Bays7Number of Internal 3.5" Bays1General InformationBrand NameSupermicroProduct TypeServer CaseProduct NameSuperChassis CSE-733TQ-668B Server CaseManufacturerSupermicro Computer, IncManufacturer Part NumberCSE-733TQ-668BProduct ModelCSE-733TQ-668BProduct LineSuperChassisTitleProduct TitleSupermicro SuperChassis CSE-733TQ-668B Server Case (CSE733TQ668B)Technical InformationMotherboard Supported
